ELECTRICAL
4
Armrest Harness 4340548

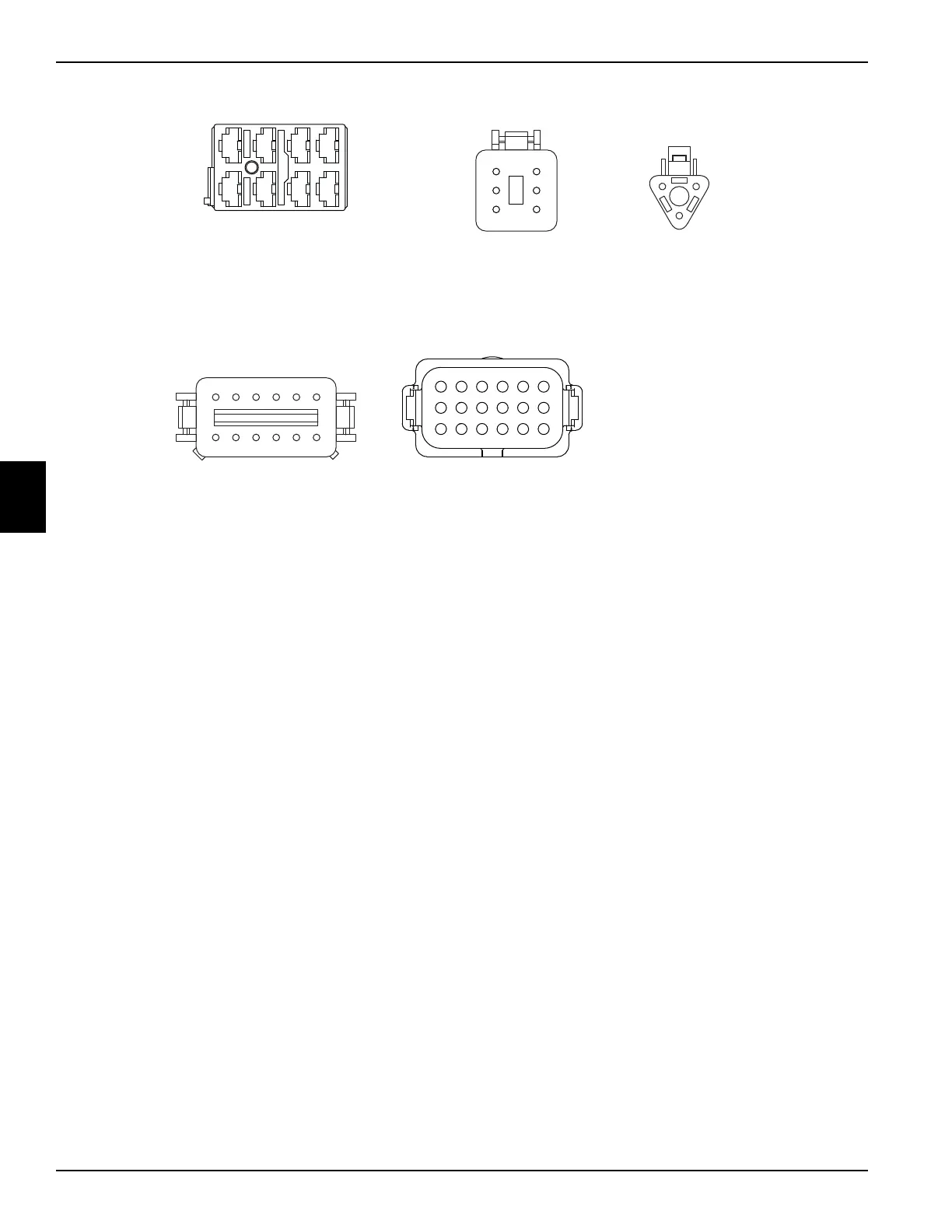

Figure 4-2
Mow Switch (SW2) (Red)
Parking Brake Switch (SW5) (Orange)
Light Switch (SW6) (Black)
Side Shift Switch (SW9) (White)*
* Not used on this mower
7
8
4
1
5
2
6
3
Ignition Switch (SW1)
Joystick (SW3)
1
2
3
6
5
4
CAN Resistor (R4)
C
BA
Display (U2) Main Harness (J1)
123 456
7 8 9 10 11 12
13 14 15 16 17 18
23456
121110987
Terminal Identification is from open (Not Wire) end of connector
