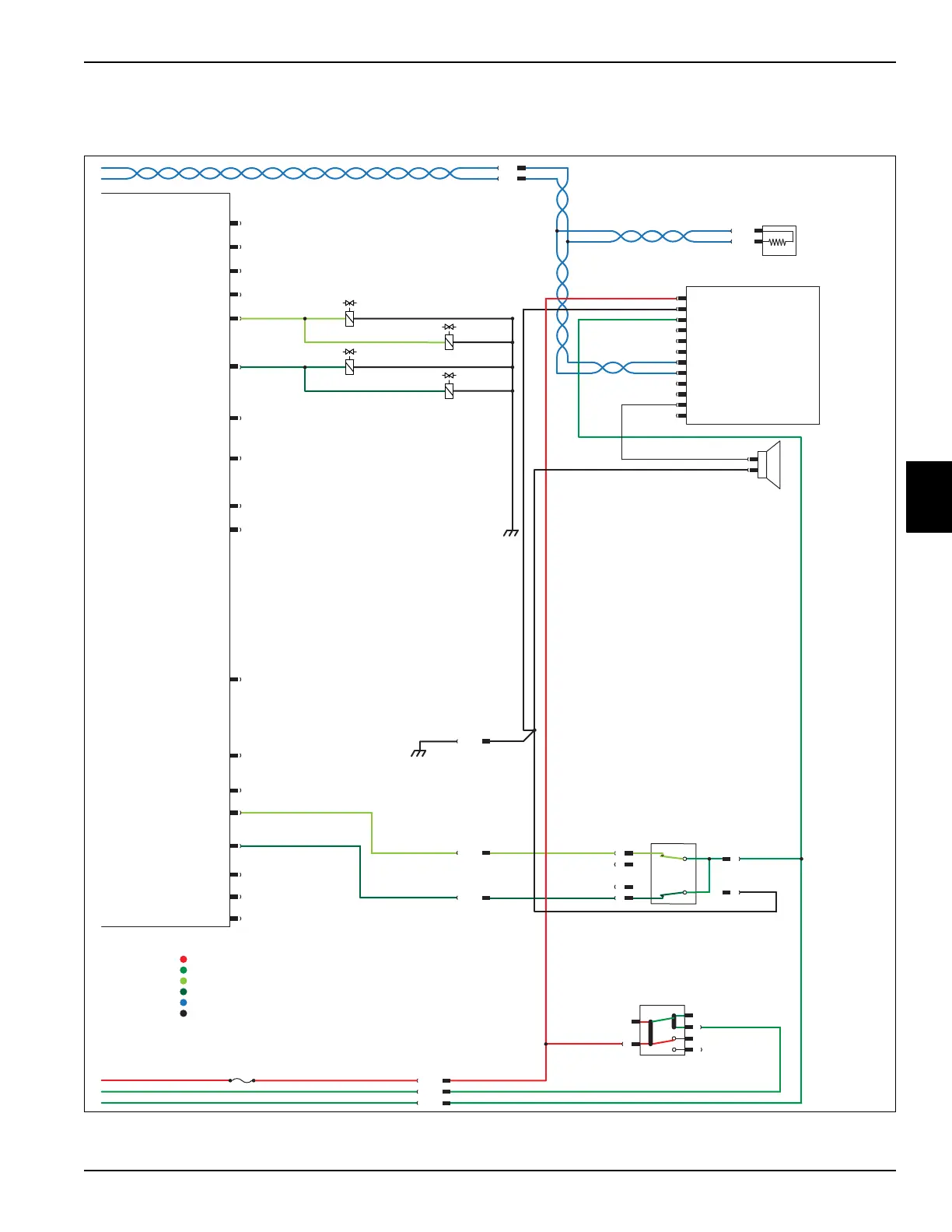

Lift/Lower Circuit Schematic
Continued
Figure 4-17
MAR0019
SW3
SW1
138 - Ye
139 - Gn
138 - Ye
139 - Gn
105 - Rd/Og
106 - Og
1 - Rd
914 - Gn
915 - Ye
914 - Gn
915 - Ye
114 - Gn
115 - Ye
115 - Ye
114 - Gn
115 - Ye
114 - Gn
J1-01
J1-04
J1-03
J1-13
J1-12
20 - Bk
J1-08
106 - Og
1
3
4
5
2
Bu
Bu
6
Bk Bk
Bk
8 - Ye
9 - Gn
8 - Ye
9 - Gn
20 - Bk
4 - Rd/Ye
20 - Bk
6 - Og
114 - Gn
115 - Ye
130 - Bu
5 - Og
6
4
2
5
3
1
4 - Rd/Ye4 - Rd/Ye
105 - Rd/Og
106 - Og
1 - Rd
F4
4 - Rd/Ye
5 - Og
6 - Og
U2
LDU 1-01 +12V
LDU 1-02 Ground
LDU 1-03 Wake-Up
LDU 1-04
LDU 1-05
LDU 1-06
CAN L
CAN H
LDU 1-07
LDU 1-08
LDU 1-09
LDU 1-10
LDU 1-11 Buzzer
LDU 1-12
J1-5
J1-6
J5-B
J5-A
R4
20 - Bk
1
2
U2
130 - Bu
4 - Rd/Ye
Unswitched power circuit
Switched power circuit
Lift circuit
Lower circuit
CAN Circuit
Grounds
20 - Bk
157 - Bu/Wh
SOL5
20 - Bk
108 - Ye
SOL6
20 - Bk
157 - Bu/Wh
SOL13
20 - Bk
108 - Ye
SOL14
U1
MCU 2-01Lower Solenoid
MCU 2-03Lift Solenoid
MCU 2-05Parking Brake
MCU 2-12Weight Transfer
MCU 6-02Left Sideshift
MCU 5-05Right Sideshift
MCU 5-11Lift
MCU 4-09Mow Sw
MCU 4-08Parking Brake
MCU 6-11Oil Pressure
MCU 5-10Lower
MCU 4-11Shift Left
MCU 4-12Shift Right
MCU 4-07Start
MCU 5-02Mow
MCU 5-04Mow 2
MCU 6-03Backlap
MCU 6-05Backlap 2
