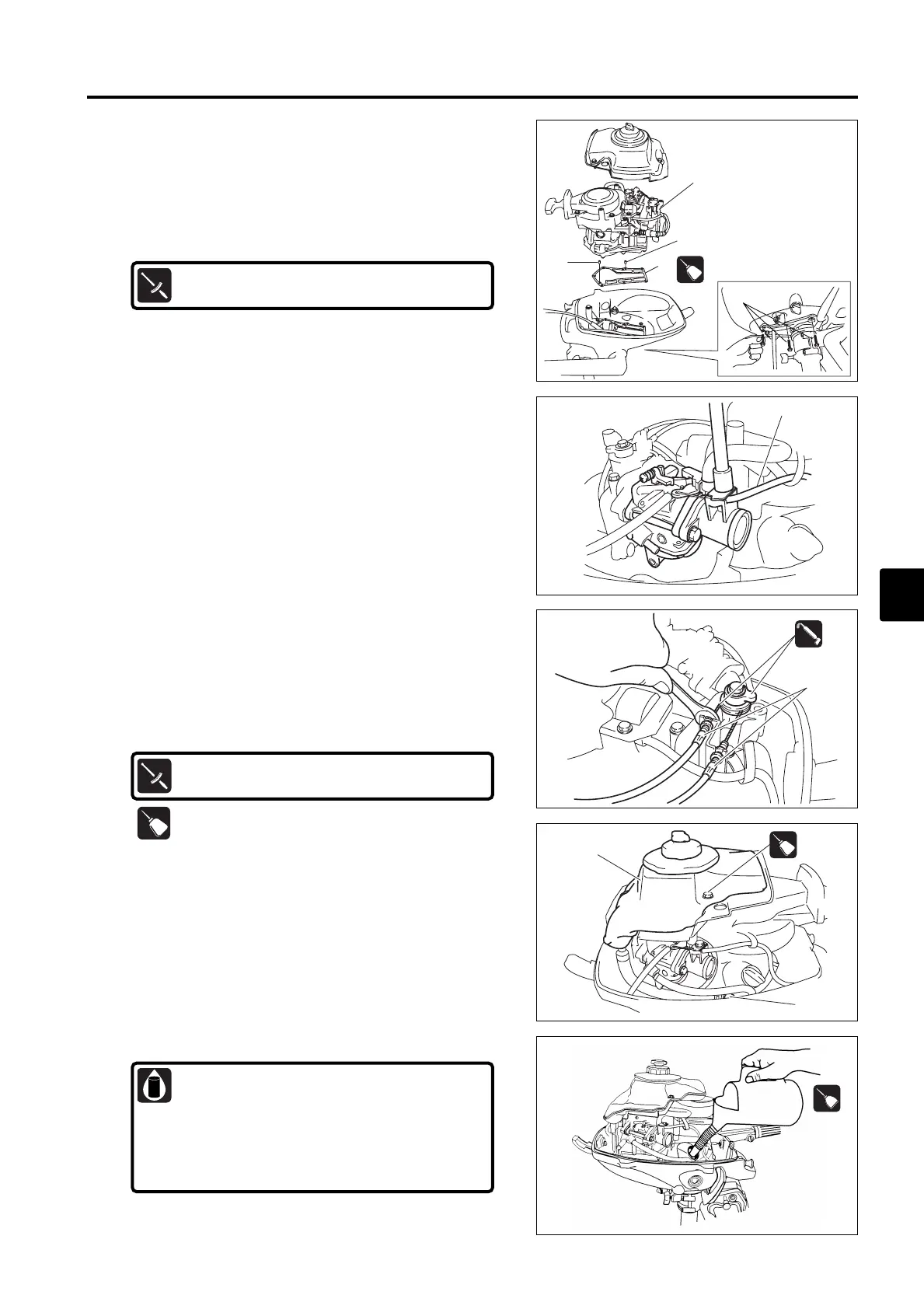

40) Assembly of Power Unit
1. Apply ThreeBond 1107 to both faces of new gasket, and
attach dowel pins 3 (2 pcs.) and gasket 1.
2. Install power unit 3, and tighten bolts 4 (7 pcs.) in two or
three steps to specified torque.
Power Unit Installation Bolt :
6 N · m (4 lb · ft) [0.6 kgf · m]
5. Connect throttle cable 6. Refer to 3.4.7.
6. Apply grease to sliding parts such as rods and cables.
7. Install fuel tank 7 and fuel cock ass'y 8, and tighten the
bolts to specified torque.
3. Connect igniter leads and stop switch leads (two leads
respectively).
4. Connect choke wire 5.
8. Fill with specified amount of engine oil.
3
1
4
2
2
TB
11071107
1107
7
8
TB
13421342
1342
6
GREASE
OBMOBM
OBM
Engine Oil :
4 Stroke Engine Oil
API : SF, SG, SH
SAE : 10W-30, 10W-40
NMMA : FC-W Certified 10W-30
Quantity of Engine Oil : 300 cm
3
(10 fl.oz)
OIL
Fuel Tank Bolts :
6 N · m (4 lb · ft) [0.6 kgf · m]
5
TB
13421342
1342
4st OIL
4st
OIL
