TOHATSU MFS 2 Service Manual

Bracket
7-6
4st 2/2.5/3.5 2007
13-2
13-6
13-6
13-6
13-6
13-7
13-3
13-4
13-5
13-1
13
5
14
15
11
7
8
6
12
4
3
2
9
1
10
TB
13421342
1342
6 N·m (4 lb·ft) [0.6 kgf·m]
6 N·m (4 lb·ft) [0.6 kgf·m]
TB
13421342
1342
TB
13421342
1342
2 N·m (1.5 lb·ft) [0.2 kgf·m]
Cowl

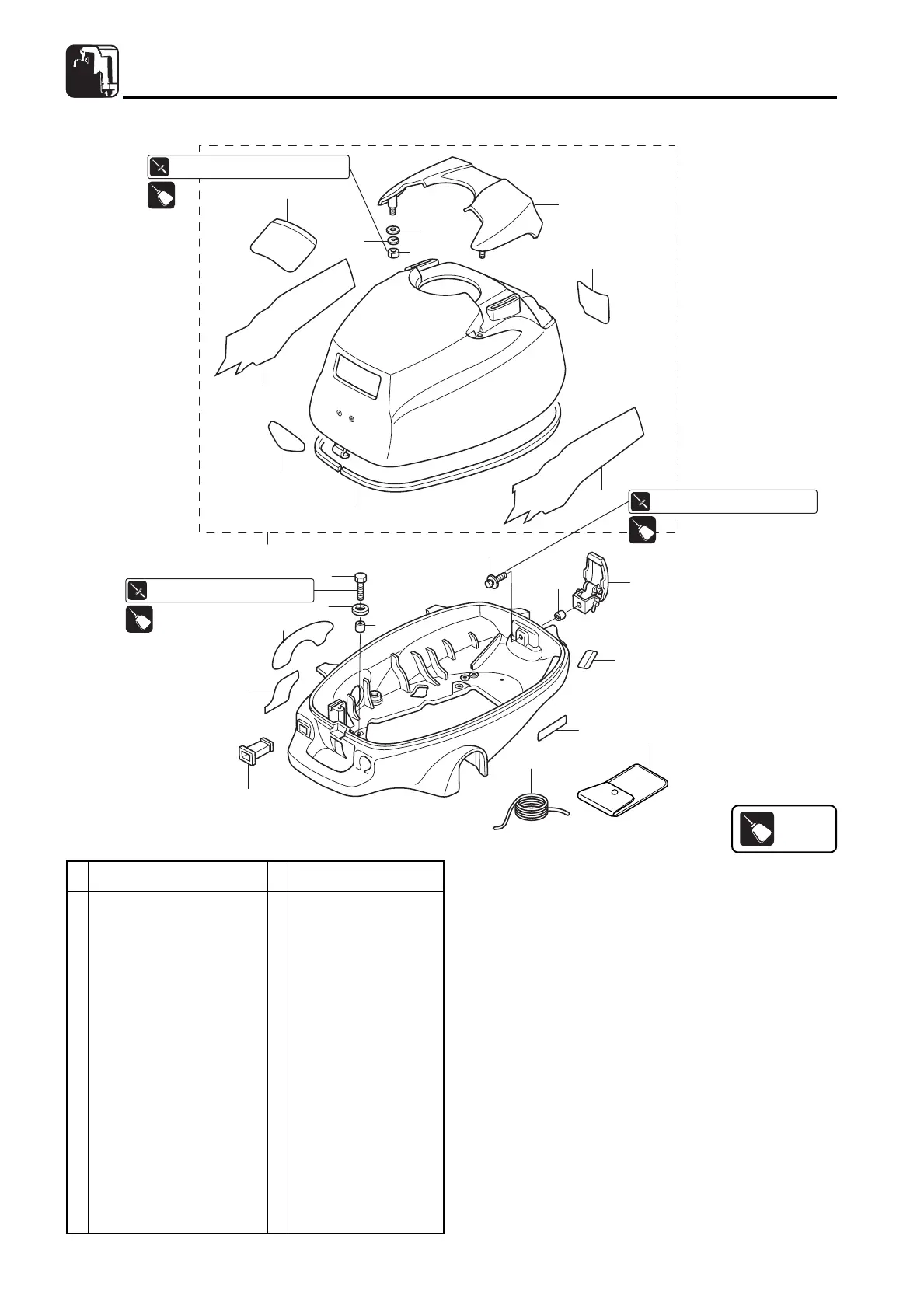

P/L Fig. 15
TB
13421342
1342
1 Bottom Cowl 1
2 Cowl Latch 1
3 Collar, 6.2-9-7.4 1
4 Bolt 1 M6 L=16mm
5 Choke Rod Bushing 1
6 Collar, 6.4-10-4.7 4
7 Bolt 4 M6 L=16mm
8 Washer, 6-16-1.5 4
9
Spark Plug Decal (with Resistance) 1
10 Shift Decal (F-N) 1
11 Fuel Lever Decal 1
12 Storage Decal 1
13 Top Cowl 1
13-1
Top Cowl Seal 1 L=1100
13-2
Tilt Handle 1
13-3
Washer 4
13-4
Spring Washer 4 M6
13-5
Nut 4
13-6
Decal Set 1set
13-7 Caution Decal "A" 1
14 Rope 1 ø4-L=1000
15 Tool 1
Ref.
No.
Part Name Remarks
Q'ty
