TOHATSU MFS 2 Service Manual

5
5-43
4st 2/2.5/3.5 2007

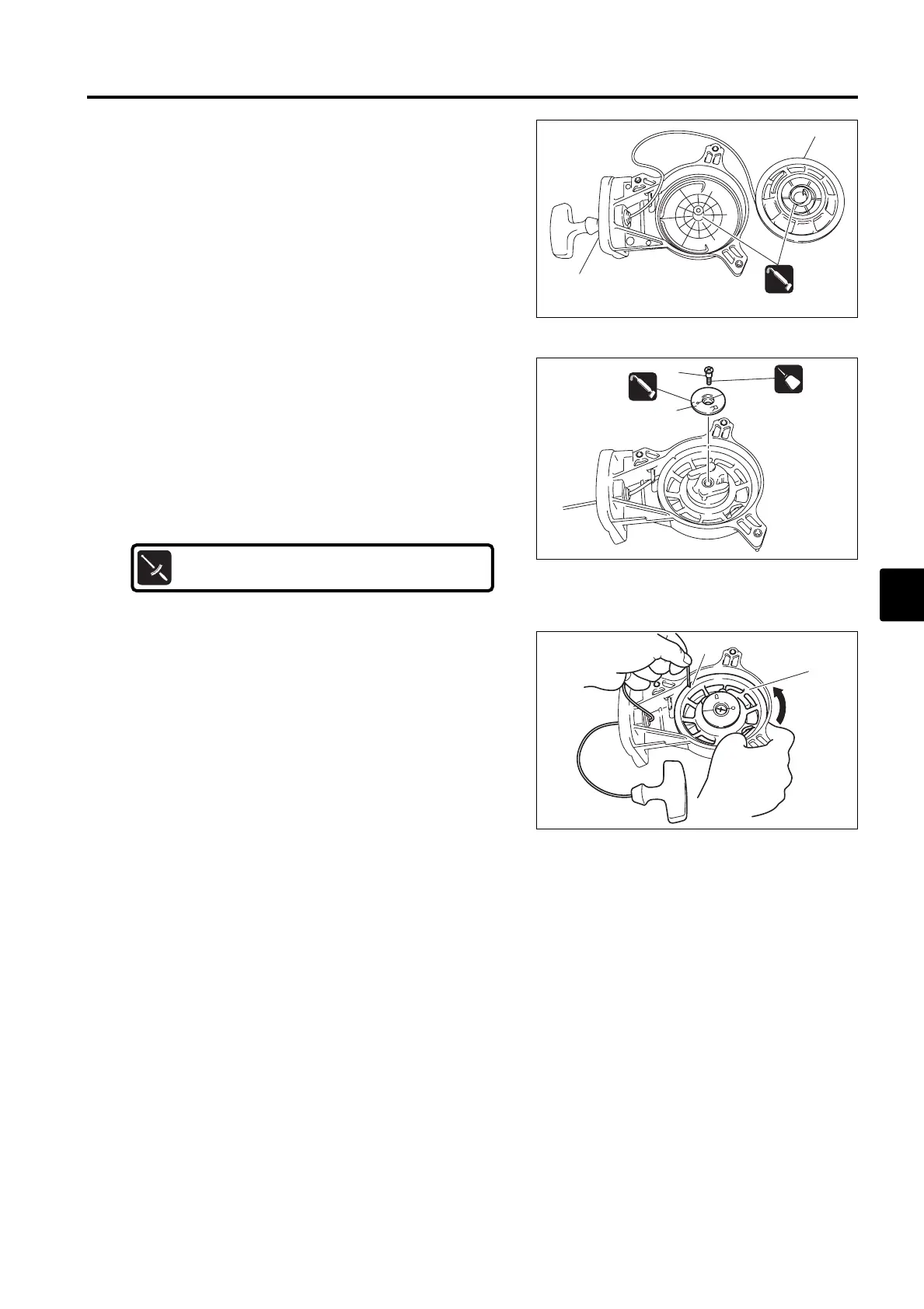

43) Assembly of Recoil Starter
Reverse disassembly procedure to assemble by
taking care of the following matters.
1. When setting starter spring into reel 1, face starter spring
outer edge hook to the right and set it into peripheral cut of
starter case.
2. Run starter rope through rope guide 2 and connect to reel
1.
3. When installing reel 1 into starter case, set projection of
starter case in the internal hook of starter spring.
4. Apply low temperature resistant lithium grease.
· Starter Spring
· Friction Plate
5. Put starter shaft screw and tighten to specified torque.
LIT
GREASE
LIT
2
1
1
a
Starter Shaft Screw :
5 N · m (4 lb · ft) [0.5 kgf · m]
6. When applying tension to starter spring, hook starter rope
into reel groove a, and turn reel 4 to 5 times to direction
to which the reel rotates when pulling out starter rope
(counterclockwise).
2 Rope Guide
TB
13421342
1342
LIT
GREASE
LIT
4
3
3 Friction Plate
4 Starter Shaft Screw
