TOHATSU MFS 2 Service Manual

Ref.
No.
Part Name Remarks
Q'ty
Ref.
No.
Part Name Remarks
Q'ty
12 Bolt 2 M6 L=20mm
13 Stopper Bracket 1
14 Rubber Damper 2
15 Collar, 6.2-9-7.4 2
16 Bolt 2 M6 L=20mm
17 Rubber Hose 1
18 Clip, ø10 2
19 Oil Seal, 20-35-7 1
1 Oil Pan Ass'y 1
1-1 Oil Level Gauge 1
2 Dowel Pin, 6-12 2
3 Drain Bolt 1 M10 - P1.25
4 Washer, 10.2-19-1 1
5 Oil Pan Gasket 1
6 Bolt 8 M6 L=35mm
7 Engine Oil Filler Cap 1
8 O-Ring, 3.1-24.4 1
9 Crank Case Head 1
10 Oil Seal, 10.1-20-7 2
11 O-Ring, 2.4-35.2 1
5
5-5
4st 2/2.5/3.5 2007
2
6
11
19
10
10
9
12
5
13
15
14
14
1
16
8
7
2
3
4
1-1
6
6
17
18
18
6
6
6 N·m (4 lb·ft) [0.6 kgf·m]
18 N·m (13 lb·ft) [1.8 kgf·m]
1 6 N·m ( 4 lb·ft) [0.6 kgf·m]
2 8.8 N·m (6.5 lb·ft) [0.9 kgf·m]
1 6 N·m ( 4 lb·ft) [0.6 kgf·m]
2 8.8 N·m (6.5 lb·ft) [0.9 kgf·m]
6 N·m (4 lb·ft) [0.6 kgf·m]
LIT
GREASE
LIT
LIT
GREASE
LIT
LIT
GREASE
LIT
4st OIL
4st
OIL
4st OIL
4st
OIL
4st OIL
4st
OIL

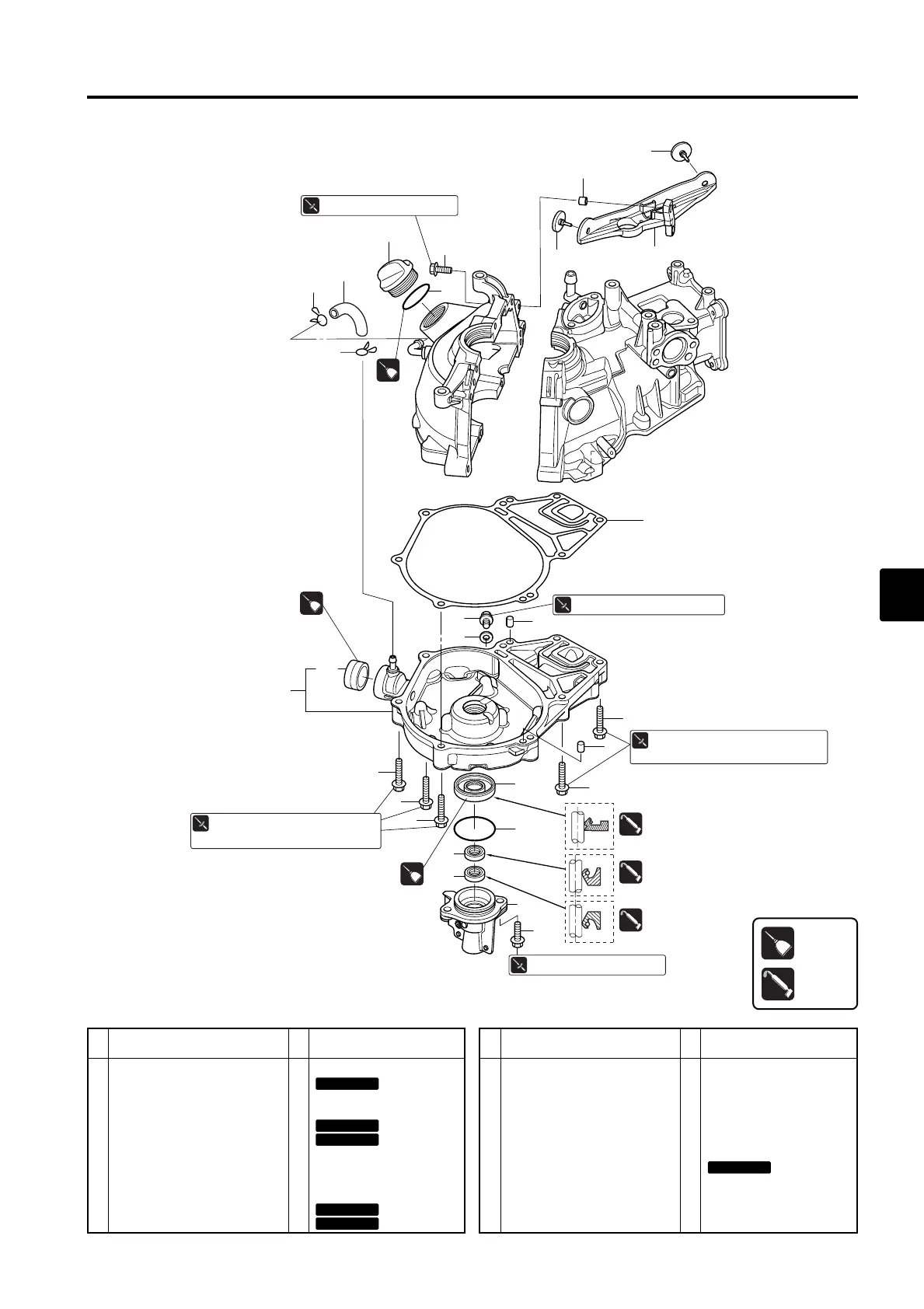

Oil Pan P/L Fig. 4
LIT
GREASE
LIT
4st
OIL
4st OIL
Do not reuse.
Do not reuse.
Do not reuse.
Do not reuse.
Do not reuse.
Do not reuse.
