TOHATSU MFS 2 Service Manual

7-9
4st 2/2.5/3.5 2007
7

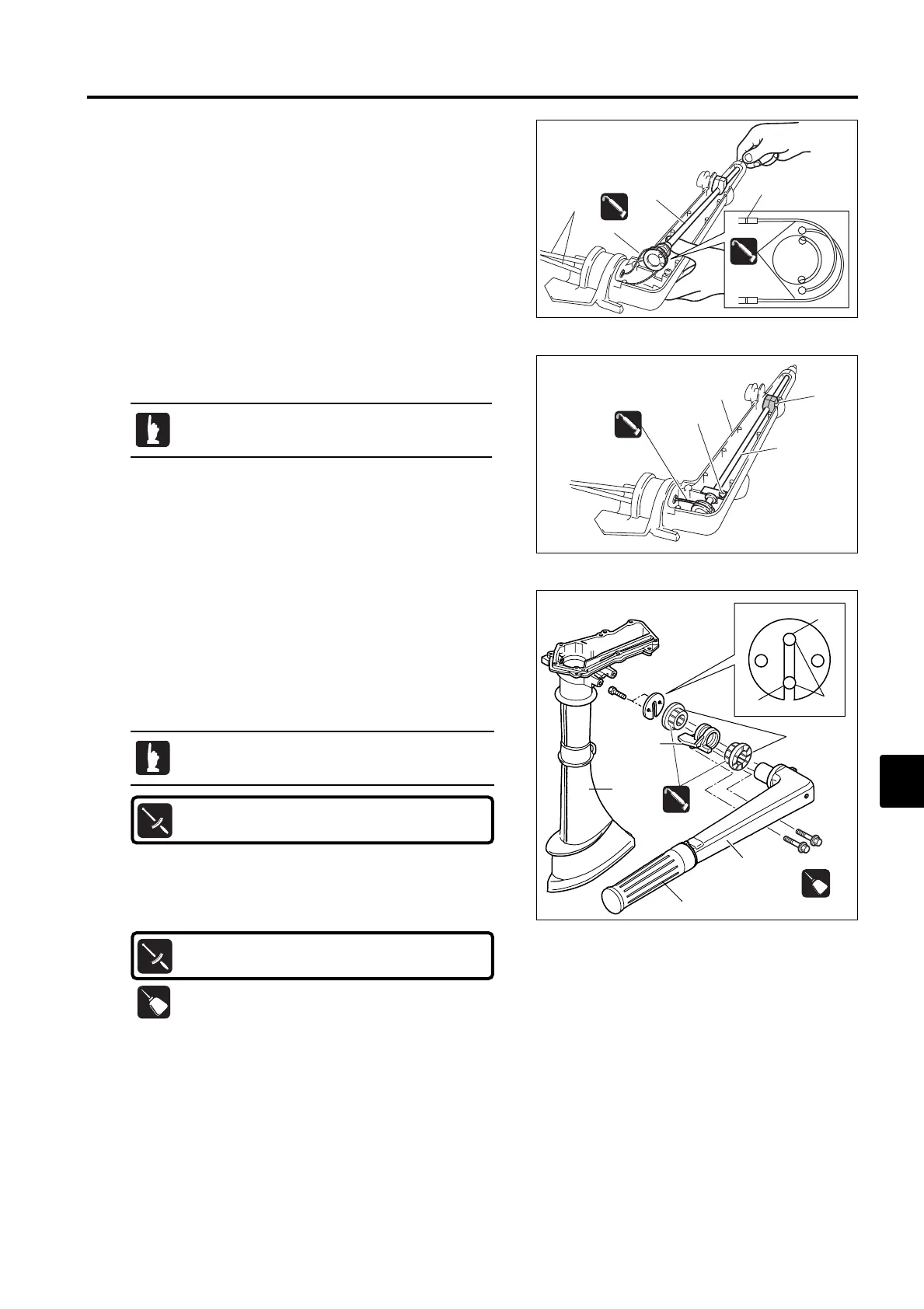

5) Installation of Tiller Handle
1. Attach throttle cable 2 to throttle shaft 1 as shown.
2. Install throttle shaft 1 with throttle cable 2 to tiller handle 3,
and tighten screw 4 securely.
3. Install throttle grip 6 to tiller handle.
4. Install bushing 7 on the steering bracket 8.
5. Attach tiller handle 3 ass'y to steering bracket 8, and
tighten bolt 9 to specified torque.
2
3
8
6
9
0
TB
13421342
1342
a
b
3
GREASE
OBMOBM
OBM
8
Cover Bolt 9 :
6 N · m (4 lb · ft) [0.6 kgf · m]
Steering Bracket Bolt :
13 N · m (9 lb · ft) [1.3 kgf · m]
Arrange throttle cable 2 as shown.
〈a : High Speed Side b : Low Speed Side〉
6. Install tiller handle 3 and steering bracket 4 ass'y to drive
shaft housing 0.
5
1
3
4
GREASE
OBMOBM
OBM
GREASE
OBMOBM
OBM
GREASE
OBMOBM
OBM
1
2
2
2
Be careful of location of throttle friction 5.
TB
13421342
1342
5 Do not apply grease here.
