TOHATSU MFS 2 Service Manual

7-5
4st 2/2.5/3.5 2007
7
Fig.1-18
22
23
24
15
15
18
16
4
8
5
3
2
2
1
21
20
19
6
7
12
13
11
14
17
9
10
6 N·m (4 lb·ft) [0.6 kgf·m]
6 N·m (4 lb·ft) [0.6 kgf·m]
6 N·m (4 lb·ft) [0.6 kgf·m]
GREASE
OBMOBM
OBM
GREASE
OBMOBM
OBM
GREASE
OBMOBM
OBM
GREASE
OBMOBM
OBM
GREASE
OBMOBM
OBM
GREASE
OBMOBM
OBM
a

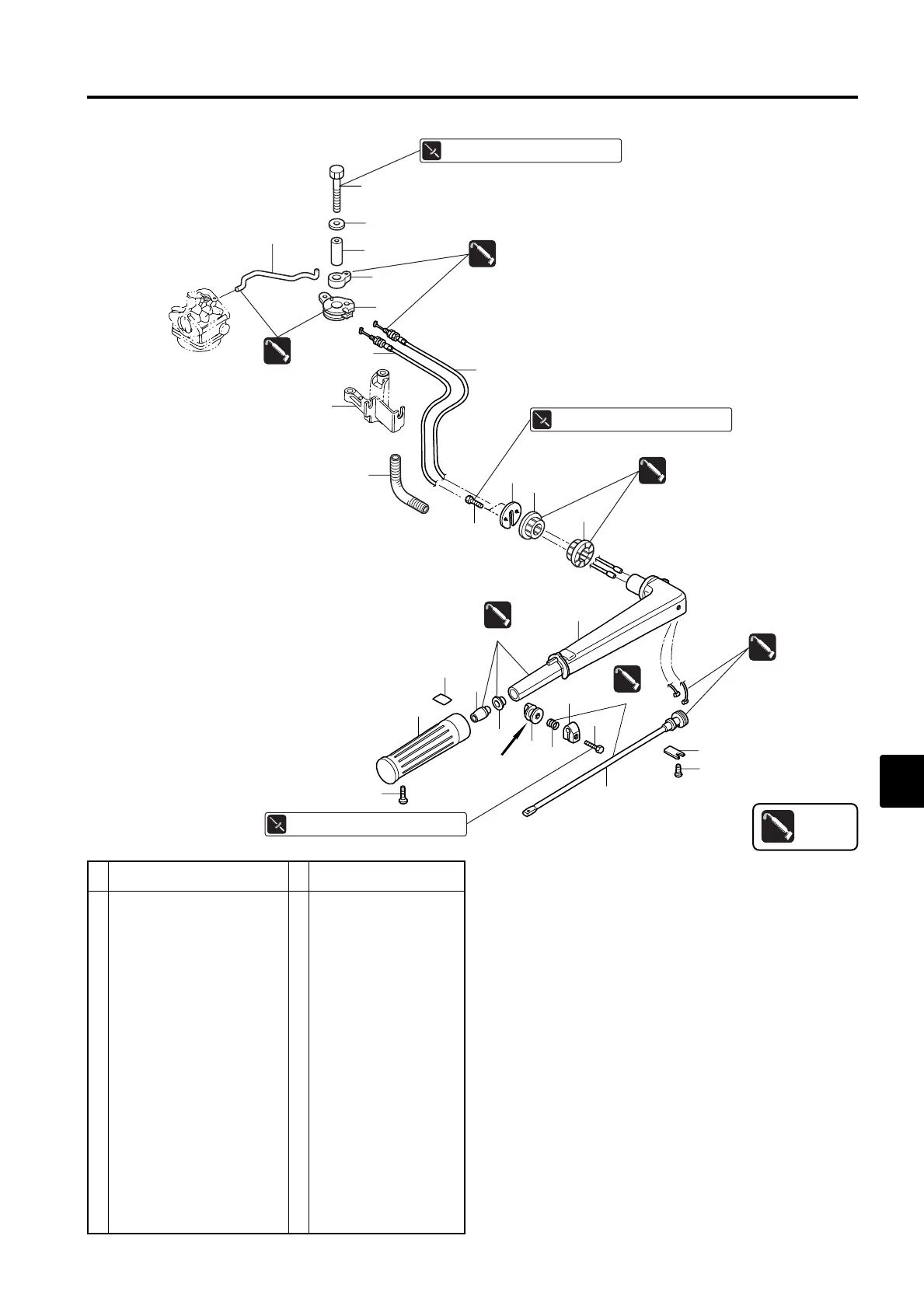

Tiller Handle & Throttle
P/L Fig. 7
a Adjust.
GREASE
OBMOBM
OBM
1 Tiller Handle 1
2 Tiller Handle Bushing 2
3 Cover 1
4 Bolt 2 M6 L=16mm
5 Grip 1
6 Throttle Shaft Damper 1
7 Bushing, 14-15.8-7 1
8 Screw 1 ø5 L=18mm
9 Throttle Shaft Supporter 1
10 Screw 1 ø6 L=21mm
11 Friction Piece 1
12 Adjusting Nut 1
13 Spring 1
14 Bolt 1 M6 L=25mm
15 Throttle Cable 2
16 Throttle Decal 1
17 Throttle Shaft 1
18 Throttle Cable Protector 1
19 Throttle Drum 1
20 Throttle Opener 1
21 Collar, 6.5-10.5-22.6 1
22 Bolt 1 M6 L=35mm
23 Washer, 6-16-1.5 1
24 Throttle Rod 1
Ref.
No.
Part Name Remarks
Q'ty
MFS2sec07070524.qxd07.5.243:21 PM  ページ5

TOHATSU MFS 2 Specifications

General

Brand	TOHATSU
Model	MFS 2
Category	Engine
Language	English
