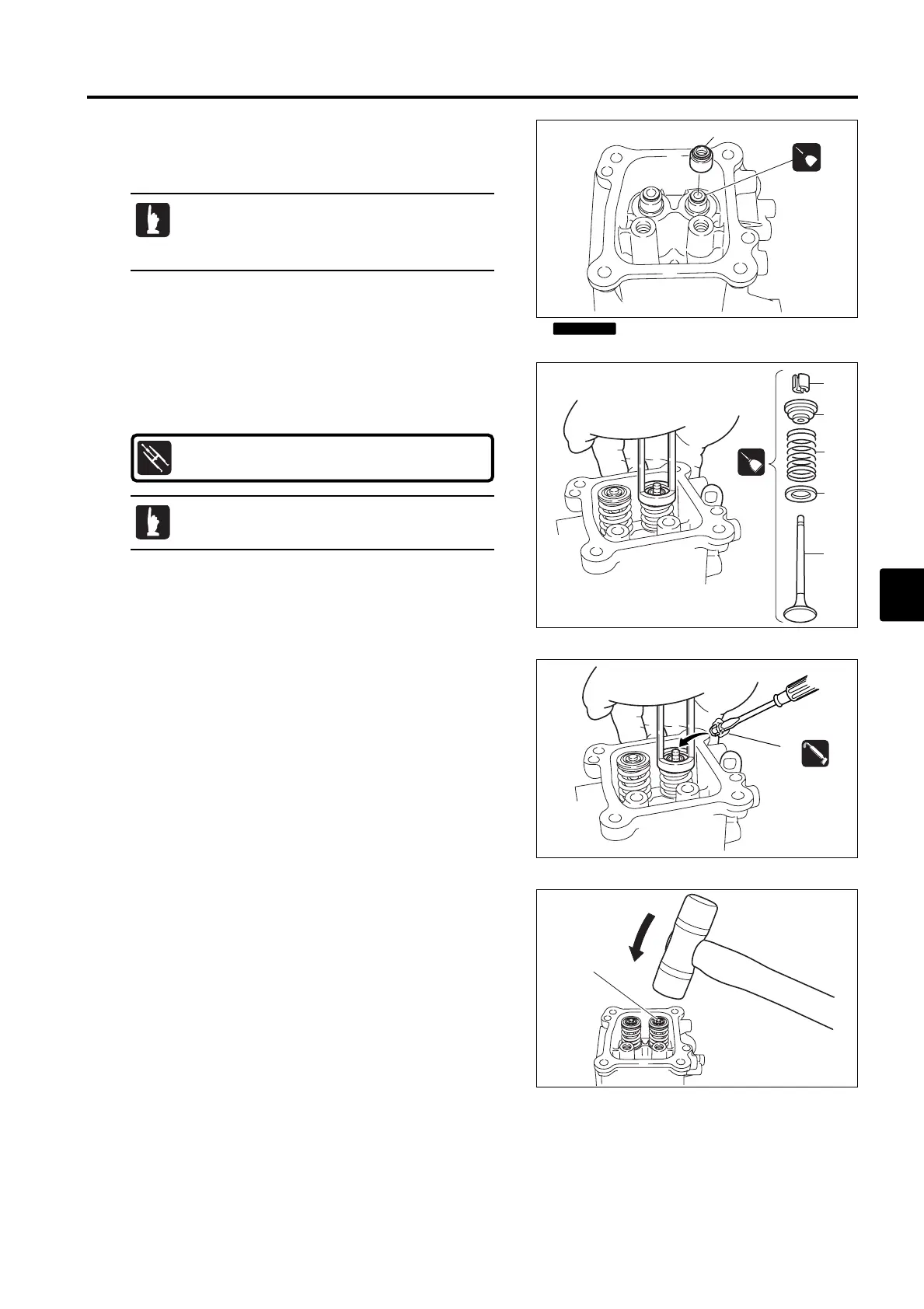

36) Installation of Valves
1. Place cylinder block on the work bench. Apply oil to valve
guide and attach new valve stem seal 1.
2. Assemble valve 2, valve spring seat 3, valve spring 4 and
retainer 5 in this order, and then, push in the assembly by
using valve spring compressor attachment 6.
Valve Spring Compressor Attachment 6 :
P/N. 3AB-99076-0
3. With valve spring 4 being pushed in, use small screw driver
with small amount of grease at the tip to put cotter 7.
4. Remove cylinder block from work bench. Tap valve 2 with
plastic hammer to fix cotter 7 securely.
Intake Side : Black
Exhaust Side : Green
Do not reuse the seal. Use new one.
Valve spring can be put from any end.
