TOHATSU MFS 2 Service Manual

6-12
Lower Unit
4st 2/2.5/3.5 2007

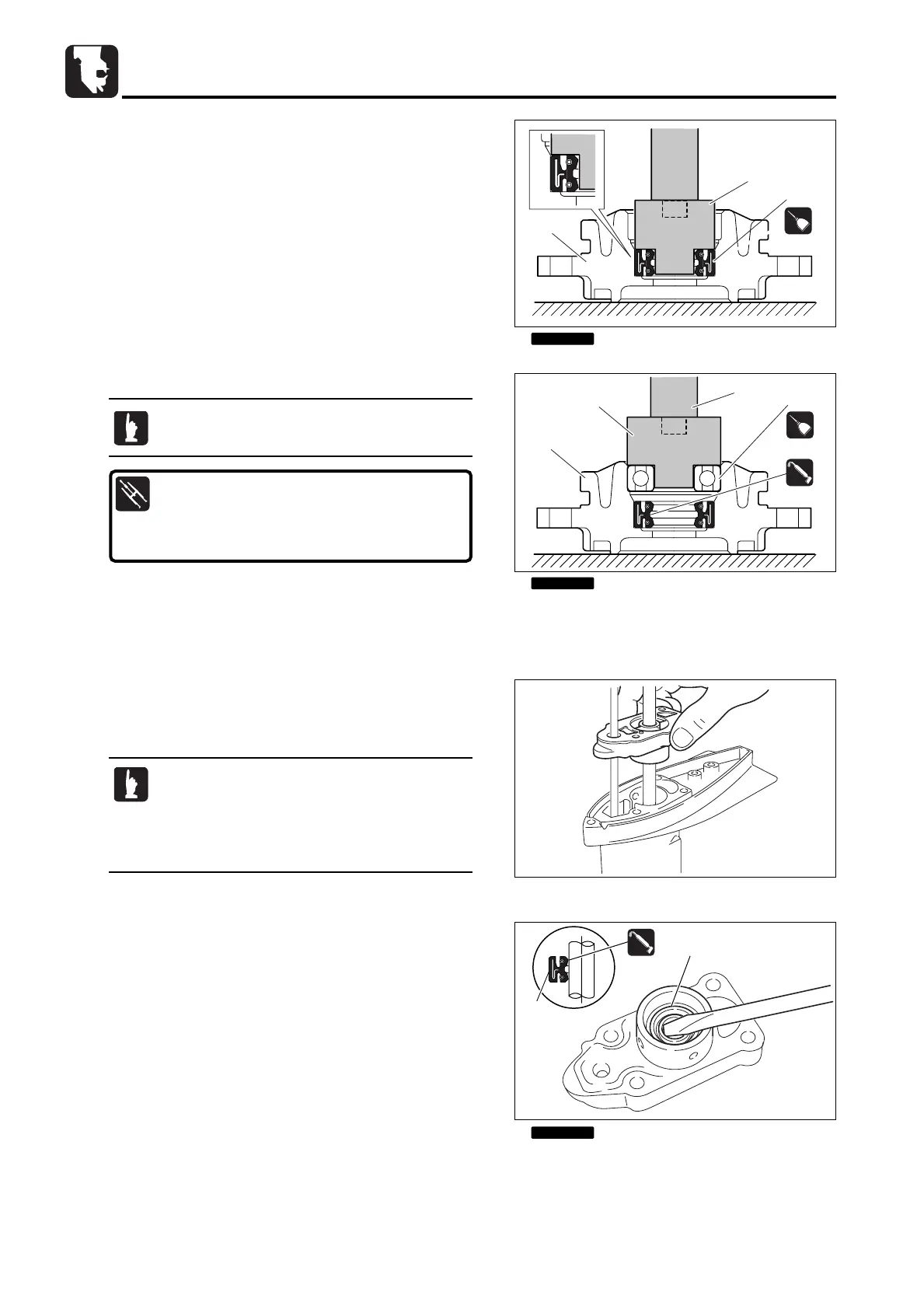

12) Assembly of Propeller Shaft
Housing
1. Apply gear oil to outside of new oil seal 1, and attach it to
propeller shaft housing 3 by using a commercially available
mandrel 2.
2
1
3
OIL
GEARGEAR
GEAR
2. Install new bearing 4 to propeller shaft housing 3.
3. Apply OBM grease to lip of oil seal 1.
4
6
5
3
OIL
GEARGEAR
GEAR
GREASE
OBMOBM
OBM
Do not reuse removed bearing.
Bearing Attachment 2 5 :
P/N.3BR-99905-0
Driver Rod 3 6 :
P/N.3AB-99702-0
1
GREASE
OBMOBM
OBM
1
14) Disassembly of Pump Case (Lower)
1. Use bladed screw driver to remove oil seal 1.
13) Removing Pump Case (Lower)
1. Remove pump case (lower) and cam rod bushing while
pressing down drive shaft.
1
Do not reuse.
When removing or attaching water pump and
pump case (lower), be careful that the drive
shaft is not pushed up.
Pushing up the drive shaft causes pinion (B) to
drop into the gear case.
4
Do not reuse.
1
Do not reuse.
MFS2sec06070524.qxd07.5.243:20 PM  ページ12
