TOHATSU MFS 2 Service Manual

5-42
Power Unit
4st 2/2.5/3.5 2007

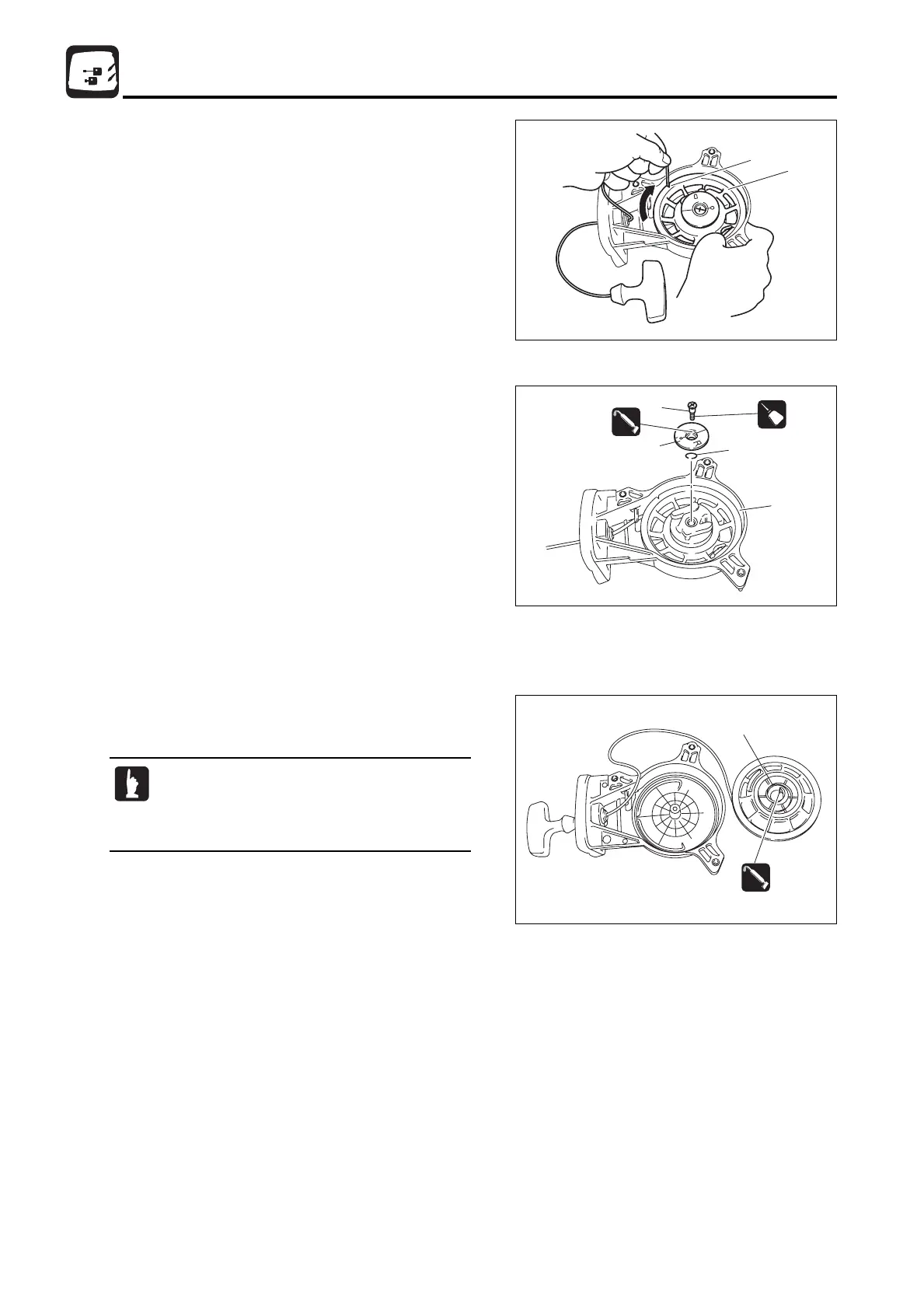

2. Put rope in the groove a of reel 1 and gently turn reel 1
clockwise b to release tension of starter spring.
1
a
bb
3. Remove starter shaft screw 4, and then, friction plate 3,
ratchet and spring 2.
TB
13421342
1342
4
3
2
1
LIT
GREASE
LIT
1 Reel
2 Friction Spring
3 Friction Plate
4 Starter Shaft Screw
41) Disassembly of Recoil Starter
1. Remove bolts and recoil starter and flywheel cover ass'y.
5. Remove starter spring 5.
LIT
GREASE
LIT
5
42) Inspection of Recoil Starter
1. Check ratchet and all springs. Replace if any deformation,
wear or damage is found.
2. Check reel and starter case. Replace if any crack or
damage is found.
3. Check starter rope. Replace if any wear, unraveling or
damage is found.
It is not necessary to remove starter spring from
reel if it is not necessary to replace it. Starter
spring can be inspected without removing from
reel.
5 Starter Spring
4. Take out reel 1 carefully.
MFS2sec05070524.qxd07.5.243:18 PM  ページ42
