TOHATSU MFS 2 Service Manual

6
6-19
4st 2/2.5/3.5 2007
GREASE
OBMOBM
OBM
8
7
c
d
4. Attach pump case liner 7 to pump case (upper) 8, and
apply grease to interior of pump case liner 7.
Bring pump case liner projection c to pump
case (upper) groove d.
1
3
2
4
a
GREASE
OBMOBM
OBM
5
6
b
GREASE
OBMOBM
OBM

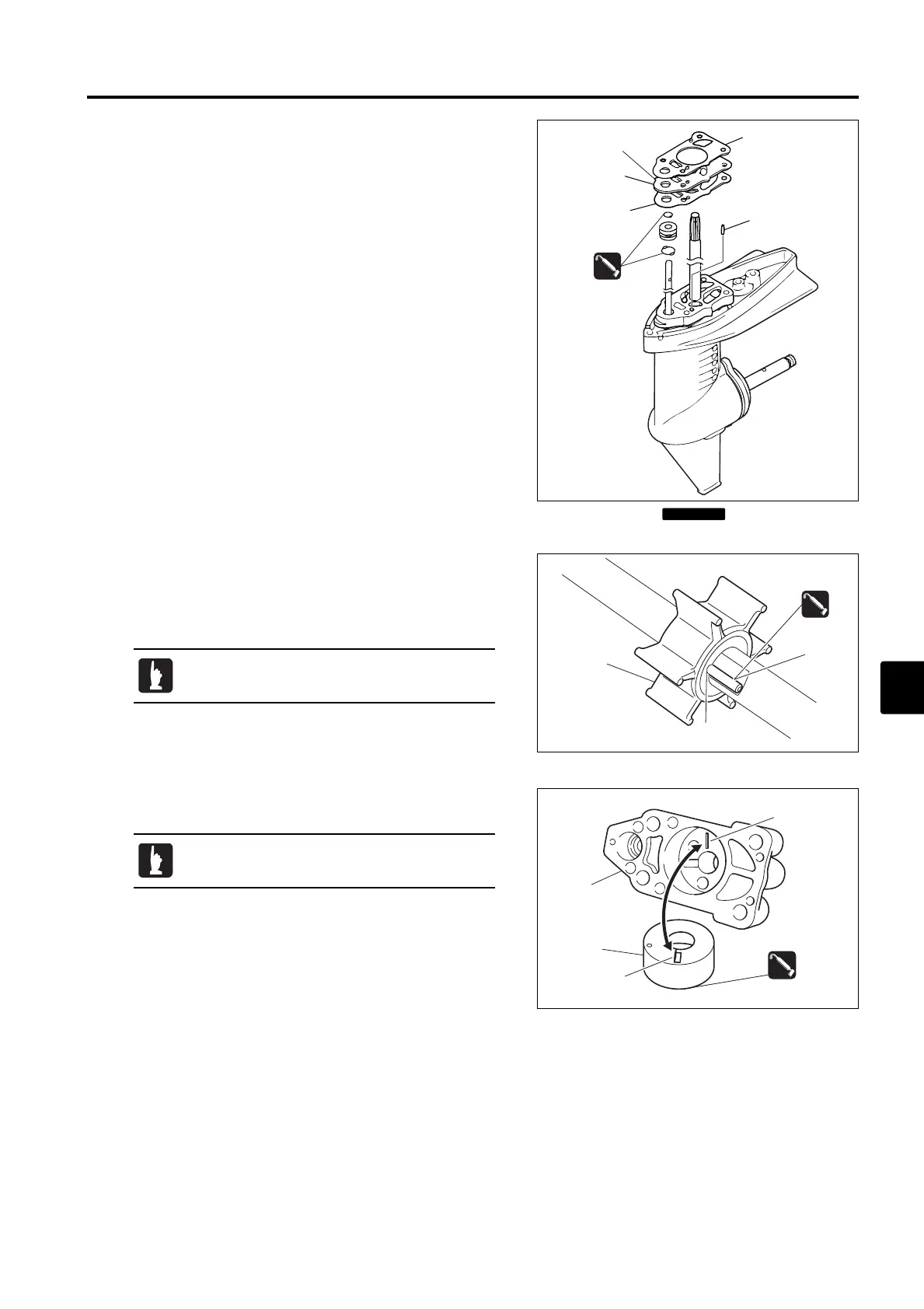

31) Installation of Water Pump
1. Attach new gaskets 1 and 2, water pump guide plate 3
and dowel pin 4.
2. Attach key 5 to drive shaft.
3. Bring impeller 6 groove b to key 5 and install impeller to
drive shaft.
a Projection 1 and 2
Do not reuse.
· Apply grease to the key to prevent it from
dropping when attaching.
