TOHATSU MFS 2 Service Manual

3-17
3
4st 2/2.5/3.5 2007

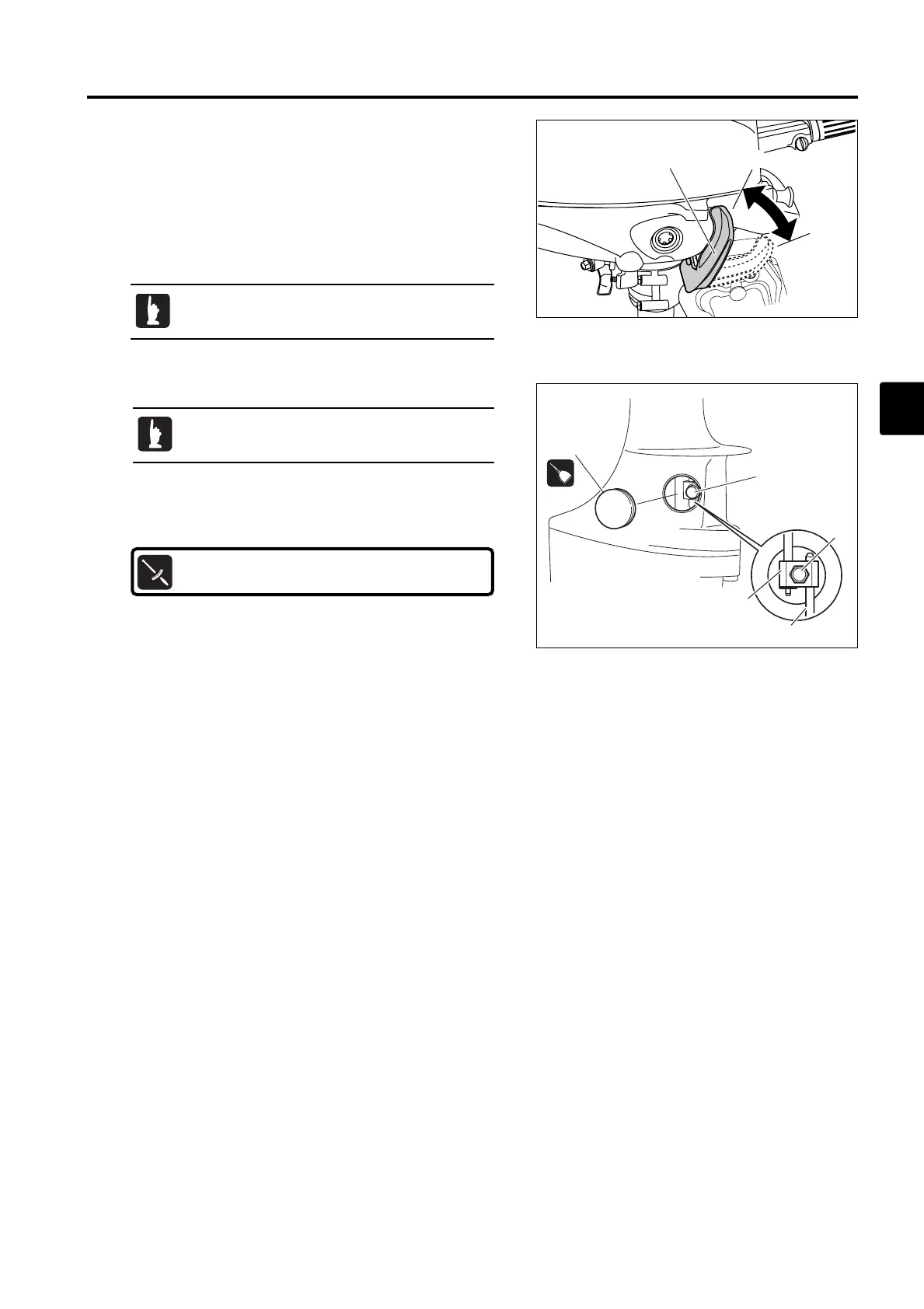

15) Inspection of Gear Shift Operation
Shift the lever 1 from neutral (N) to while rotating propeller,
and then back to neutral (N) to check that shift operation is
performed smoothly. Adjust positions of shift rod 2 and joint
3 if necessary.
1. Shift lever 1 into neutral (N).
2. Remove grommet 4 and loosen bolt 5.
3. Check positions of cam rod 2 and joint 3, and adjust if
necessary.
F
N
1
4
5
3
5
2
4st OIL
4st
OIL
4. Attach grommet 4.
Joint Bolt :
6 N･m (4 lb･ft) [0.6 kgf･m]
Check that propeller shaft rotates smoothly at
neutral (N) position when turned by hand.
Bolt 5 should be loosened, not be removed
from joint 3.
