TOHATSU MFS 2 Service Manual

6-4
Lower Unit
4st 2/2.5/3.5 2007
4
1
1-1
19
2
17-1
17
18
10
12
11
5
6
3
7
8
9
13
14
15
16
TEF
GREASE
TEF
b
OIL
GEARGEAR
GEAR
a
4st OIL
4st
OIL
4st OIL
4st
OIL
TB
13421342
1342
6 N·m (4 lb·ft) [0.6 kgf·m]
GREASE
OBMOBM
OBM
GREASE
OBMOBM
OBM

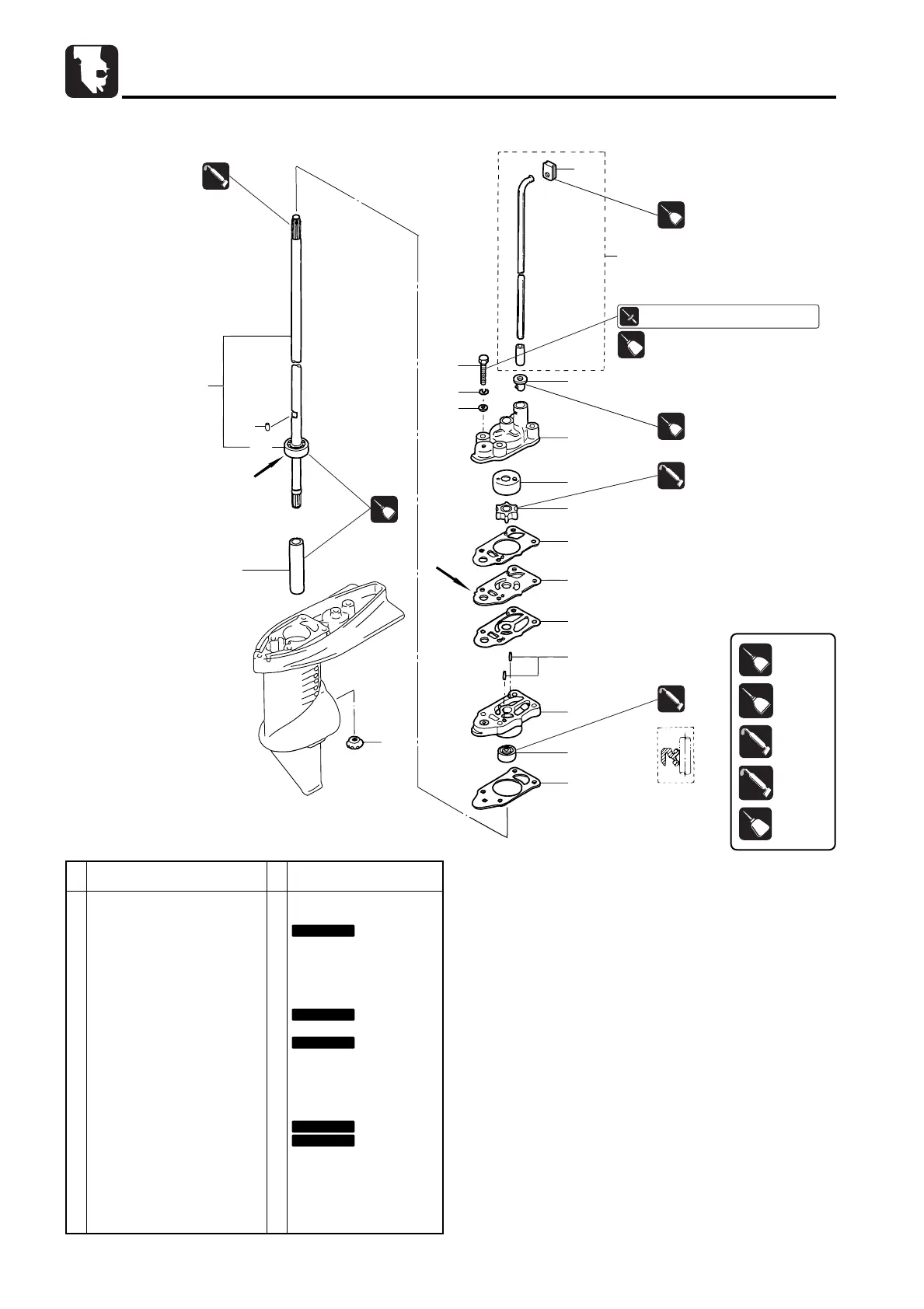

Gear Case (Drive Shaft)
1 Drive Shaft "S" 1 for "S"
Drive Shaft "L" 1 for "L"
1-1 Ball Bearing, 6000 1
2 Pinion Gear ("B"Gear) 1
3 Water Pump Impeller 1
4 Water Pump Impeller Key 1
5 Pump Case (Upper) 1
6 Pump Case Liner 1
7 Pump Case Gasket (Upper) 1
8 Water Pump Guide Plate 1
9 Pump Guide Plate Gasket 1
10 Bolt 4 M6 L=45mm
11 Washer 4
12 Spring Washer 4
13 Dowel Pin, 2-11 2
14 Pump Case (Lower) 1 with Bushing & O-ring
15 Oil Seal, 10-22-8 1
16 Pump Case Gasket (Lower) 1
17 Water Pipe "S" 1 for "S"
Water Pipe "L" 1 for "L"
17-1
Water Pipe Grommet (Upper) 1
18 Water Pipe Grommet (Lower) 1
19 Spacer, 10.1-15-72 1
Ref.
No.
Description Remarks
Q'ty
P/L Fig. 10
Do not reuse.
Do not reuse.
Do not reuse.
Do not reuse.
Do not reuse.
TEF
GREASE
TEF
GREASE
OBMOBM
OBM
TB
13421342
1342
4st
OIL
4st OIL
OIL
GEARGEAR
GEAR
a Projectionb Note: Marked with "SH2 C3"
