8) Assembling Carburetor
1. Attach carburetor ass'y to intake manifold.
1
2
3
a
a
a
a
1
2
3

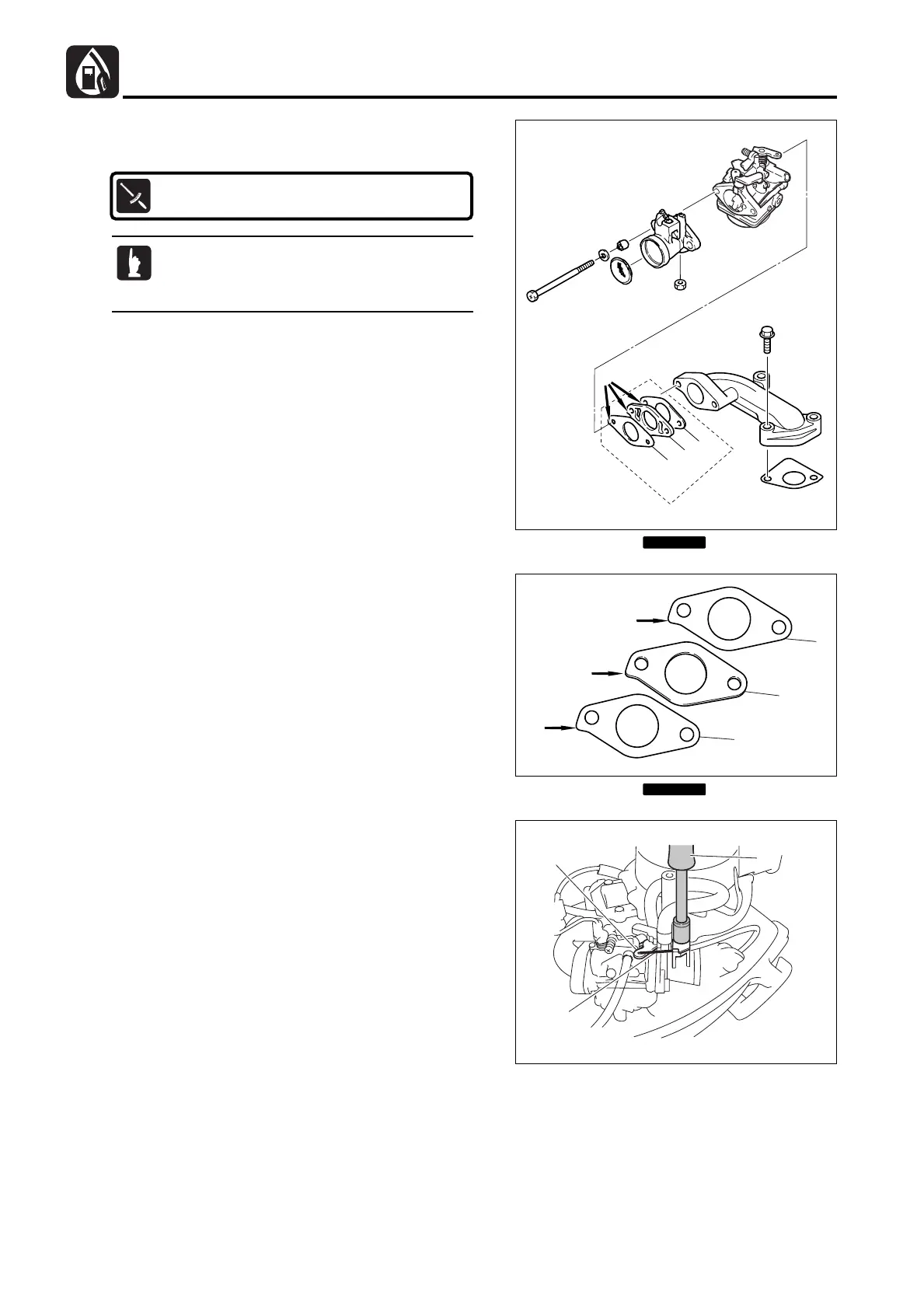

Put carburetor gaskets 1 and 3 and insulator
2 together with their projections a at the same
side, and install carburetor.
2. Attach choke wire 4 to choke lever 5 of carburetor.
4
5
6
a Projections 1 and 3
a Projections 1 and 3
Carburetor Bolt :
6N · m (4 lb · ft) [0.6kgf · m]
6 10 mm Wrench
Do not reuse.
Do not reuse.
