TOHATSU MFS 2 Service Manual

6-14
Lower Unit
4st 2/2.5/3.5 2007

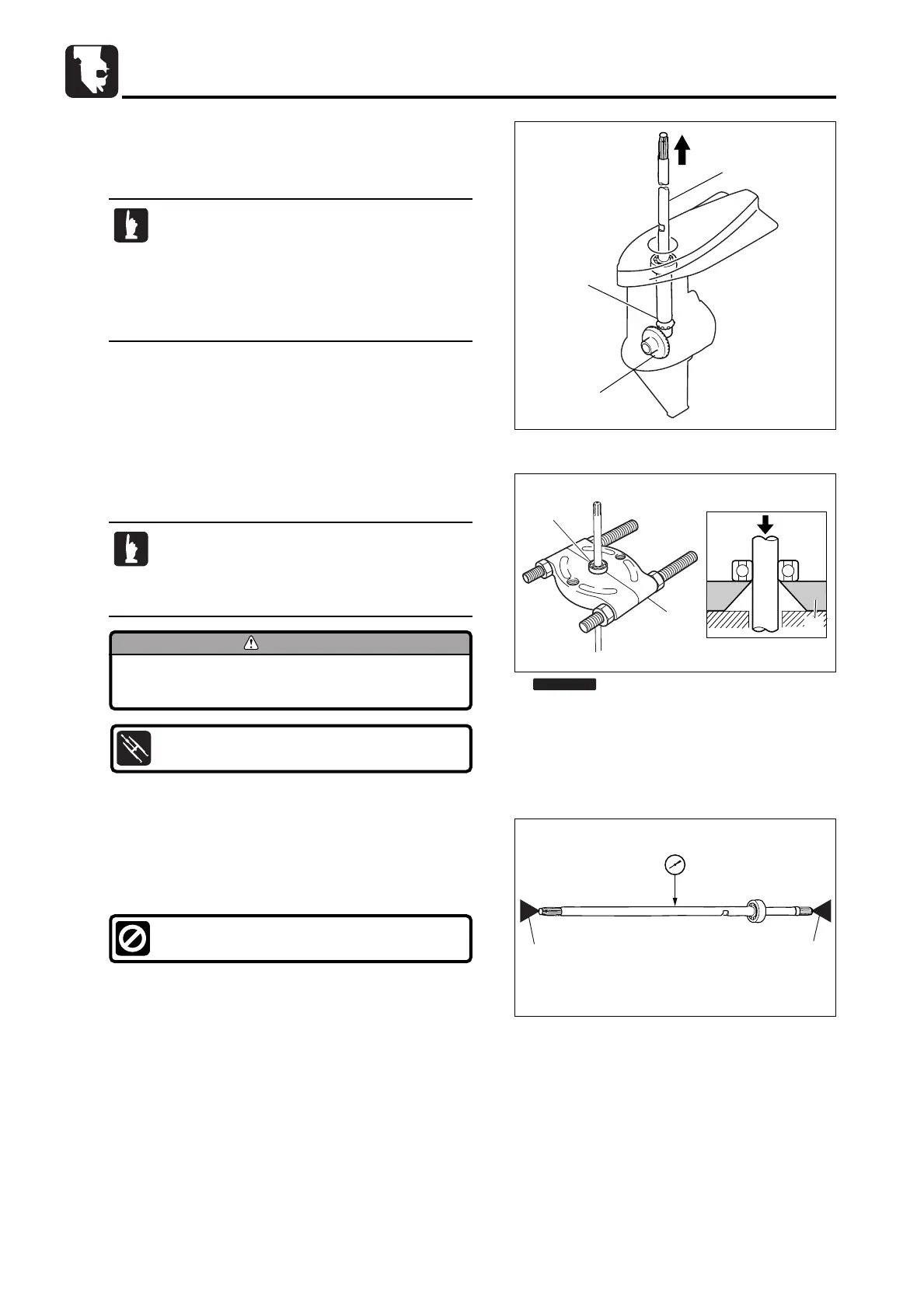

20) Removing Drive Shaft
1. Pull up drive shaft ass'y 1, remove pinion (B) gear 2 , and
pull out forward (A) gear 3.
1
3
2
· When removing forward (A) gear, be careful
not to damage the existing shims or lose them.
Shim is reusable.
· Replace shim with new one of the same
thickness if any deformation or damage is
found on it.
1
2
2
21) Disassembly of Drive Shaft
1. Remove drive shaft bearing 1.
Do not reuse bearing. Be sure to replace
with new one.
CAUTION
Universal Puller Plate 2 :
P/N. 3AC-99750-0
· Before removing, check bearing for play or
deflection. Replace if necessary.
· Be sure to remove or install from bearing of
pinion (B) gear side.
22) Inspection of Drive Shaft
1. Check drive shaft for bend and wear. Replace if necessary.
2. Measure drive shaft runout.
aa
Drive Shaft Runout Limit :
0.5 mm (0.020 in)
a Supporting Points
①
Do not reuse.
