4
4-11
4st 2/2.5/3.5 2007
h
4
3
e
f
g
i
5
4

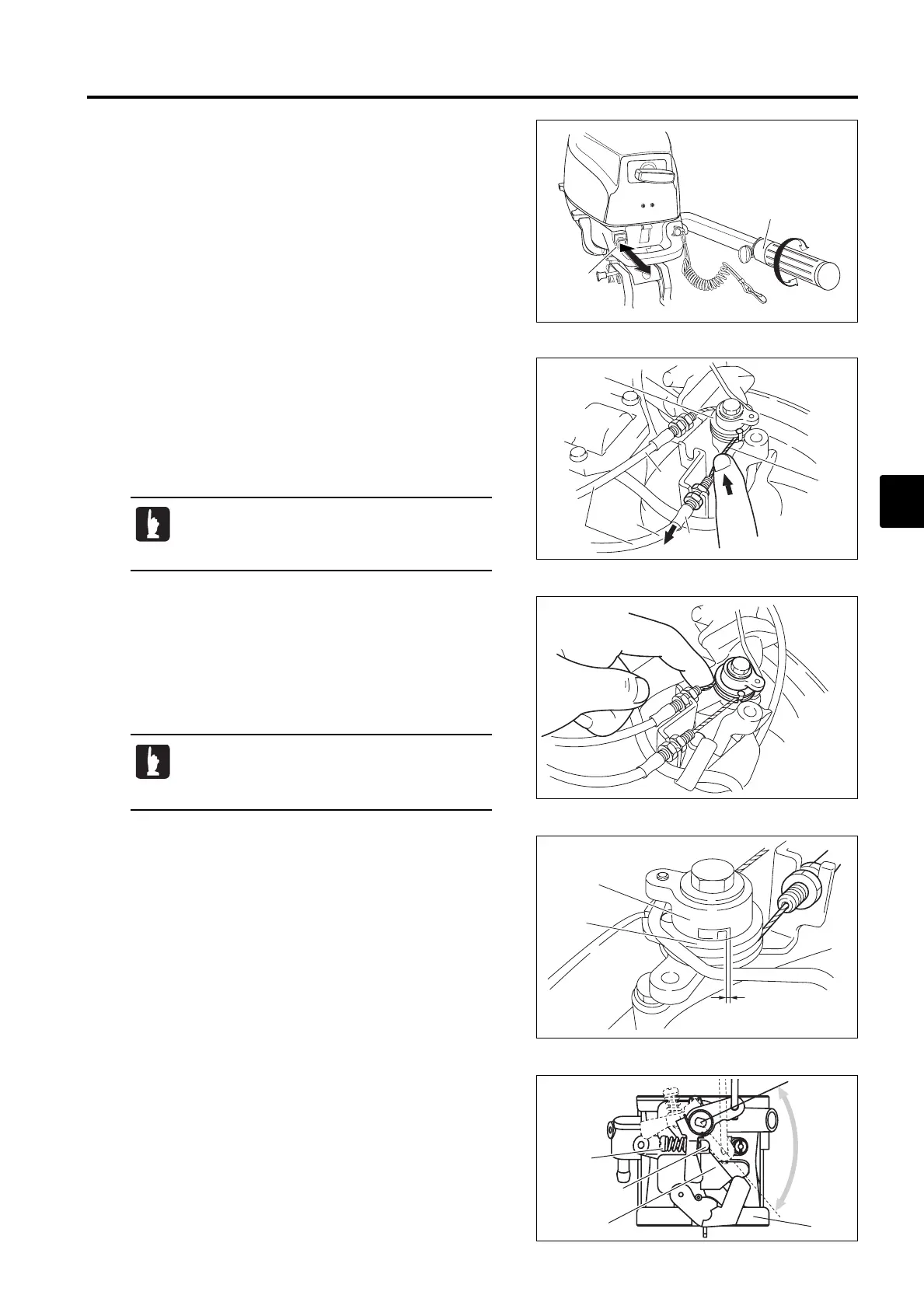

9) Adjustment of Throttle Cable
1. Turn throttle grip 1 to full close position a.
2. Pull choke rod 2 fully d.
3. Attach throttle cable 3 to throttle drum 4 taking care of
the positions of low speed side e and high speed side f.
4. Pull outer cable g of throttle cable 3 to the side shown
with the arrow by hand, and lock it with the nut while
applying tension to the cable.
8. Turn throttle grip 1 from full close position a to full open
position b, and check that the throttle lever of carburetor 6
touches the full open stopper j. Then, return the throttle
grip 1 from full open position b to full close position a, and
check that the throttle lever of carburetor touches the full
close stopper k (throttle stop screw L ).
5. Attach high speed side f cable and low speed side e cable
by using the same way.
6. Push back choke rod 2 fully c. (wide open choke)
7. Turn throttle grip 1 to full close position a.
Push inner cable h with a finger to check that
the cable deflects approximately 1mm (0.04in)
at the center.
Check that the gap i between the projection of
throttle drum 4 and dent of throttle opener 5 is
within the range from 0.5 - 1.0 mm (0.020 - 0.040 in).
