TOHATSU MFS 2 Service Manual

4
4-3
4st 2/2.5/3.5 2007

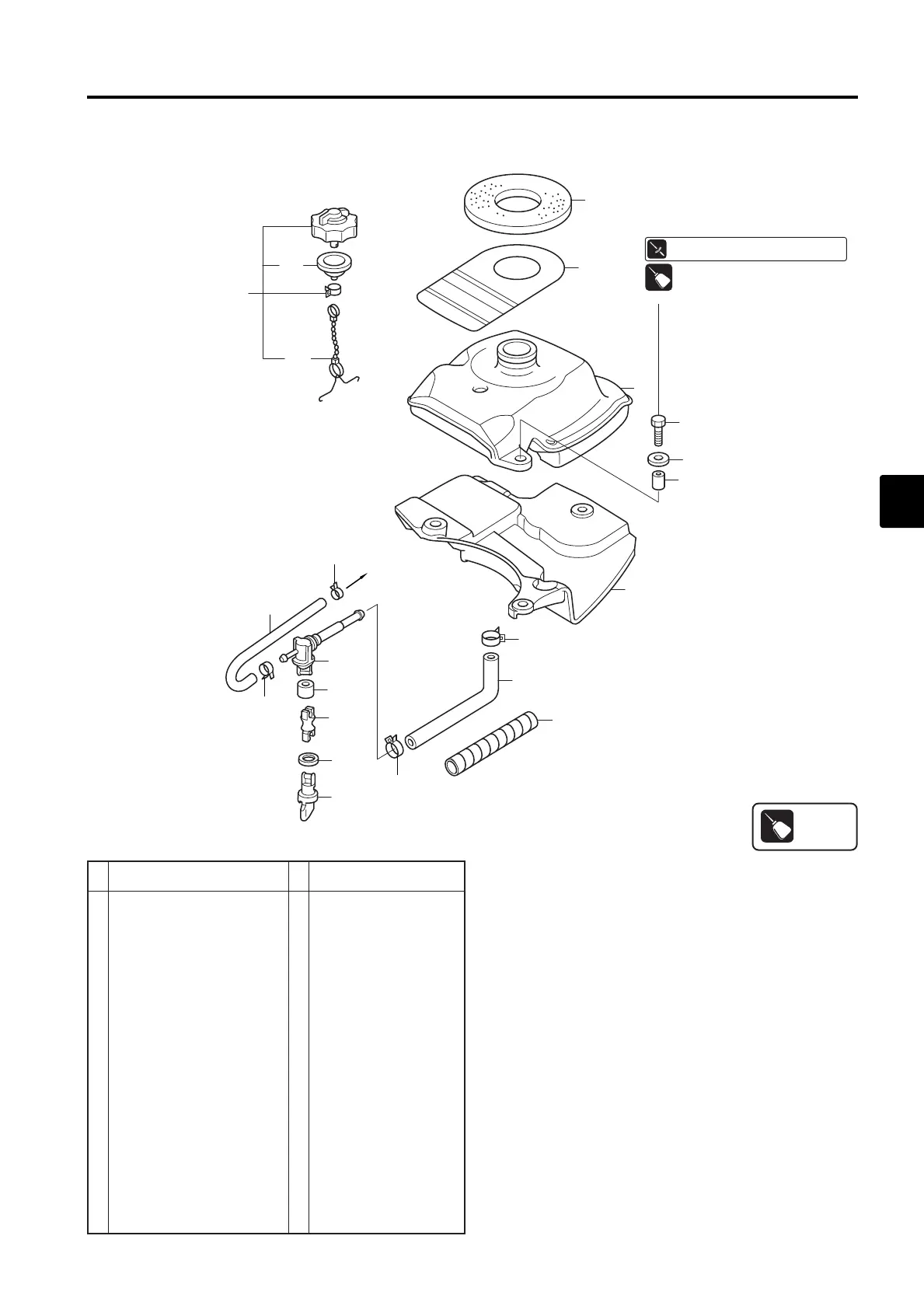

2. Parts Layout
Fuel Tank
P/LFig. 14
15-1
16
1
5
4
3
2
14
13
6
10
7
8
9
14
17
15-2
15
12
12
11
Carburetor
18
TB
13421342
1342
6 N·m (4 lb·ft) [0.6 kgf·m]
TB
13421342
1342
1 Fuel Tank 1
2 Fuel Tank Cover 1
3 Collar, 6.2-9-10.7 3
4 Washer, 6-16-1.5 3
5 Bolt 3 M6 L=25mm
6 Fuel Cock 1
7 Fuel Cock Rod 1
8 Seal Ring 1
9 Fuel Cock Knob 1
10 Fuel Cock Rod Hose 1
11 Fuel Hose 1
12 Clip, ø9.5 2
13 Fuel Hose 1
14 Clip, ø15 2
15 Fuel Tank Cap 1
15-1
Tank Cap Gasket 1
15-2
Tank Cap Hook 1
16 Fuel Tank Seal 1
17 Caution Decal "B" 1
18 Fuel Hose Protector 1
Ref.
No.
Description Remarks
Q'ty
