TOHATSU MFS 2 Service Manual

5
5-19
4st 2/2.5/3.5 2007

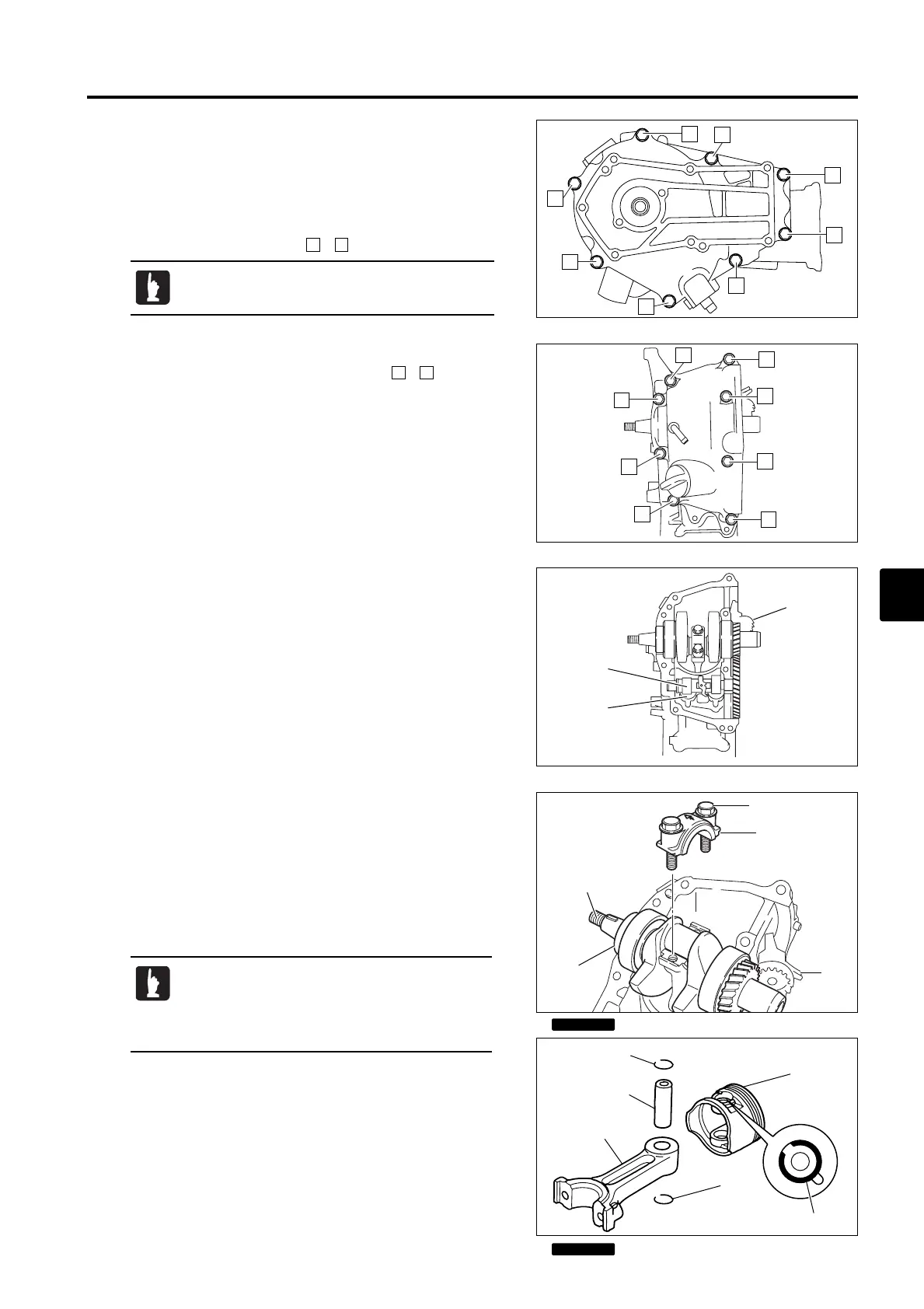

13) Disassembly of Cylinder Block
1. Remove thermostat cap bolts, and then thermostat cap
and thermostat.
2. Remove breather cover.
3. Loosen oil pan bolts in the order reverse to the numbers
shown, and remove oil pan. 8 - 1
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
6
5
3
4
7
1
7
2
9
q
8
0
9
9
4. Loosen crank case bolts in the order reverse to the
numbers shown, and remove crank case. 8 - 1
5. Remove cam shaft 1 and lifter 2.
6. Remove connecting rod bolts 3 and connecting rod cap
4, and then, crank shaft 5 and oil seal 6.
7. Remove oil slinger 7.
8. Remove connecting rod 8 and piston ass'y from cylinder
block.
9. Remove piston pin clip 9 and piston pin from piston and
connecting rod ass'y, and then remove piston q.
Wipe off spilled oil completely.
· Removed bearings should be arranged in the
order they are removed.
· Do not reuse piston pin clips. Be sure to
replace with new ones.
9
Do not reuse.
6
Do not reuse.
