TOHATSU MFS 2 Service Manual

4
4-9
4st 2/2.5/3.5 2007
a
4
5
c
b
5

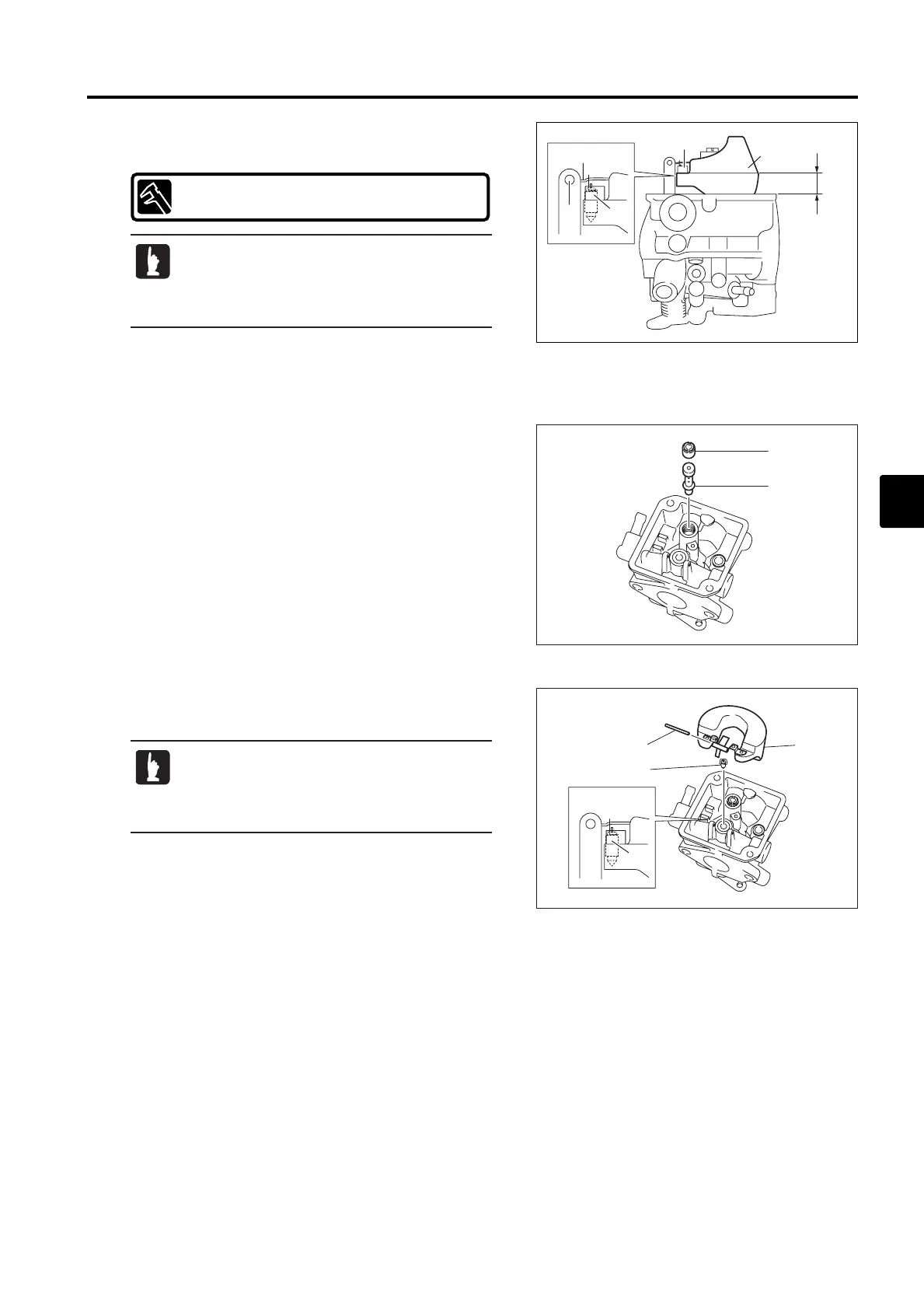

6. Measure height a of float 4. Adjust height a of float 4 by
bending tab b if the height is out of specified range.
Float Height a :
9.0 - 10.0 mm (0.354 - 0.394 in)
· Bring tab b of float 4 into light contact with
top of float valve 5.
· Measure the height at the marking line that is
located opposite to pivot c side.
7) Assembling of Carburetor
1. Attach main nozzle 1 and main jet 2 to carburetor body as
shown.
1
2
2. Attach float valve, float 4 and float arm pin 3 as shown,
and check if float 4 moves smoothly.
3. Attach slow jet and float chamber.
4
5
3
5
· When attaching float to carburetor body, put
float valve 5 in the valve seat.
· Put float arm pin in the horizontal hole on the
carburetor, and tap lightly to set the location.
