TOHATSU MFS 2 Service Manual

Fuel System (Carburetor)
4-4
4st 2/2.5/3.5 2007

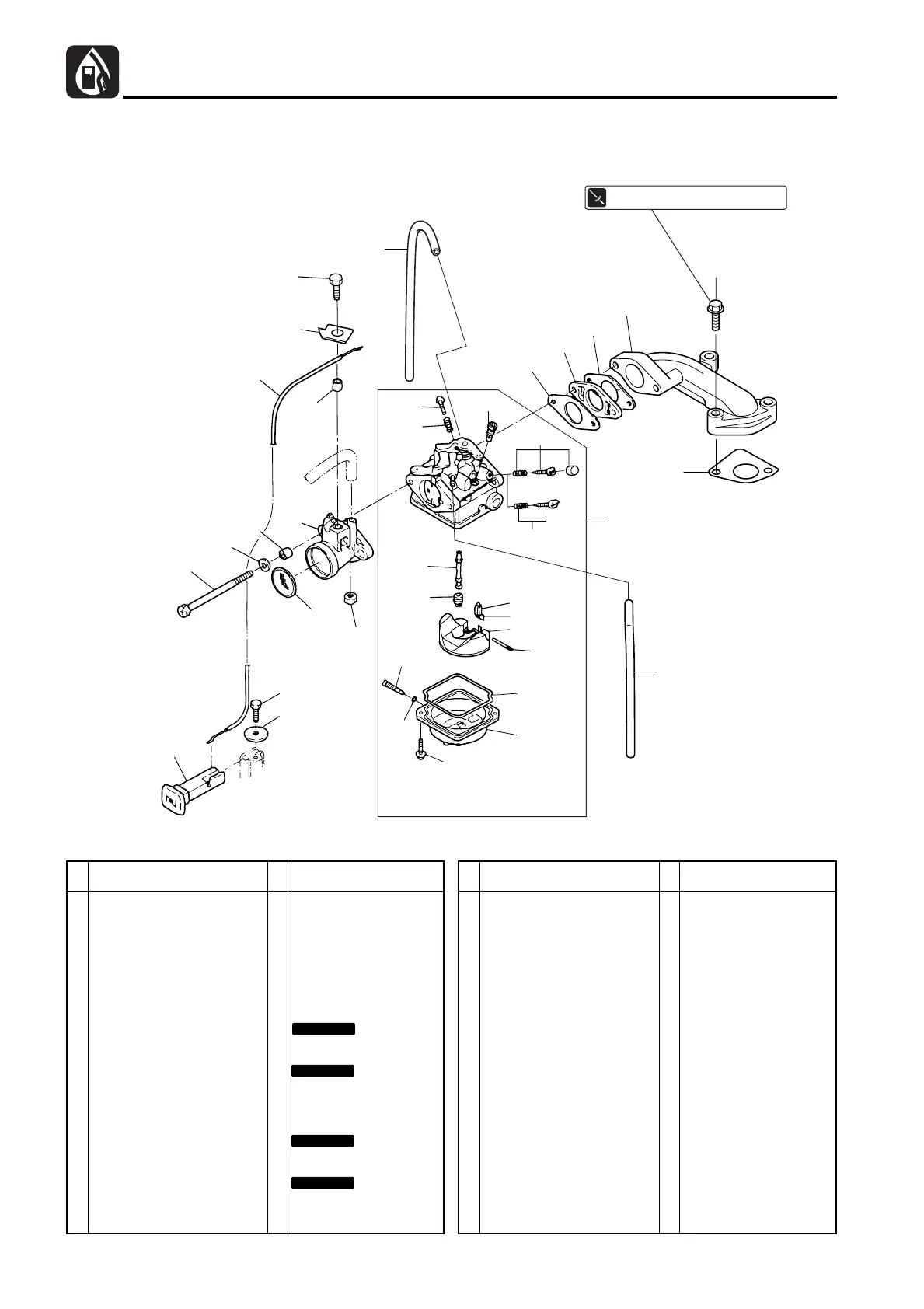

Carburetor
14
13
10
17
9
12
11
8
7
15
19
18
16
1-11
1-12
1-10
1-8
1-9
1-7
1-4
1-6
1-5
1
1-2
1-1
1-15A
1-15B
1-3
1-14
1-13
2
3
2
4
6
5
20
20
10 N·m (7 lb·ft) [1.0 kgf·m]
Fig. 3
1 Carburetor 1
1-1 Main Nozzle 1
1-2 Main Jet 1
1-3 Slow Jet 1
1-4 Float 1
1-5 Float Valve 1
1-6 Clip 1
1-7 Float Arm Pin 1
1-8 Float Chamber 1
1-9 Float Chamber O-Ring 1
1-10
Screw 2
1-11
Drain Screw 1
1-12
Drain Screw O-Ring 1
1-13
Stop Screw 1
1-14
Stop Screw Spring 1
1-15A
Pilot Screw Set 1
1-15B
Pilot Screw Set (for EU) (1) for EUROPE
2 Carburetor Gasket 2
3 Insulator 1
4 Intake Manifold 1
5 Intake Manifold Gasket 1
6 Bolt 2 M6 L=30mm
7 Intake Silencer 1
8 Flame Arrester 1
Ref.
No.
Description Remarks
Q'ty
9 Collar, 6.2-9-7.5 2
10 Collar, 6.2-9-7 1
11 Bolt 2 M6 L=85mm
12 Washer 2
13 Cable Holder 1
14 Bolt 1 M6 L=16mm
15 Nut 1 M6
16 Choke Rod 1
17 Choke Link Cable 1
18 Washer, 6.5-21-1 1
19 Bolt 1 M6 L=12mm
20 Rubber Hose 2
Ref.
No.
Description Remarks
Q'ty
Do not reuse.
Do not reuse.
Do not reuse.
Do not reuse.
