TOHATSU MFS 2 Service Manual

5
5-25
4st 2/2.5/3.5 2007

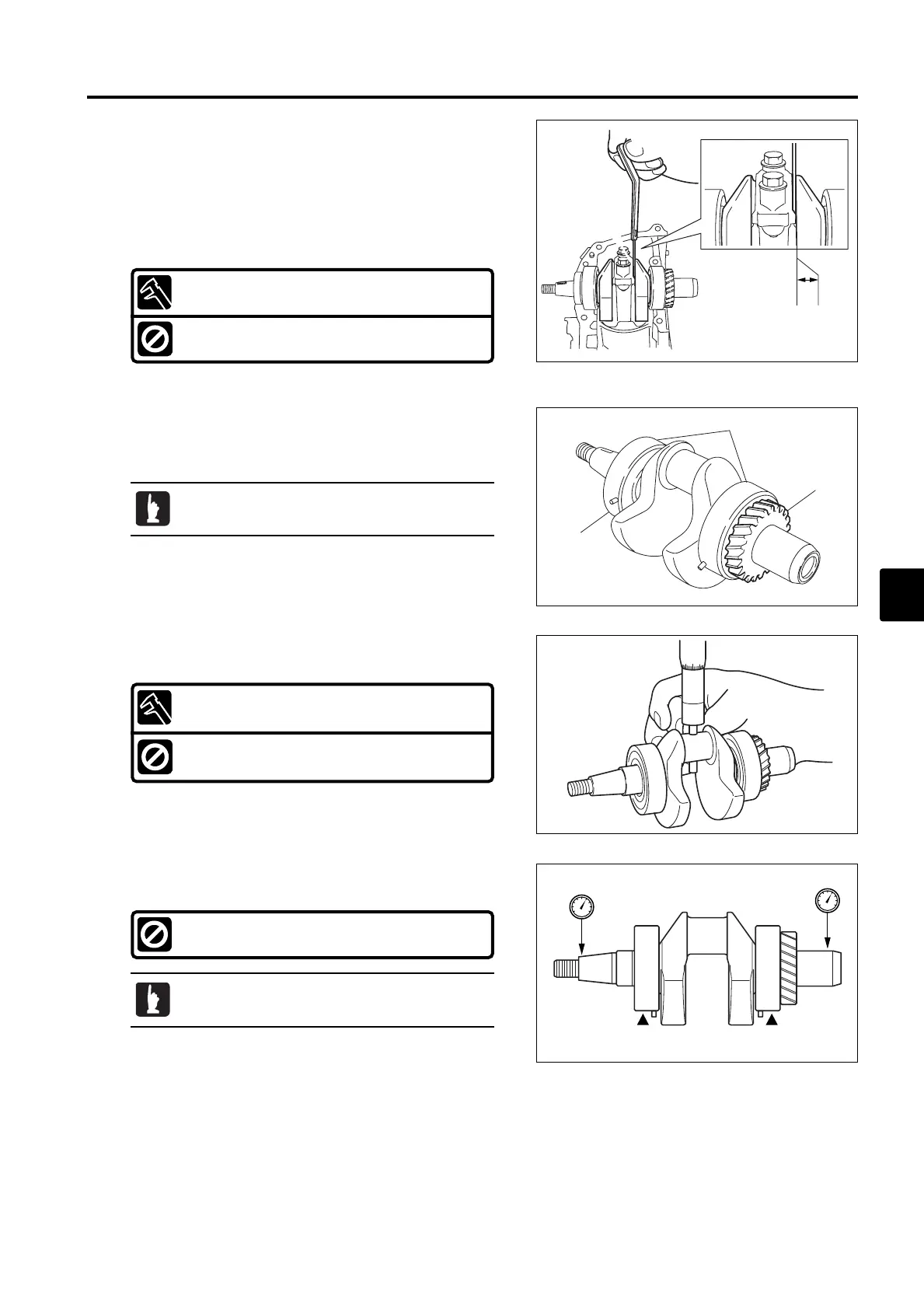

25) Inspection of Connecting Rod Big
End Side Clearance
1. Measure connecting rod big end side clearance a by
using a commercially available thickness gauge. Replace
connecting rod and/or crank shaft if the clearance is over
specified value.
a
Connecting Rod Big End Side Clearance a :
0.10 - 0.25 mm (0.0039 - 0.0098 in)
Functional Limit :
0.60 mm (0.0236 in)
26) Inspection of Crank Shaft
1. Check crank shaft gear 1 and bearing 2 for damage and
wear. Replace crank shaft ass'y or bearing if necessary.
2. Measure crank pin outer diameter. Replace crank shaft if
outer diameter is less than specified value.
1
2
a
Crank Pin Outer Diameter : Standard value
19.98mm (0.7866 in)
Functional Limit :
19.95mm (0.7854 in)
3. Measure crank shaft runout. Replace crank shaft or
bearing if outer diameter is less than specified value.
Crank Shaft Runout Limit :
0.05 mm (0.0020 in)
Use V blocks to support crank shaft at bearings.
Flywheel side a bearing can be replaced with
new one as a single unit.
MFS2sec05070524.qxd07.5.243:18 PM  ページ25
