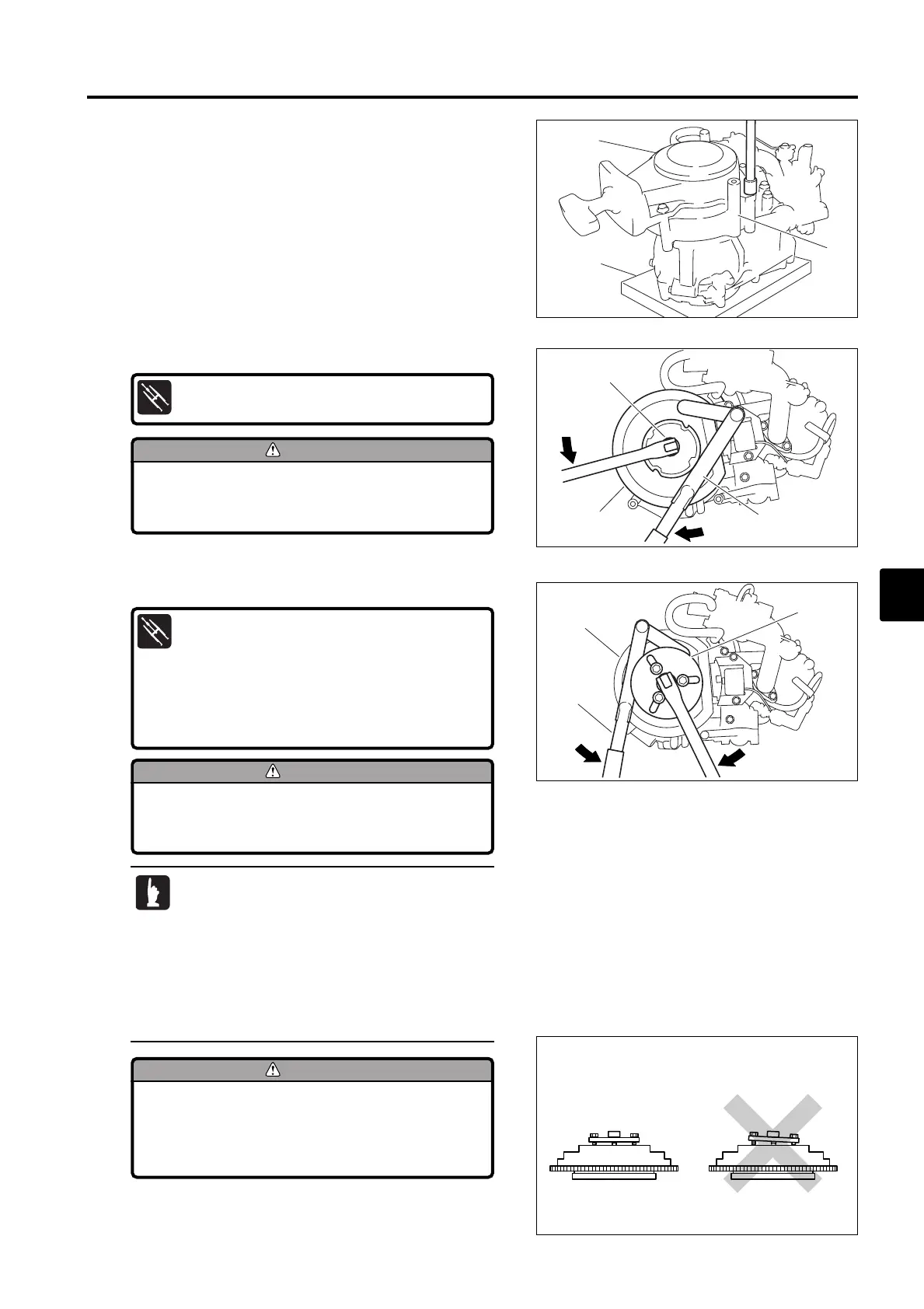

8) Disassembly of Power Unit
1. Place power unit on the work bench a.
2. Remove recoil starter 1 and flywheel cover 2.
3. Remove flywheel nut 3.
Flywheel Holder 4 :
P/N. 3AC-99200-0
Apply forces to tools toward directions as
shown, and perform work taking care not to
allow flywheel holder to slip.
4. Remove flywheel 5 and key.
To prevent damages to engine and special
tools, tighten flywheel puller set bolts
evenly and keep flywheel puller parallel to
flywheel while working.
Apply forces to tools toward directions as
shown, and perform work taking care not to
allow flywheel holder to slip.
· Screw puller onto crank shaft end until
flywheel is disengaged from tapered section of
crank shaft.
· If bolts with specified size are not available,
use recoil starter bolts, or if they are deformed,
use new bolts.
· Set flywheel holder before attaching flywheel
puller.
Flywheel Holder 4 :
P/N. 3AC-99200-0
Flywheel Puller Kit 6 :
P/N. 3C7-72211-1
M6, L = 60mm, Bolts (3 pcs.)
(or recoil starter bolts and washers)
