TOHATSU MFS 2 Service Manual

Ref.
No.
Part Name
Remarks
Q'ty
1-12 Starter Seal 1
2 Bolt 3 M6 L=60mm
3 Washer, 6-16-1.5 3
4 Clamp, 6.5-67P 1
5-4
Power Unit
4st 2/2.5/3.5 2007

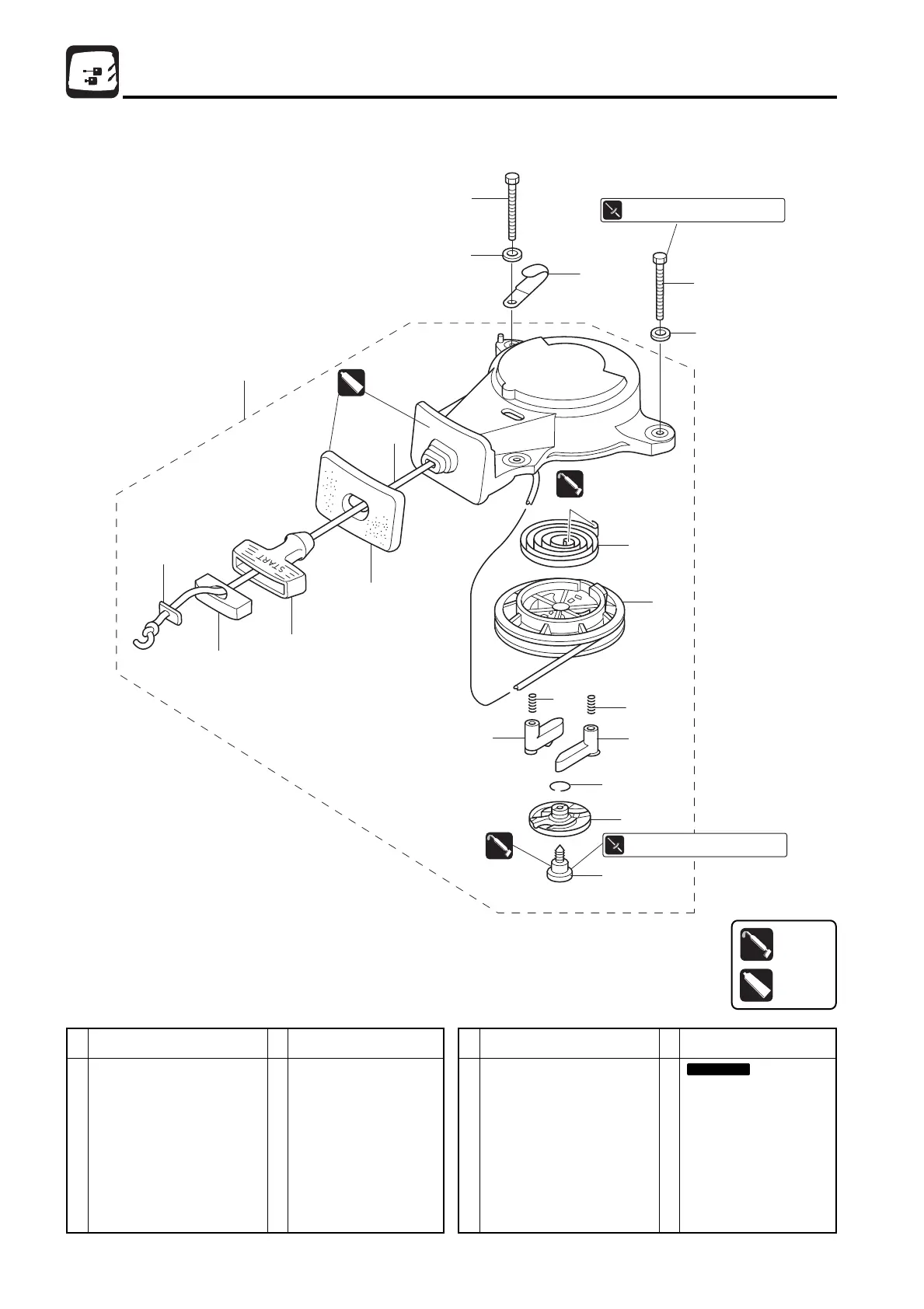

Recoil Starter
1-11
1-10
1
2
3
4
2
3
1-9
1-12
1-3
1-1
1-2
1-5
1-4
1-4
1-8
1-6
1-7
1-5
6 N·m (4 lb·ft) [0.6 kgf·m]
5 N·m (4 lb·ft) [0.5 kgf·m]
LIT
GREASE
LIT
LIT
GREASE
LIT
G17G17
BOND
G17
Ref.
No.
Part Name Remarks
Q'ty
P/L Fig. 8
LIT
GREASE
LIT
G17G17
BOND
G17
Do not reuse.
1 Recoil Starter 1
1-1 Starter Spring 1
1-2 Reel 1
1-3 Starter Rope 1 ø3.5-L=1200
1-4 Ratchet 2
1-5 Return Spring 2
1-6 Friction Plate 1
1-7 Starter Shaft Screw 1
1-8 Friction Spring 1
1-9 Starter Handle 1
1-10 Rope Anchor 1
1-11 Rope Anchor Plate 1
