4. SYSTEM MODE (For Service Persons and System Administrators) EO13-33005
4.7 Sensor Display/Adjustment
4- 66
(5) Battery Voltage Status
Notes:
1. During a sensor check, status of each sensor is monitored and displayed every 200 msec. (The
display changes in accordance with sensor status.)
2. When the [FEED] and [PAUSE] keys are simultaneously pressed, the display returns to the system
mode menu.

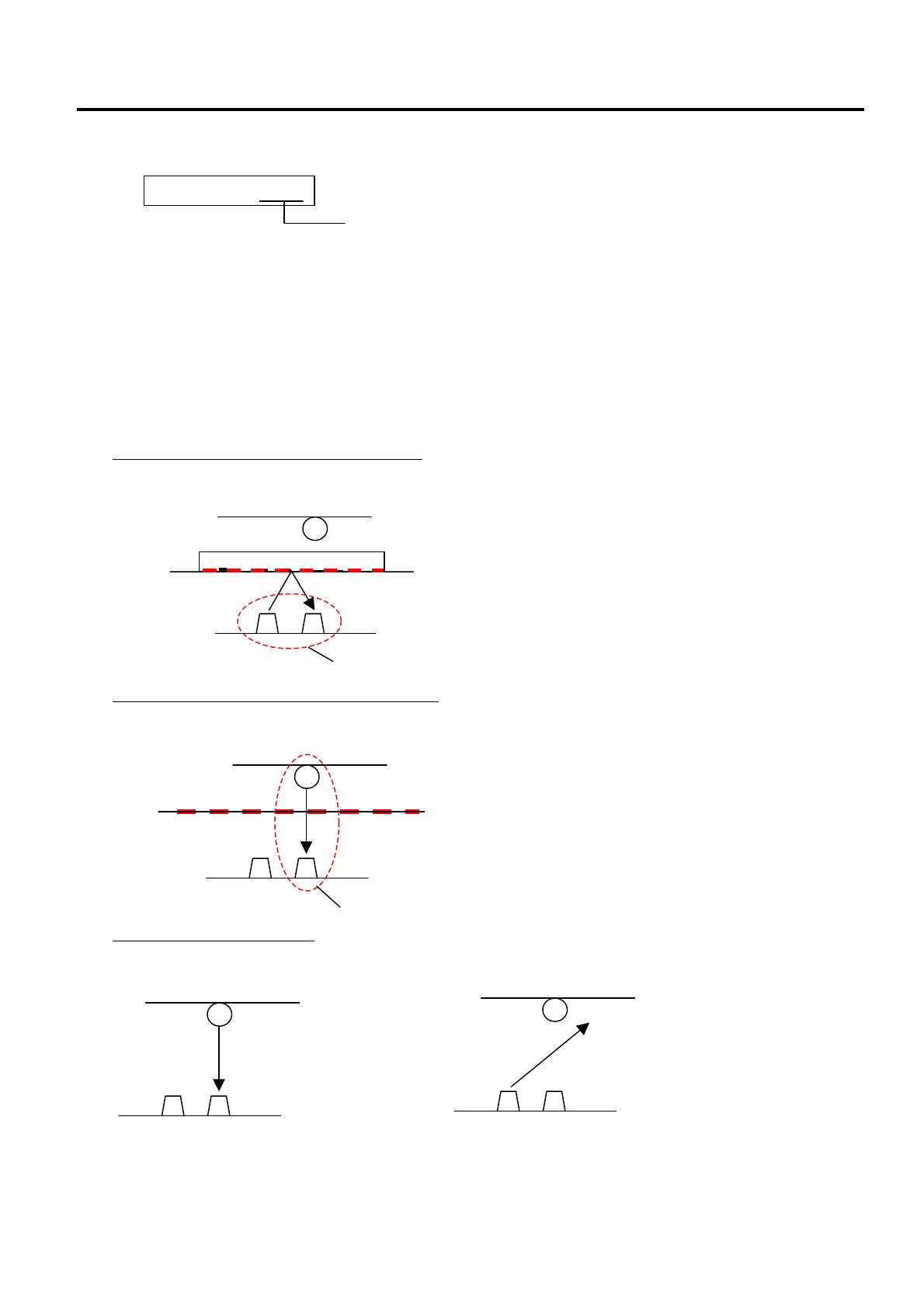

3. MediaLoading Method
Reflective (Black Mark) Sensor Adjustment
Place a specified paper in a manner so that the label (red dashed line) comes in contact with the
reflective sensor.
Transmissive (Feed Gap) Sensor Adjustment
Remove a few labels from a specified paper and place the backing paper (red dashed line) in a manner
so that it comes in contact with the transmissive sensor.
Adjustment at without paper
Do not place a paper in the printer.
[BATTERY] 16.5V
Battery Voltage Status
B-EP2: 7.2V to 8.4 (9.4)V
B-EP4D: 14.0V to 16.8 (17.4)V
Note: The voltage in parenthesis indicates an upper limit which does no
cause a high voltage error.
Label paper
Head (printer) side
Reflects
Cover side
Reflective (Black Mark) Sensor
Head (printer) side
Transmits
Cover side
Backing paper
Transmissive (Feed Gap) Sensor
Head (printer) side
No paper
Cover side
Transmissive (Feed Gap) Sensor
Head (printer) side
No paper
Cover side
Reflective (Black Mark) Sensor
To Next Page
