4. SYSTEM MODE (For Service Persons and System Administrators) EO13-33005
4.5 Printer Parameter Fine Adjustment
4- 44
4.5.3 X-coordinate Fine Adjustment (X ADJUST.)
This setting sets an amount by which the X-coordinate is shifted to the left or right.
Use the [PAUSE] key to select a desired option. (Range: -99.9mm to +99.9mm)

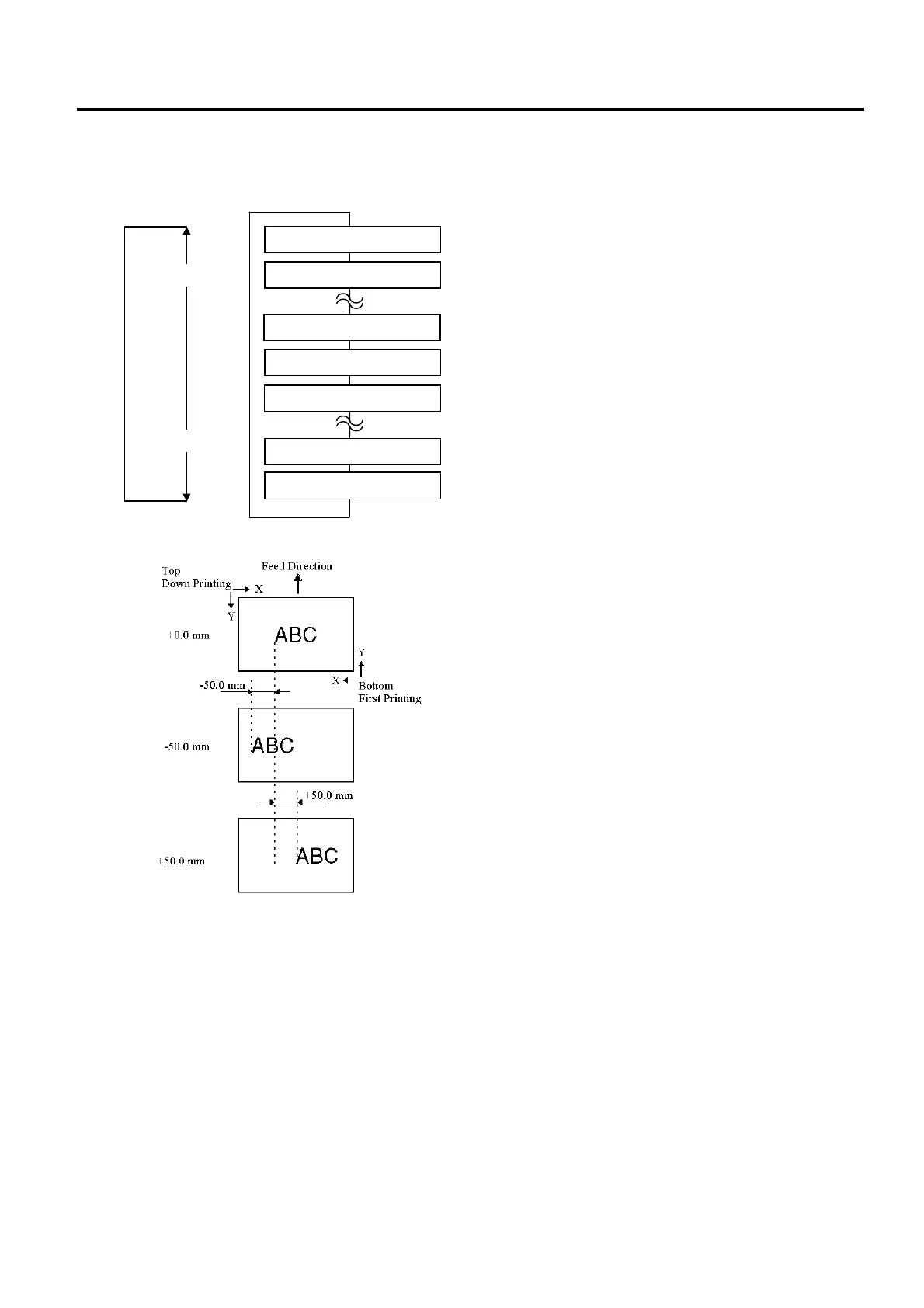

• X Coordinate Fine Adjustment (Example)
Notes:
1. When the [FEED] key is pressed, the menu moves in the opposite direction from when the [PAUSE] key is
pressed.
2. When the [PAUSE] key is pressed while the [FEED] key is held down, or when the [POWER] key is pressed
for 3 seconds or more, the display returns to the system mode menu (ADJUST SET).
3. When the [PAUSE] key or [FEED] key is pressed for 0.5 seconds or more during this fine adjustment
setting, repeat mode is enabled and the key pressed is repeatedly entered.
4. The change in the fine adjustment value becomes effective when the [POWER] key is pressed after setting,
then stored in the backup memory.
5. The factory default value is +0.0mm.
6. The X-coordinate fine adjustment setting is performed to finely shift the x-coordinate of graphic data to the
right or left. This fine adjustment is performed within the effective print width range. (When the X-coordinate
is shifted in the minus direction and reaches its origin (0), it cannot be further shifted and stays at the origin.)
7. This fine adjustment is disabled for self-test print (maintenance counter values, various parameter values,
and automatic self-test) and test print.
X ADJUST +99.9mm
X ADJUST +99.8mm
X ADJUST +0.0mm
X ADJUST -99.8mm
X ADJUST -99.9mm
X ADJUST -0.1mm
X ADJUST +0.1mm
[PAUSE]
[FEED]
