4. SYSTEM MODE (For Service Persons and System Administrators) EO13-33005
4.7 Sensor Display/Adjustment
4- 65
4.7.2 Strip Sensitivity Setting ([PEEL])
This setting is used for sensitivity adjustment of strip sensor.
Notes:
1. When the [FEED] key is pressed, the menu moves in the opposite direction from when the [PAUSE]
key is pressed.
2. When the [FEED] and [PAUSE] keys are simultaneously pressed, the display returns to the system
mode menu.
3. When the [FEED] key or [PAUSE] key is pressed for 0.5 seconds or more during this setting, repeat
mode is enabled and the key pressed is repeatedly entered.
4.7.3 Detals of Sensor adjustment Value Display (Sensor A/D Value Display)
(1) Thermal Head Thermistor and Ambient Thermistor Status
(2) Reflective (Black Mark) Sensor Status
(3) Transmissive (Feed Gap) Sensor Status
(4) Reflective Sensor and Transmissive Sensor Status (without paper)

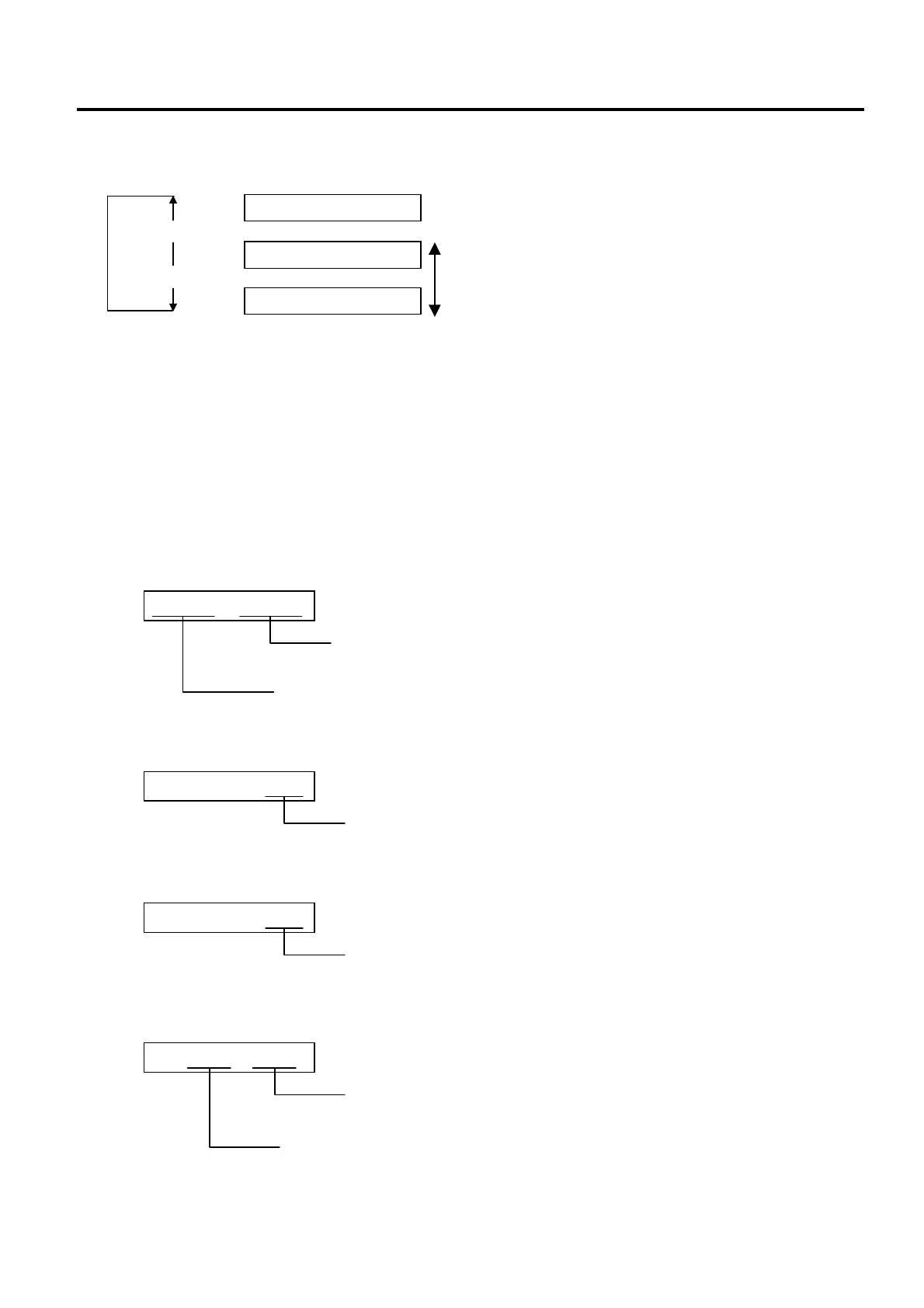

[PEEL.] AUTO
[PEEL.] 2
[FEED]
[PAUSE]
[PEEL.] 1
Automatic sensitivity adjustment (Factory default)
High sensitivity
Low sensitivity
H:20°C A:+22°C
Ambient thermistor status
15
°C to 86°C
Thermal head thermistor status
15
°C to 86°C
[REFLECT] 3.8V
Reflective sensor status
0.0V to 5.0V
[TRANS.] 2.3V
Transmissive sensor status
0.0V to 5.0V
[PE]R4.6V T4.3V
Transmissive sensor level without paper
0.0V to 5.0V
Transmissive sensor level without paper
0.0V to 5.0V
