Toshiba B-FV4 Series User Manual

8. UPDATING FIRMWARE EO18-33030
8.4 Updating Firmware in B-FV Setting Tool (V1.0.34 or later)
8-20

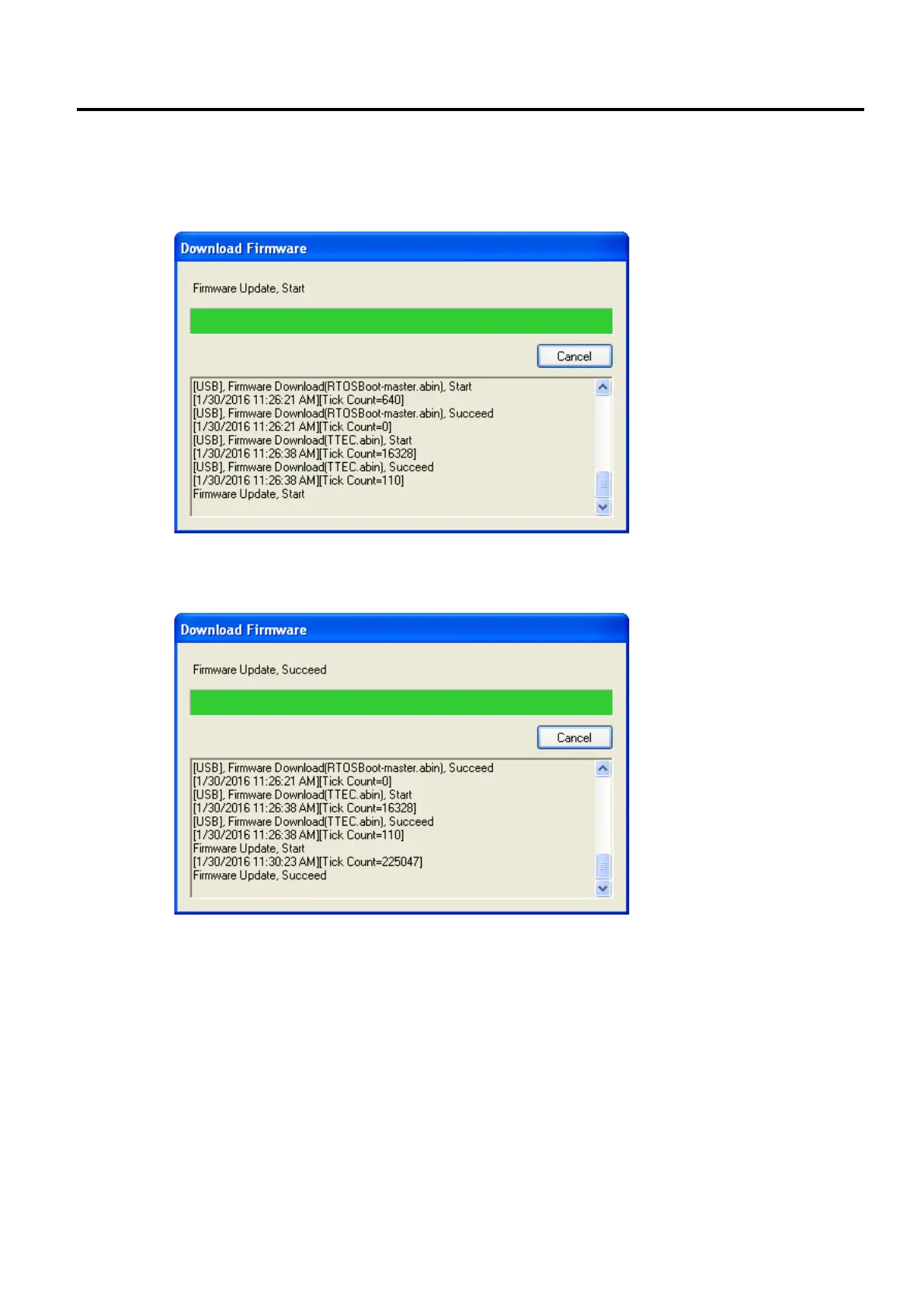

10. When the data transmission is complete, your printer starts to update its firmware. During the
update LED 2 turns to red and orange alternatively, while LED 1 turns to solid green. In the
Download Firmware dialog box, the message shows that your printer is updating the firmware.
11. Printer will restart automatically after the message “Firmware Update, Succeed” appears.

Toshiba B-FV4 Series Specifications

General

Resolution	203 dpi
Print Method	Thermal Transfer / Direct Thermal
2D Codes	Data Matrix, PDF417, QR Code, Maxi Code
Operating Temperature	5 – 40 °C
Storage Temperature	-20 – 60 °C
Power Supply	100-240 VAC, 50/60 Hz
Interfaces	USB, Serial (RS-232)
Media Width	25.4 – 112 mm
