ON–VEHICLE INSPECTION
1. INSPECT SPEEDOMETER
(a) Check the operation.
(1) Using a speedometer tester, inspect the speedometer fro allowable indication error and check
the operation of the odometer.
USA (mph):
Standard indication Allowable range
20 mph 18 – 24 mph
40 mph 38 – 44 mph
60 mph 56 – 66 mph
80 mph 78 – 88 mph
100 mph 98 – 110 mph
120 mph 118 – 132 mph
CANADA (km/h):
Standard indication Allowable range
20 km/h 17 – 24 km/h
40 km/h 38 – 46 km/h
60 km/h 57.5 – 67 km/h
80 km/h 77 – 88 km/h
100 km/h 96 – 109 km/h
120 km/h 115 – 130 km/h
140 km/h 134 – 151.5 km/h
160 km/h 153 – 173 km/h
NOTICE:
Tire wear and tire over or under inflation will increase the indication error.
(2) Check the deflection width of the speed meter indicator.
Reference: Below 0.5 km/h (0.3 mph)

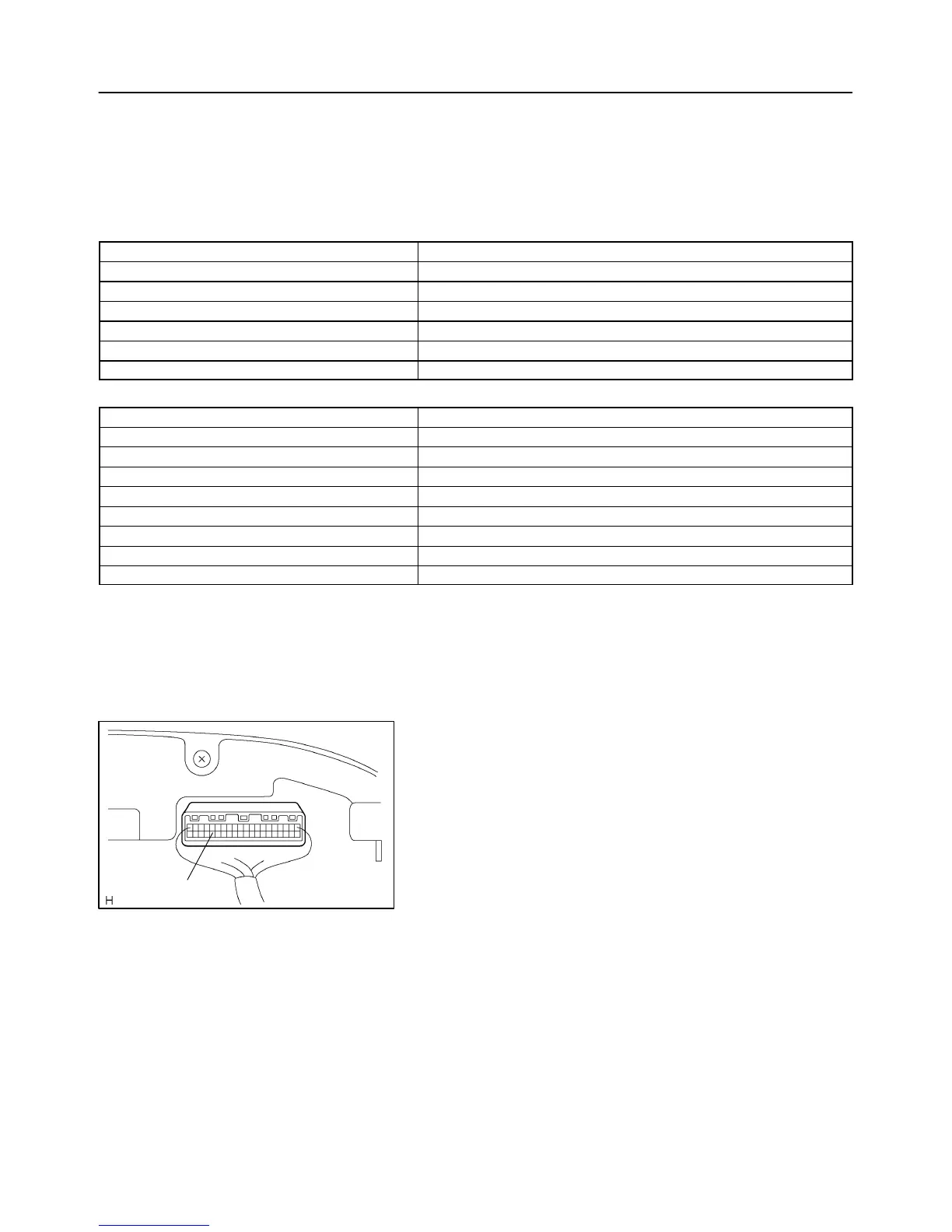

2. INSPECT OUTPUT SIGNAL OF VEHICLE SPEED
(a) Check for standard signal.
(1) While driving the vehicle at the speed of 10 km/h,
check the voltage between the terminals C7–36 of
the combination meter assy and body ground.
Standard: Fluctuation between 10 to 14 V or less is re-
peated 7 times within 1 sec.
NOTICE:
Check it with the ignition switch ON and the connector con-
nected.
