Toyota 2002 Camry - Rear Spoiler Sub-Assy Replacement

760BK–02
B56106
Clip
B56107
Clip
76–6
–EXTERIOR/INTERIOR TRIM REAR SPOILER SUB–ASSY
2709Author: Date:
2002 CAMRY REPAIR MANUAL (RM881U)
REAR SPOILER SUB–ASSY
REPLACEMENT
HINT:
Installation is in the reverse order of the removal. But the installation is indicated only when it has a point.
1. REMOVE LUGGAGE COMPARTMENT DOOR COVER
(a) Remove the 15 clips and luggage compartment door cover.
2. REMOVE REAR SPOILER SUB–ASSY
(a) Remove the 2 nuts.
(b) Put protective tape onto the body.
(c) Using a heat light, heat the spoiler 40 – 60C (104 – 140F).
NOTICE:
Do not heat the spoiler excessively.

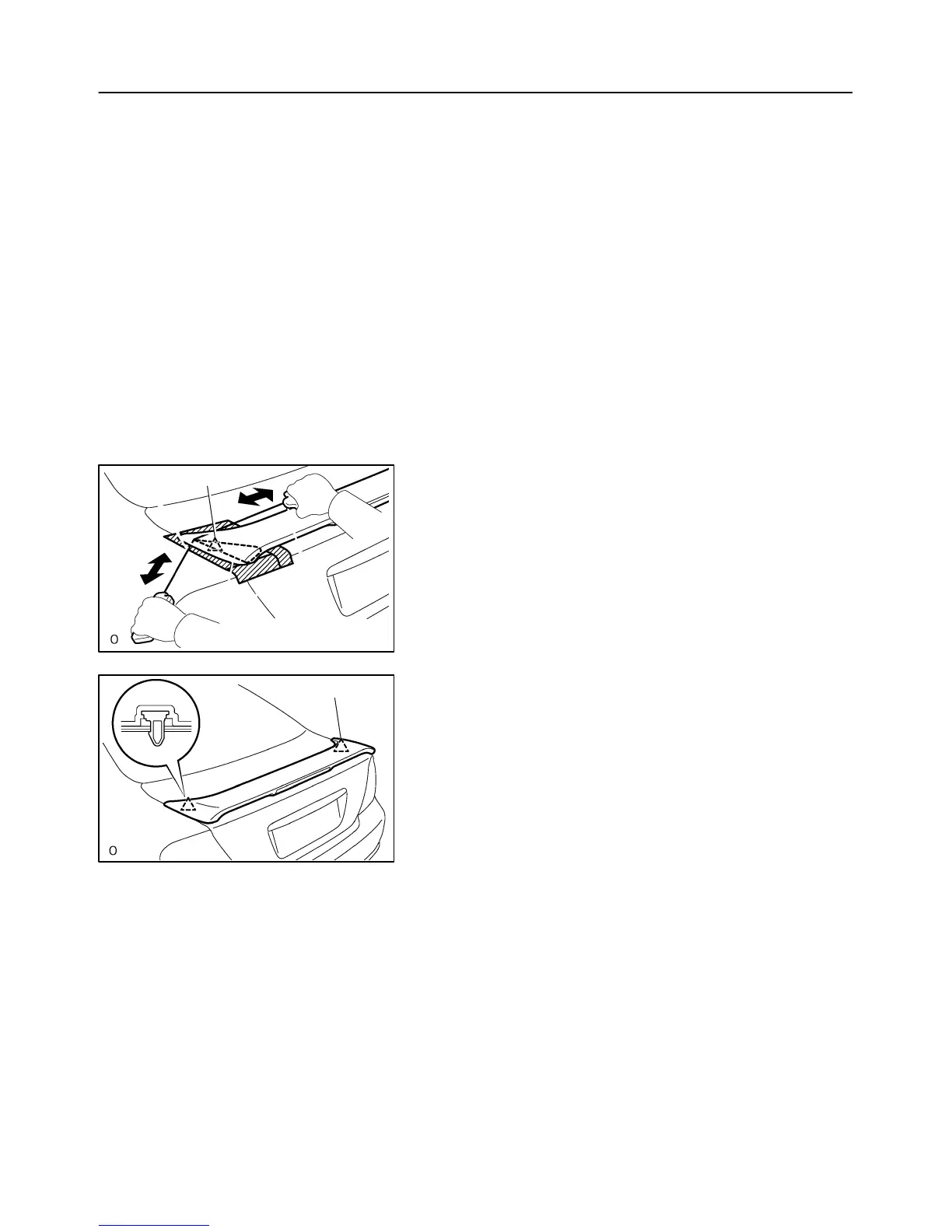

(d) Tie both piano wire ends to wooden blocks or similar ob-
jects.
(1) Scrape the adhesive tape off by pulling the piano
wire as shown in the illustration.
(2) If reusing the rear spoiler, take care not to damage
the rear spoiler.
NOTICE:
Do not damage the body.
(e) Disconnect the connector.
(f) Remove the 2 clips and rear spoiler.
3. REMOVE CENTER STOP LAMP ASSY (See page 65–16)
4. INSTALL REAR SPOILER SUB–ASSY
(a) Using a heat light, heat the body mounting surface to 40 – 60C (104 – 140F).
NOTICE:
Do not heat the body excessively.
(b) Remove the protective tape from the body.
(c) Wipe off the stains with cleaner.
