–ENGINE MECHANICAL FAN AND GENERATOR V BELT (2AZ–FE)
14–5
1527Author: Date:
2002 CAMRY REPAIR MANUAL (RM881U)
FAN AND GENERATOR V BELT (2AZ–FE)
REPLACEMENT

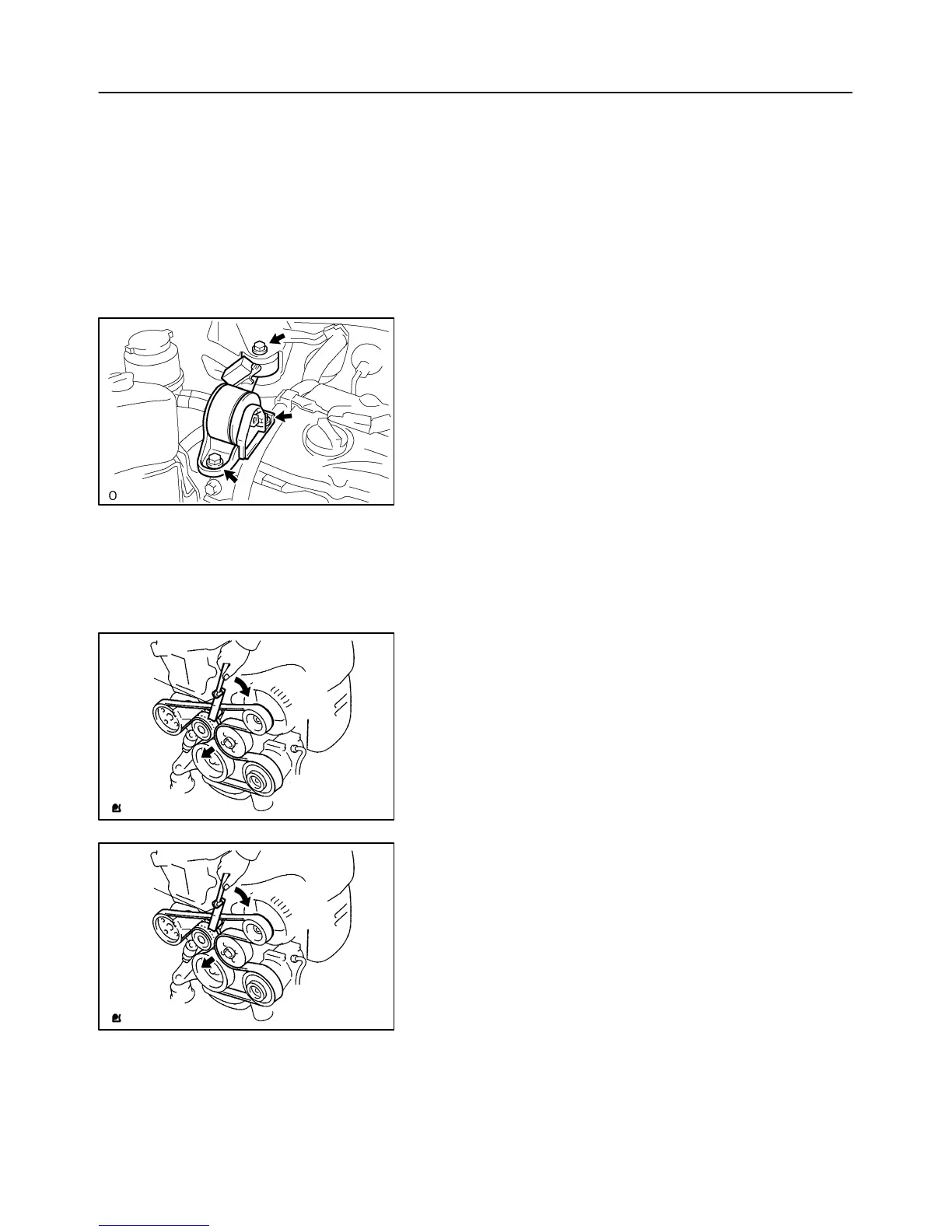

1. REMOVE FRONT WHEEL RH
2. REMOVE FRONT FENDER APRON SEAL RH
3. REMOVE ENGINE COVER SUB–ASSY NO.1
4. REMOVE ENGINE MOVING CONTROL ROD
W/BRACKET
(a) Remove the 3 bolts and engine mounting control rod
w/
bracket.
5. REMOVE ENGINE MOUNTING STAY NO.2 RH
6. REMOVE ENGINE MOUNTING BRACKET NO.2 RH
7. REMOVE FAN AND GENERATOR V BELT
(a) Slowly turn the drive belt tensioner clockwise in more than
3 seconds, and remove the drive bolt by using SST.
SST 09249–63010
8. INSTALL FAN AND GENERATOR V BELT
(a) Slowly turn the drive belt tensioner clockwise in more than
3 seconds, and install the drive bolt by using SST.
SST 09249–63010
9. INSTALL ENGINE MOUNTING BRACKET NO.2 RH
Torque: 52 N⋅m (531 kgf⋅cm, 38 ft⋅lbf)
