5105K–01
F41916
TYPE B VANE PUMP:
Pulley
Pulley
TYPE A VANE PUMP:
–POWER STEERING POWER STEERING SYSTEM
51–1
2268Author: Date:
2002 CAMRY REPAIR MANUAL (RM881U)
POWER STEERING SYSTEM
PRECAUTION
1. HANDLING PRECAUTIONS ON STEERING SYSTEM
(a) Care must be taken to when replacing parts. Incorrect re-
placement could affect the performance of the steering
system and result in a driving hazard.

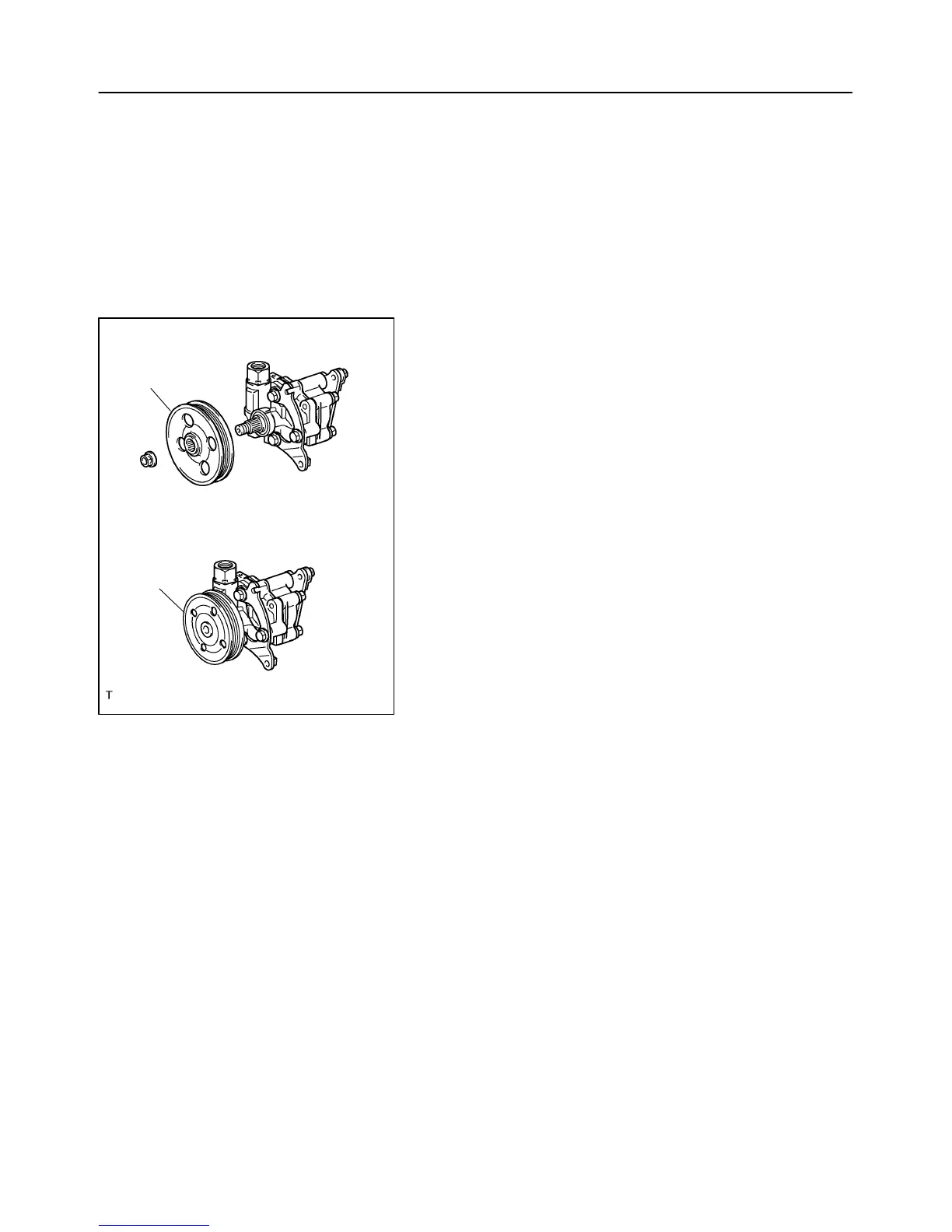

(b) 1MZ–FE engine has 2 types of vane pump assy.
HINT:
TYPE A VANE PUMP:
Vane pump pulley can be removed from the vane pump shaft
(See page 51–15).
TYPE B VANE PUMP:
Vane pump pulley cannot be removed from the vane pump
shaft (See page 51–15).
(c) ”Sport Grade” indicates the follwing models
(See page 51–15).
MCV30L–AEPSKA
MCV30L–CEPSKA
2. HANDLING PRECAUTIONS ON SRS AIRBAG SYSTEM
(a) The CAMRY is equipped with SRS (Supplemental Restraint System) such as the driver airbag and
front passenger airbag. Failure to carry out service operation in correct sequence could cause the SRS
to unexpectedly deploy during servicing, possibly leading to a serious accident. Before servicing (in-
cluding removal or installation of parts, inspection or replacement), be sure to read the precautionary
notice for the supplemental restraint system (See page 60–1).
To Next Page
