Toyota 2002 Camry - Differential Case Assy (E351) Overhaul

4104X–01
C83559
C83560
Matchmarks
C83561
C83562
–MANUAL TRANSMISSION/TRANSAXLE DIFFERENTIAL CASE ASSY (E351)
41–81
2211Author: Date:
2002 CAMRY REPAIR MANUAL (RM881U)
DIFFERENTIAL CASE ASSY (E351)
OVERHAUL

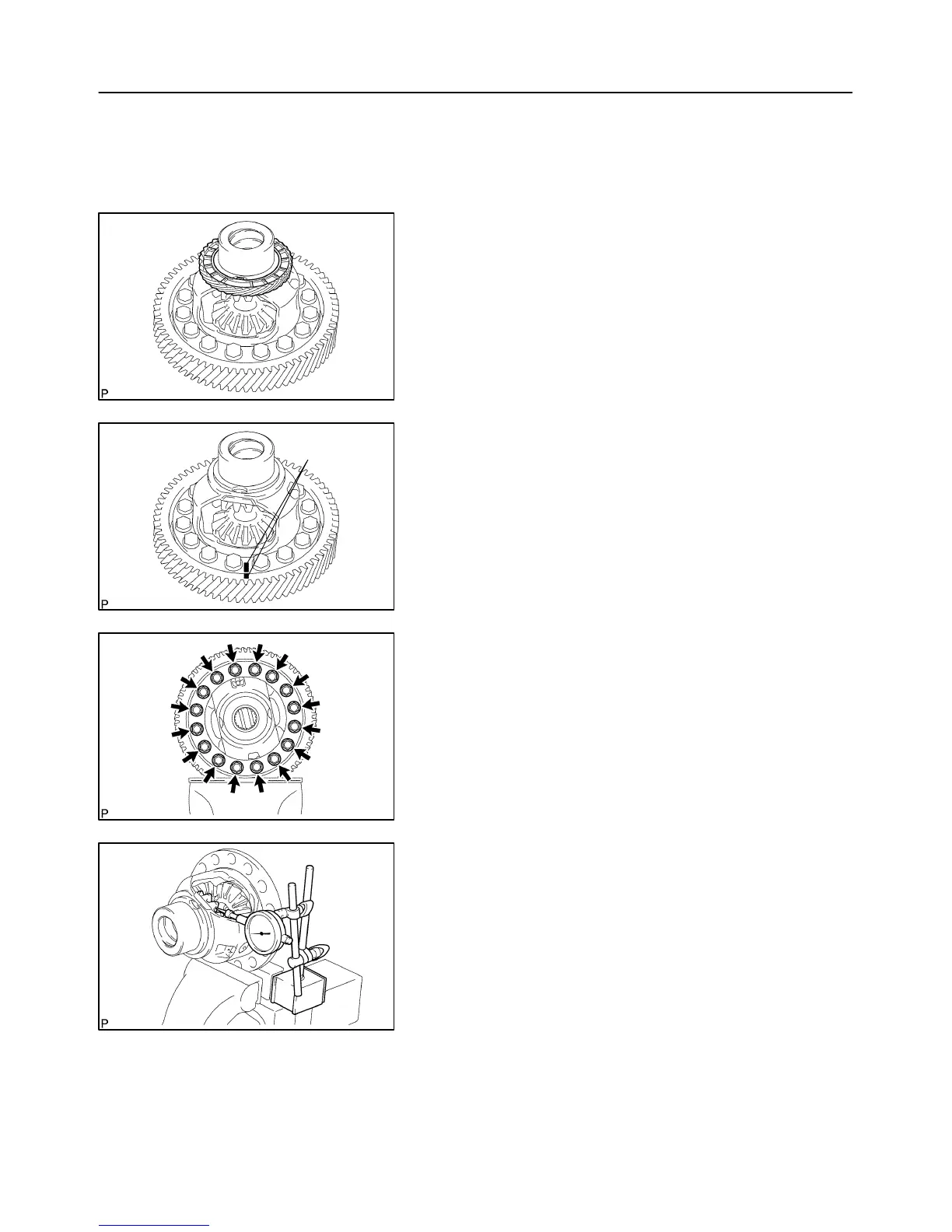

1. REMOVE SPEEDOMETER DRIVE (MTM) GEAR
(a) Remove the speedometer drive (MTM) gear from front dif-
ferential case assy.
2. REMOVE FRONT DIFFERENTIAL RING GEAR
(a) Place machmarks on the front differential ring gear and
from the front differential case.
(b) Remove the 16 bolts. Using a plastic hammer, remove the
front differential case.
3. INSPECT FRONT DIFFERENTIAL SIDE GEAR
BACKLASH
(a) Fixing the front differential pinion to the front differential
case side. Using a dial indicator, measure the front differ-
ential side gear backlash.
Standard backlash:
0.05 – 0.20 mm (0.0020 – 0.0079 in.)
