Toyota 2002 Camry - Install Piston; Install Piston Ring Set

P12418
A32958
Front Mark
Front Mark
A13497
Code Mark (2N)
Upward
Painted Mark
No. 1
No. 2
A52526
Front
Side Rail Upper
Side Rail Lower
No. 2
Expander
Compression
No. 1 and
A52527
14–132
–ENGINE MECHANICAL CYLINDER BLOCK (2AZ–FE)
1656Author: Date:
2002 CAMRY REPAIR MANUAL (RM881U)

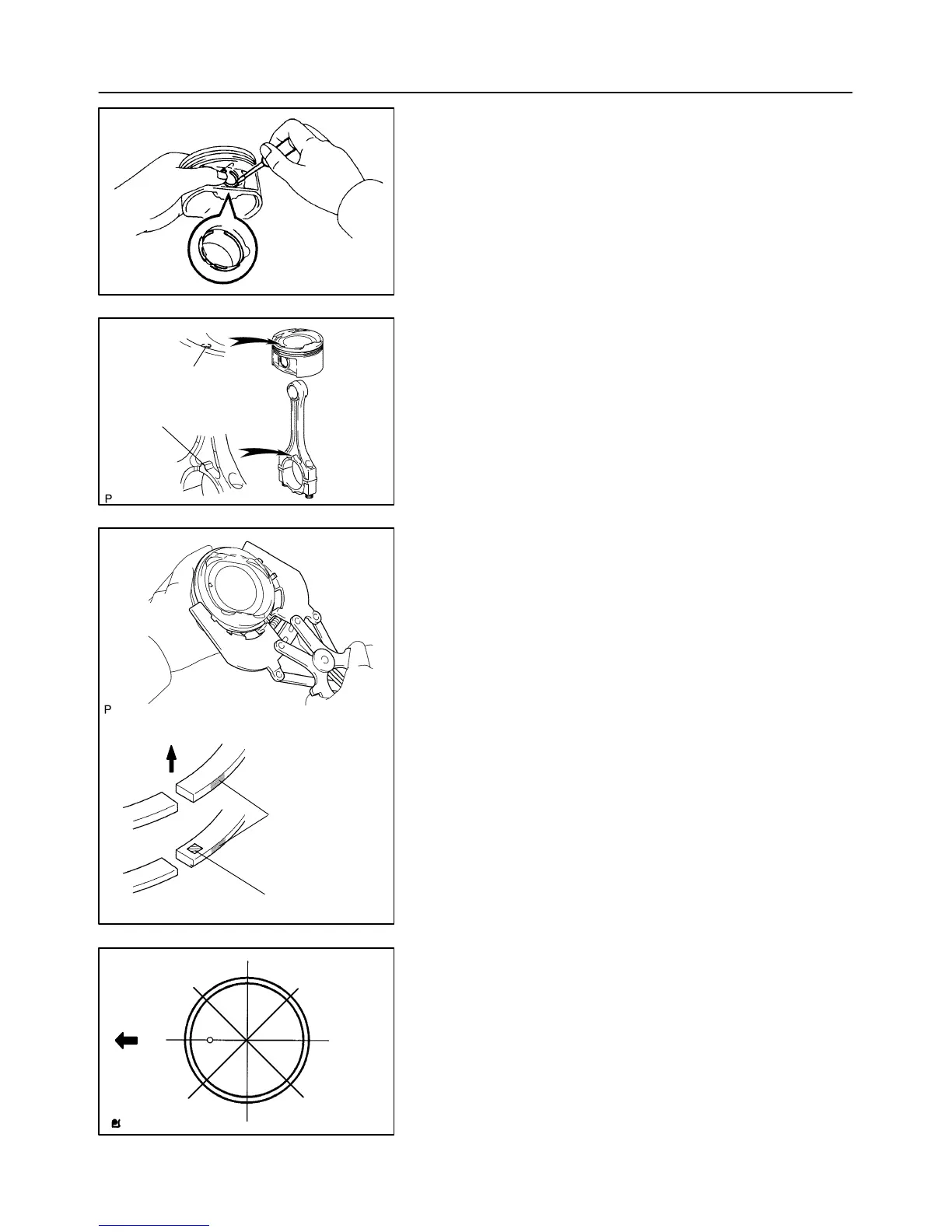

30. INSTALL PISTON
(a) Using a small screwdriver, install a new snap ring at one
end of the piston pin hole.
(b) Gradually hat the piston to 80 – 90C (176 – 194F).
(c) Align the front marks on the piston with connecting rod,
and push in the piston with your thumb.
(d) Using a small screwdriver, install a new snap ring on the
other end of the piston pin hole.
31. INSTALL PISTON RING SET
(a) Install the oil ring expander and 2 side rails by hand.
(b) Using a piston ring expander, install the 2 compression
rings with the point mark facing right side.
NOTICE:
Install the compression ring No. 2 with the code mark (2N)
facing upward.
(c) Position the piston rings so that the ring ends are as
shown.
