15031–01
A60080
Non–reusable part
N·m (kgf·cm, ft·lbf)
: Specified torque
Exhaust Pipe Gasket
Oxygen Sensor
Exhaust Pipe Assy Front
Exhaust Pipe No.1 Support Bracket
Floor Panel Brace Rear
Exhaust Pipe Assy Center
Exhaust Pipe Damper
T
ail Pipe Assy
56 (571, 41)
56 (571, 41)
19 (194, 14)
33 (337, 24)
62 (633, 46)
44 (450, 33)
A/T
:
Exhaust Pipe Gasket
Exhaust Pipe Gasket
19.5
(199 ,14)
33 (337, 24)
Exhaust Pipe No.1 Support Bracket
–

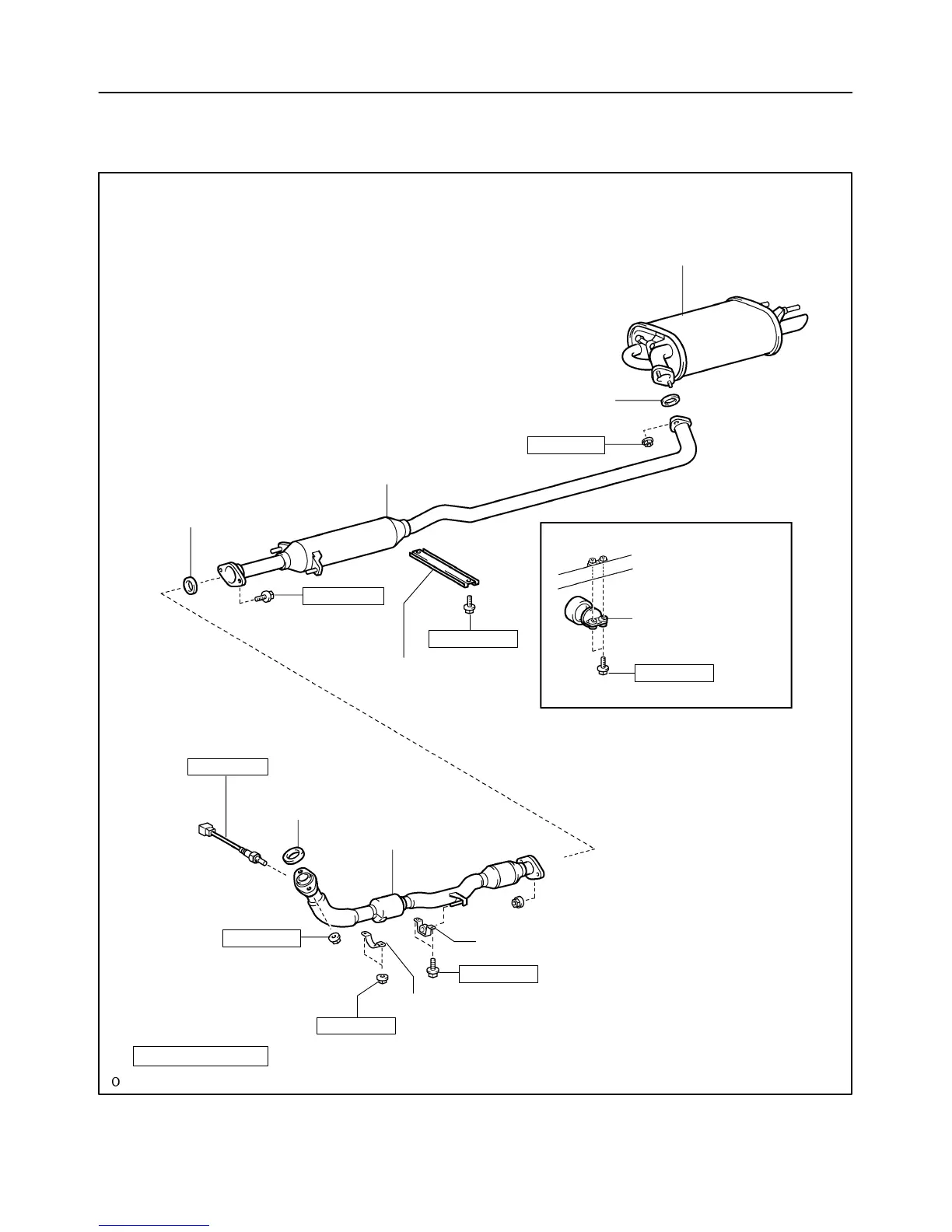

EXHAUST
EXHAUST PIPE
(2AZ–FE)
15–1
1814
Author:
Date:
2002 CAMRY REP
AIR MANUAL (RM881U)
EXHAUST PIPE
(2AZ–FE)
COMPONENTS
351
353
