32–14
–BRAKE BRAKE MASTER CYLINDER SUB–ASSY
2002Author: Date:
2002 CAMRY REPAIR MANUAL (RM881U)

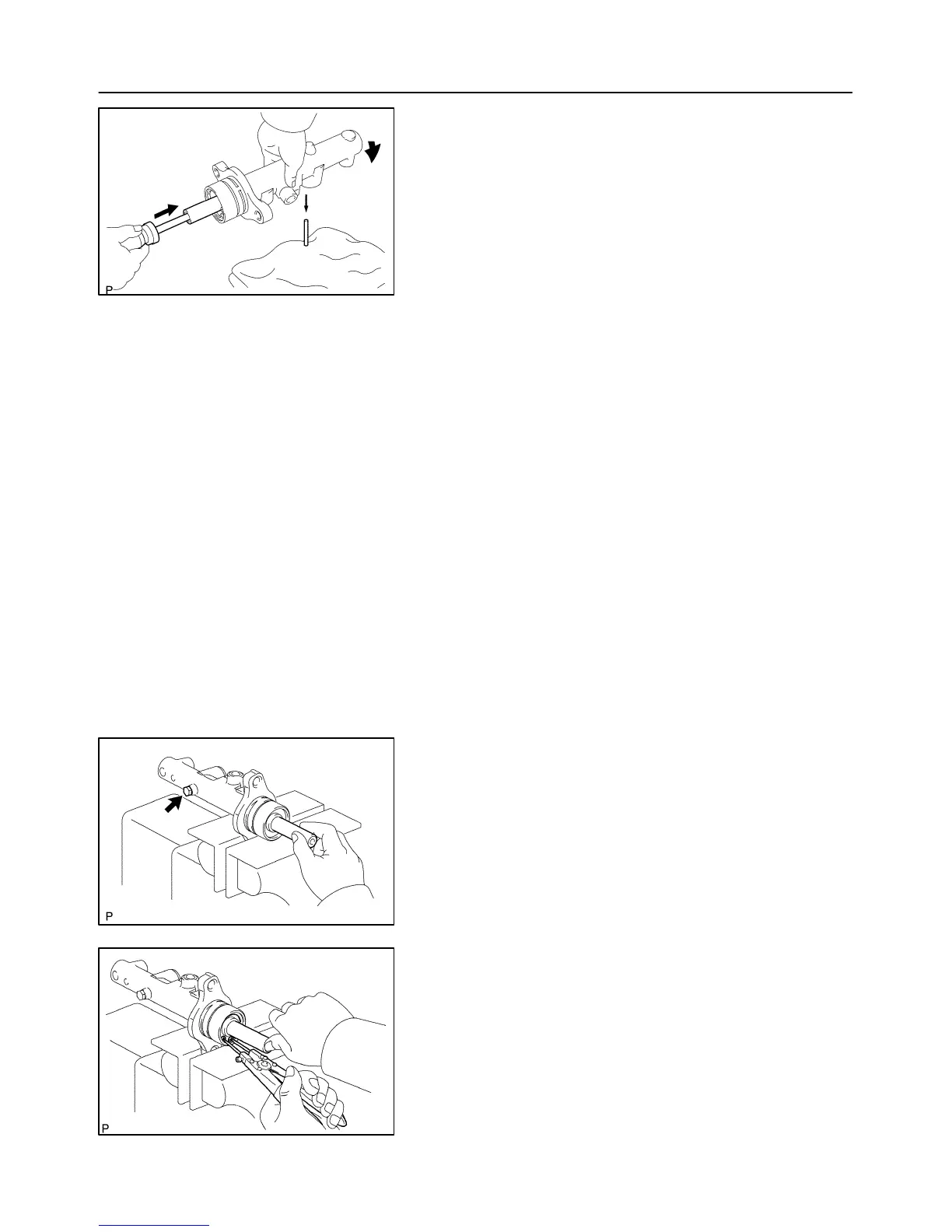

(d) Push in the piston with a screwdriver, and remove the
straight pin by turning over the cylinder body.
HINT:
Tape the screwdriver tip before use.
(e) Remove the No.1 and No.2 piston sub–assy and 2
springs by hand, pulling straight out, not at an angle.
10. INSPECT MASTER CYLINDER BODY
(a) Check the cylinder bore for rust or scoring.
11. INSTALL BRAKE MASTER CYLINDER KIT(W/O VSC)
(a) Place master cylinder in vise.
(b) Apply the lithium soap base grycol grease on new No.1
and No.2 piston sub–assy.
(c) Install the No.2 and No.1 piston sub–assy.
NOTICE:
If the piston is inserted at an angle, there is a possibil-
ity that the cylinder bore could be damaged.
Be careful not to damage the rubber lips on the pis-
tons.
(d) Push in the piston and install a new gasket and a new pis-
ton stopper bolt.
Torque: 10 N⋅m (100 kgf⋅cm, 7 ft⋅lbf)
(e) Push in the piston and install the snap ring with snap ring
pliers.
(f) Apply the lithium soap base grycol grease on a new O–
ring and install the O–ring to the master cylinder.
To Next Page
