C69509
C70509
A
B
C69768
C69514
41–30
–MANUAL TRANSMISSION/TRANSAXLE MANUAL TRANSAXLE ASSY (E351)
2160Author: Date:
2002 CAMRY REPAIR MANUAL (RM881U)

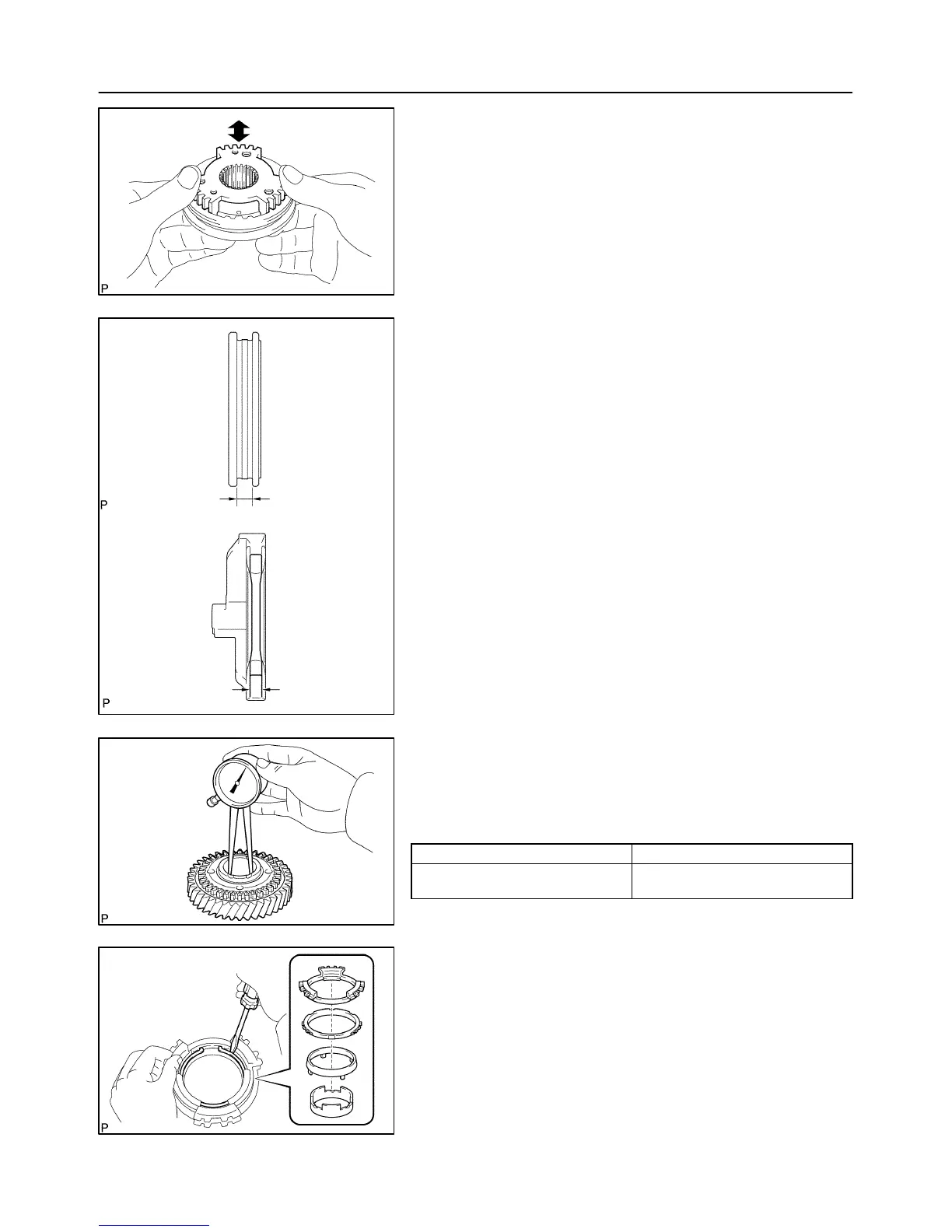

61. INSPECT TRANSMISSION CLUTCH HUB NO.3
(a) Inspect the sliding condition between transmission clutch
hub No.3 and transmission hub sleeve No.3.
(b) Inspect tip of spline gear on the transmission hub sleeve
No.3 for wear.
62. INSPECT TRANSMISSION HUB SLEEVE NO.3
(a) Using vernier calipers, measure the transmission hub
sleeve No.3 groove and the thickness of the claw part on
gear shift fork No.3, and calculate the clearance.
Standard clearance:
0.15 – 0.35 mm (0.0059 – 0.0138 in.) {A – B}
If the clearance is out of the specification, replace the transmis-
sion hub sleeve No.3 and gear shift fork No.3 with the new one.
63. INSPECT 5TH GEAR
(a) Using a calipers gauge, measure the inside diameter of
the 5th gear.
Inside diameter: mm (in.)
Standard inside diameter Maximum inside diameter
34.981 – 34.997
(1.3772 – 1.3778)
34.997
(1.3778)
If the inner diameter is exceeds than the maximum, replace the
5th gear.
64. INSTALL SYNCHRONIZER PULL RING
(a) Install the synchronizer middle ring No.5, synchronizer
ring outer No.5 and synchronizer pull ring to the synchro-
nizer ring inner No.5. using a screwdriver, fix with snap
ring.
