Encompass 4 Reader System Guide
4-18

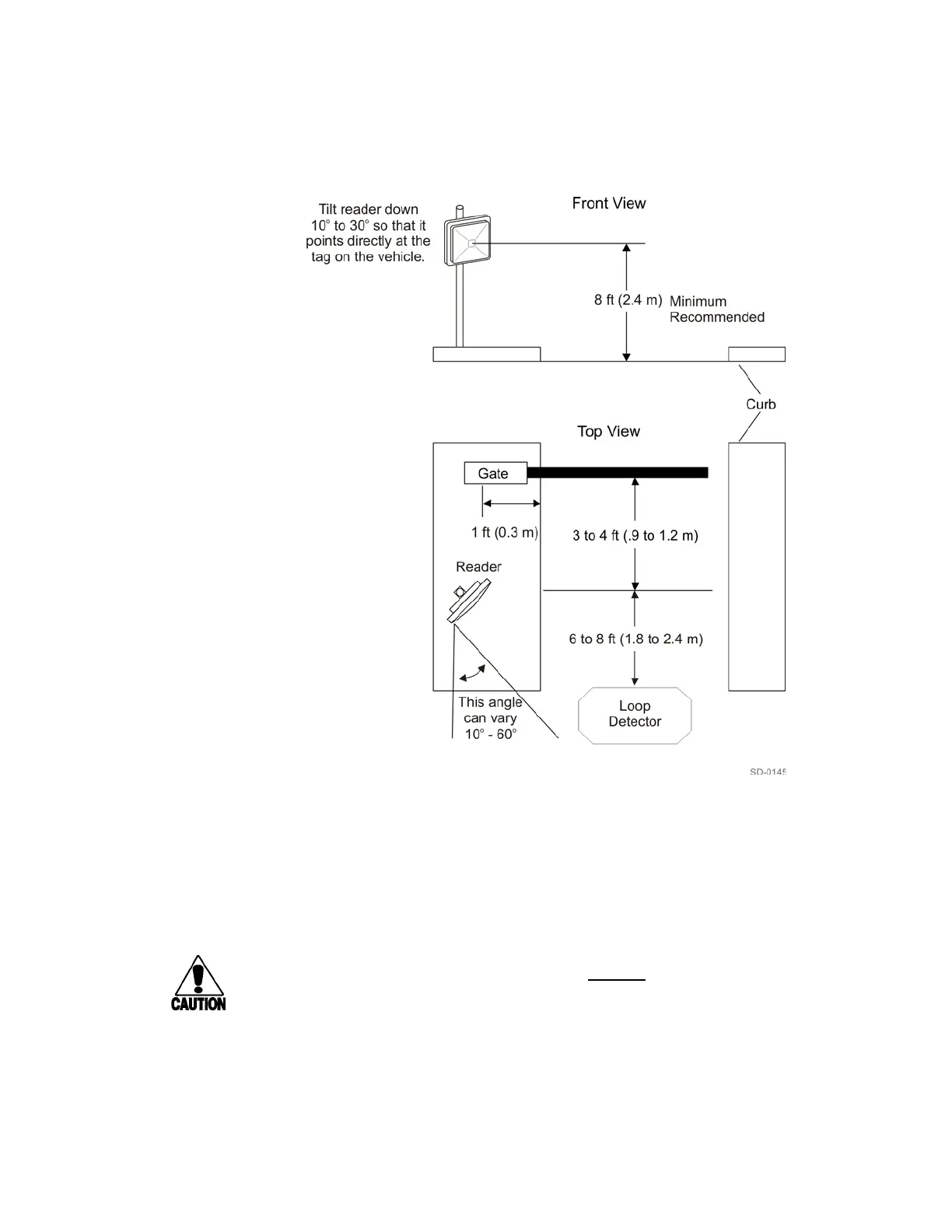

Figure 4-10 Front and Top Views of the Encompass 4 Reader Position
Note: The dimensions in Figure 4-10 are for demonstration purposes only and are
approximations for sites using the older ATA-type
tags. Actual dimensions vary as
lane geometry and tag style varies from site to site. Adjust the Encompass 4 Reader
matching site and tag mounting positions to provide the most direct line of sight to the
tags.
Caution
To ensure reliable reader operation, TransCore
strongly advises that you follow the
National Electric Code for lightning protection for the locale where you are install-
ing the Encompass 4 Reader.
