Encompass 4 Reader System Guide
3-10
Caution
Ensure that the tag is correctly located before touch
ing it to the glass. Once the
sticker tag is applied to the glass, it cannot be moved without damage to the tag.
5. Holding the sticker tag by its edges (Figure 3-9), position the tag in the correct
area of the windshield (determined in Step 1), making sure the tag is oriented
horizontally and is at
least two inches (5 cm) from the windshield frame and 0.75
inch (1.9 cm) from the mirror post.

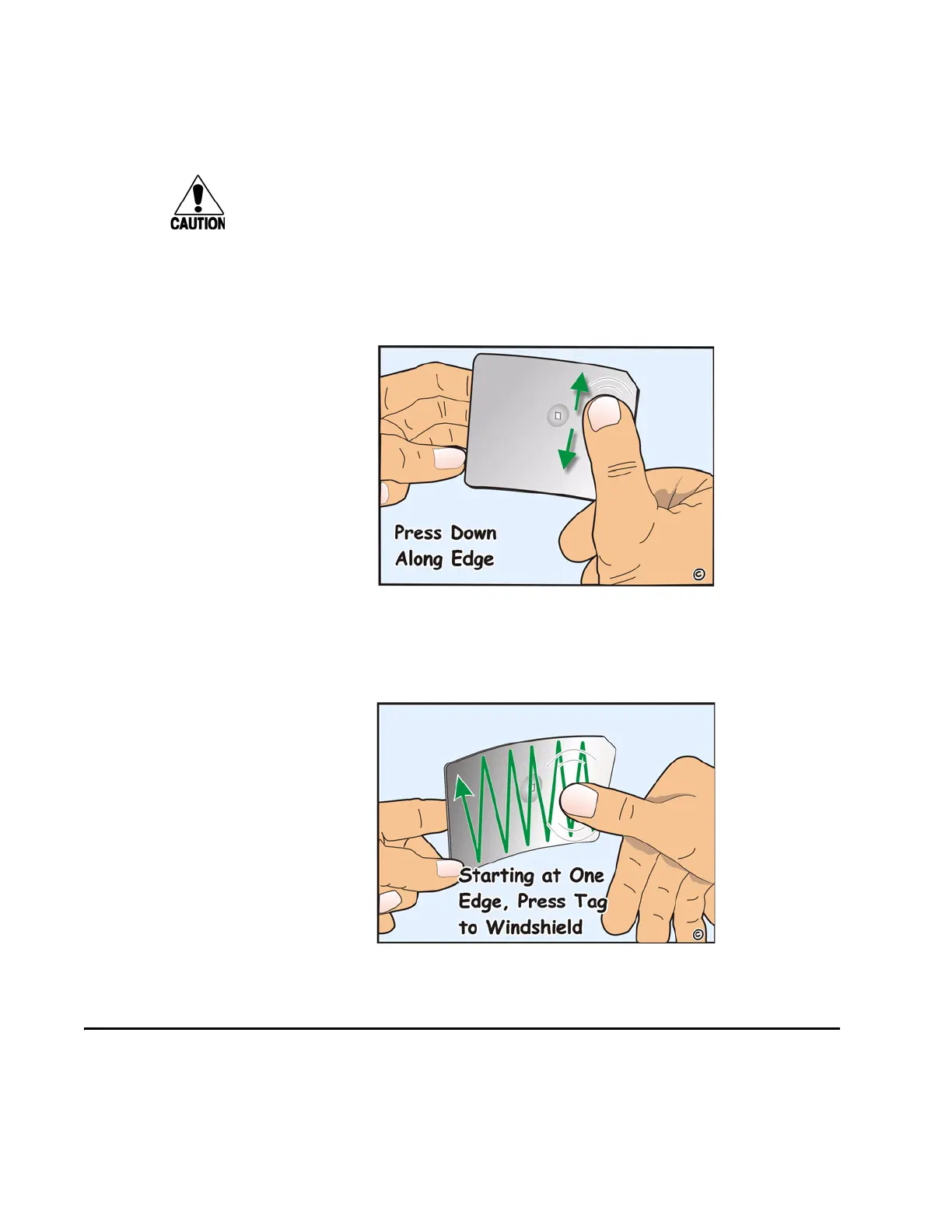

Figure 3-9 Applying eGo Plus Sticker Tag to Windshield
6. Press the sticker tag firmly against the glass and gently rub over the entire tag
surface. Ensure that no air bubbles remain between the sticker tag and the
windshield (Figure 3-10).
Figure 3-10 Second Step of eGo Plus Sticker Tag Application
Removing eGo Plus Sticker Tags
Peel the eGo Plus Sticker Tags from the windshield and clean any reside using isopro-
pyl alcohol or commercial glass cleaner.
The tag is inoperable once removed.
