TransCore encompass 4 - Figure 4-12 Wall Mount Bracket Attached to the Encompass 4 Reader

Encompass 4 Reader System Guide
4-20
2. Using the 5/32-inch Allen wrench, remove the factory-mounte
d bracket attached
to the back of the Encompass 4 Reader. Remove all four Allen screws and lock
washers from the bracket and set aside.
3. Unpack the wall-mount bracket accessory kit.
4. Using the Allen screws and lock washers set aside in
Step 2, attach the wall-
mount bracket to the back of the Encompass 4 Reader, as shown in Figure 4-12.

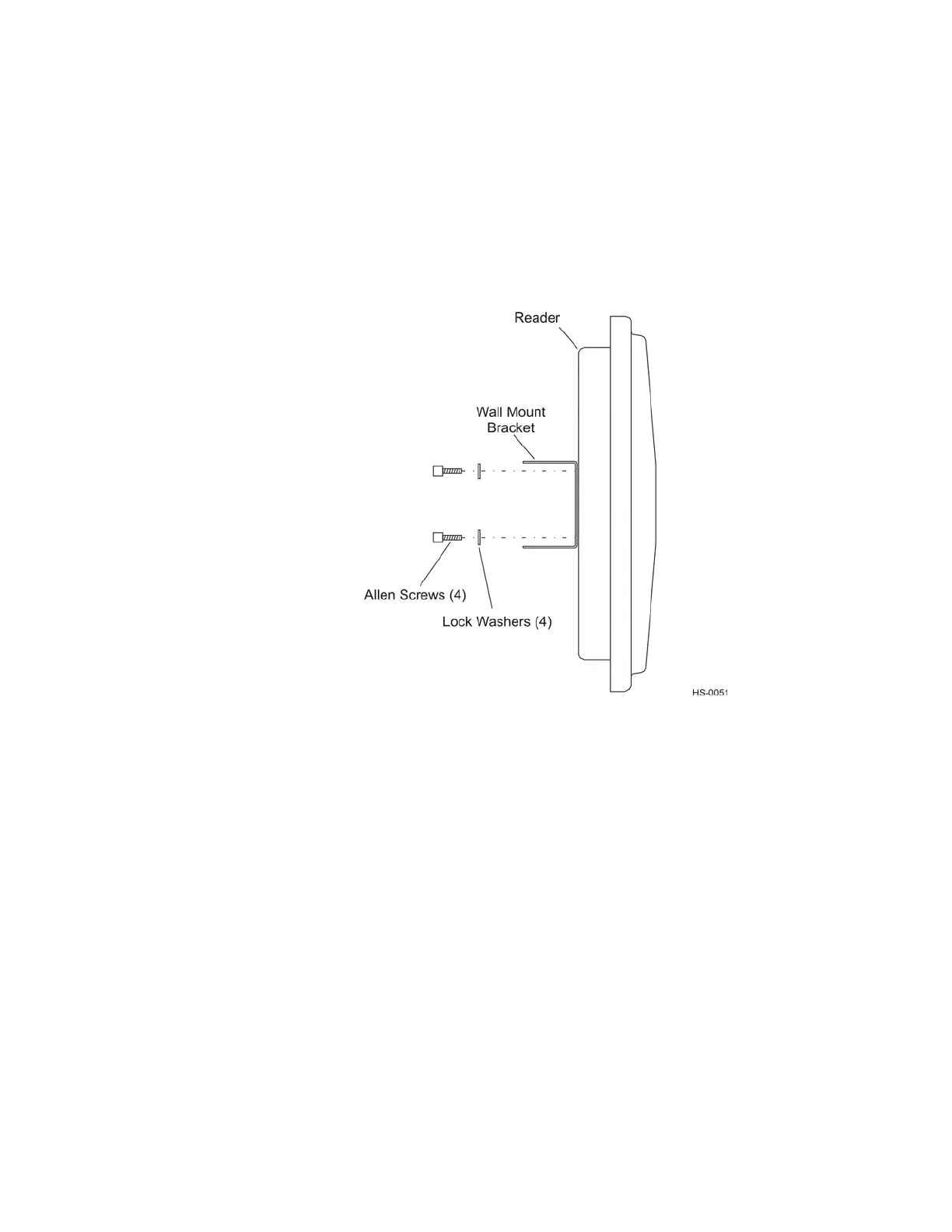

Figure 4-12 Wall Mount Bracket Attached to the Encompass 4 Reader
5. Tighten the screws to secure the bracket.
6. Using the four screws and washers supplied with the wall-mount bracket, attach
the factory-mounted bracket
to the wall mount bracket, lining up the four outside
screw holes as shown in Figure 4-13.
