Encompass 4 Reader System Guide
4-24
1. Terminate the reader end of the RF cable with
any N-type load or RF attenuator
(Figure 4-16).

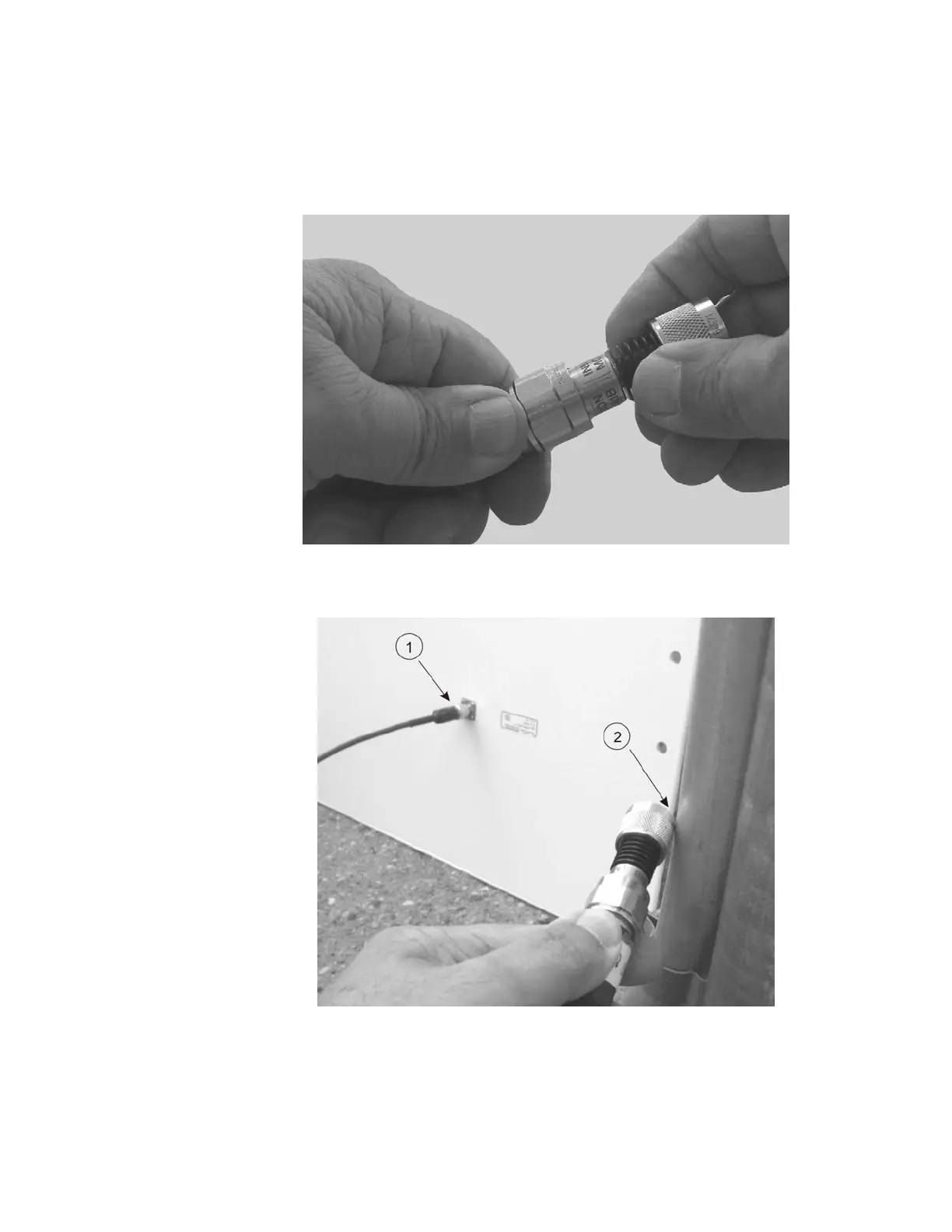

Figure 4-16 Connect RF N-type Load or Attenuator to Reader Cable End
2. Connect the RF cable to the antenna (see item 1 in Figure 4-17).
Figure 4-17 Short Load to Earth Ground
3. Short the outer metal case of the load or attenuator to Earth Ground for
approximately 10 seconds (see item 2 in Figure 4-17). In this example, the
installer is using the electrical conduit for Earth Ground.
