Installing the Encompass 4 Reader
4-21

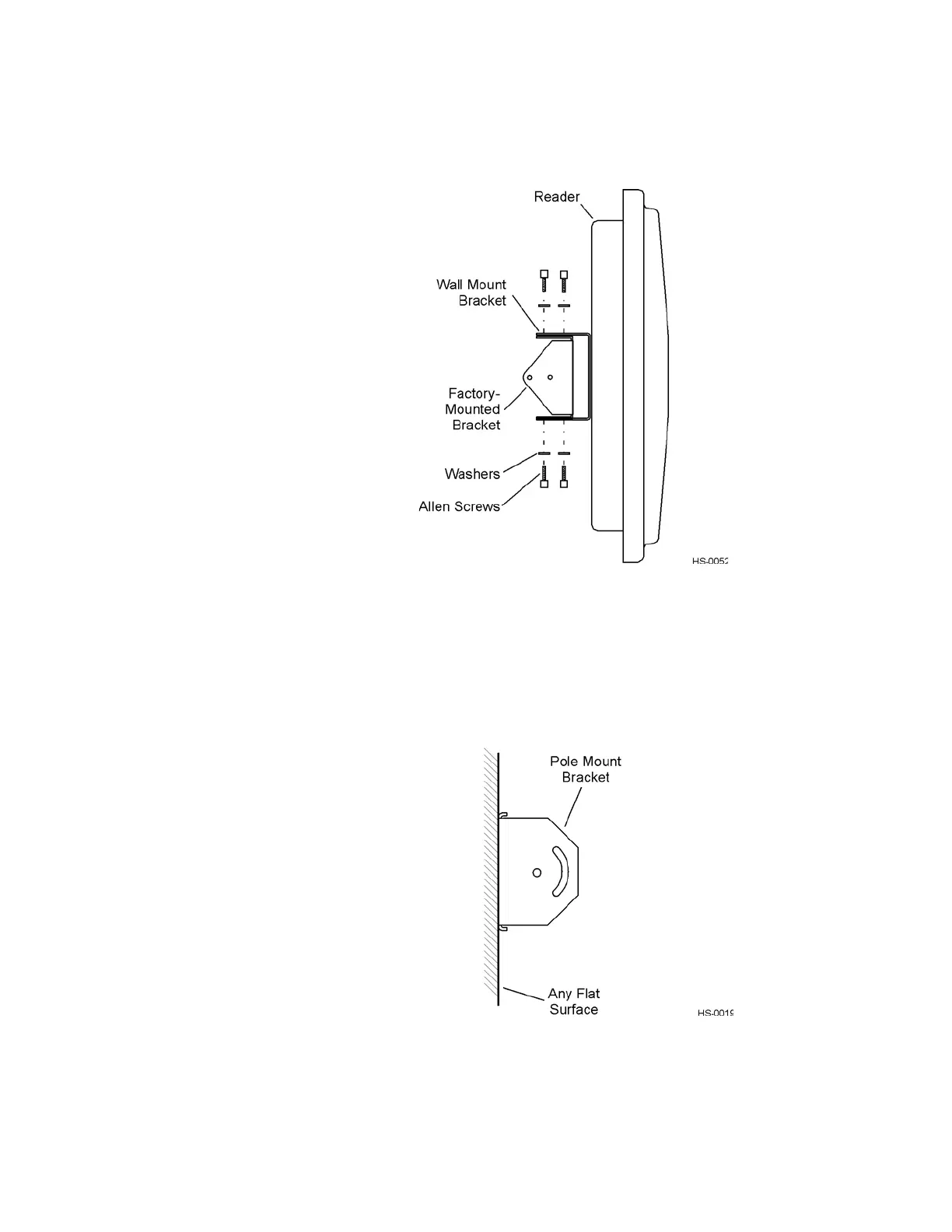

Figure 4-13 Factory-Mounted Bracket Attached to Wall Mount Bracket
7. Tighten lightly, since you will want to adjust the bracket later. This subassembly
allows you to aim the Encompass 4 Reader left or right when all three brackets
are assembled.
8. Mount the pole-mount bracket
to the wall, ceiling, or fixture using appropriate
anchors as shown in Figure 4-14.
Figure 4-14 Pole Mount Bracket Attached to Wall
