Developing the Site Plan
2-15
Parking Garage with Ticket Island Configuration
Figure 2-7 illustrates a parking garage application with each Encompass 4 Reader
mounted on the ticket island to read tags mounted
on the inside center windshield or
on the center front vehicle bumper. The Encompass 4 Reader placement may require
the vehicle to stop before the gate opens.

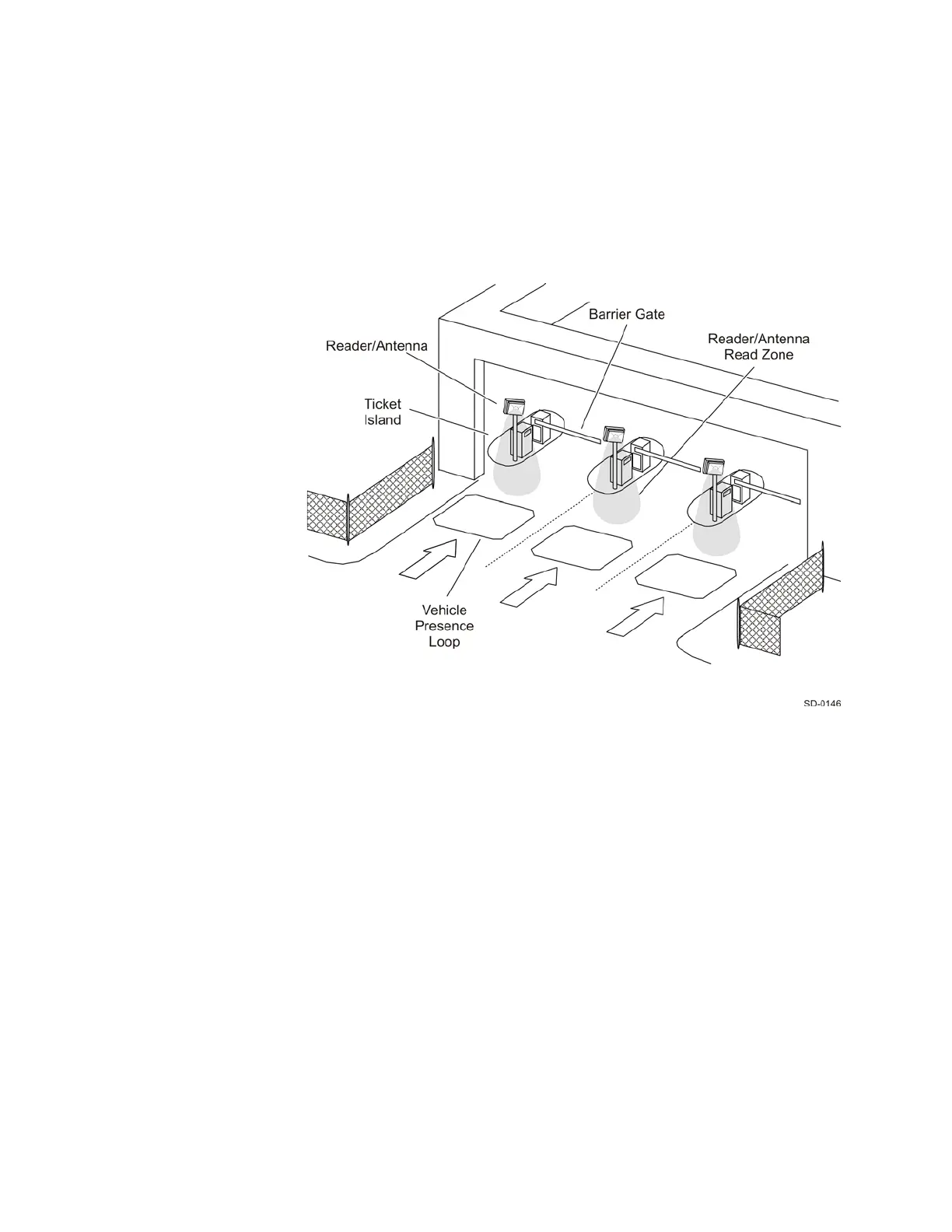

Figure 2-7 Parking Garage Application
Overhead Reader Installation Configuration
Another option for Encompass 4 Reader placement is to mount it overhead in each
lane as illustrated in Figure 2-8. This illustration assumes that tags are mounted on the
inside center windshield or center bumper of the vehicle.
