TransCore encompass 4 - Polarization

Developing the Site Plan
2-5
Polarization
The polarization of the tag must be aligned in the same direction as the Encompass
4 Reader, as shown in Figure 2-1.
Note: Matchi
ng the tag and antenna polarization is critical to obtain optimal system
performance
.

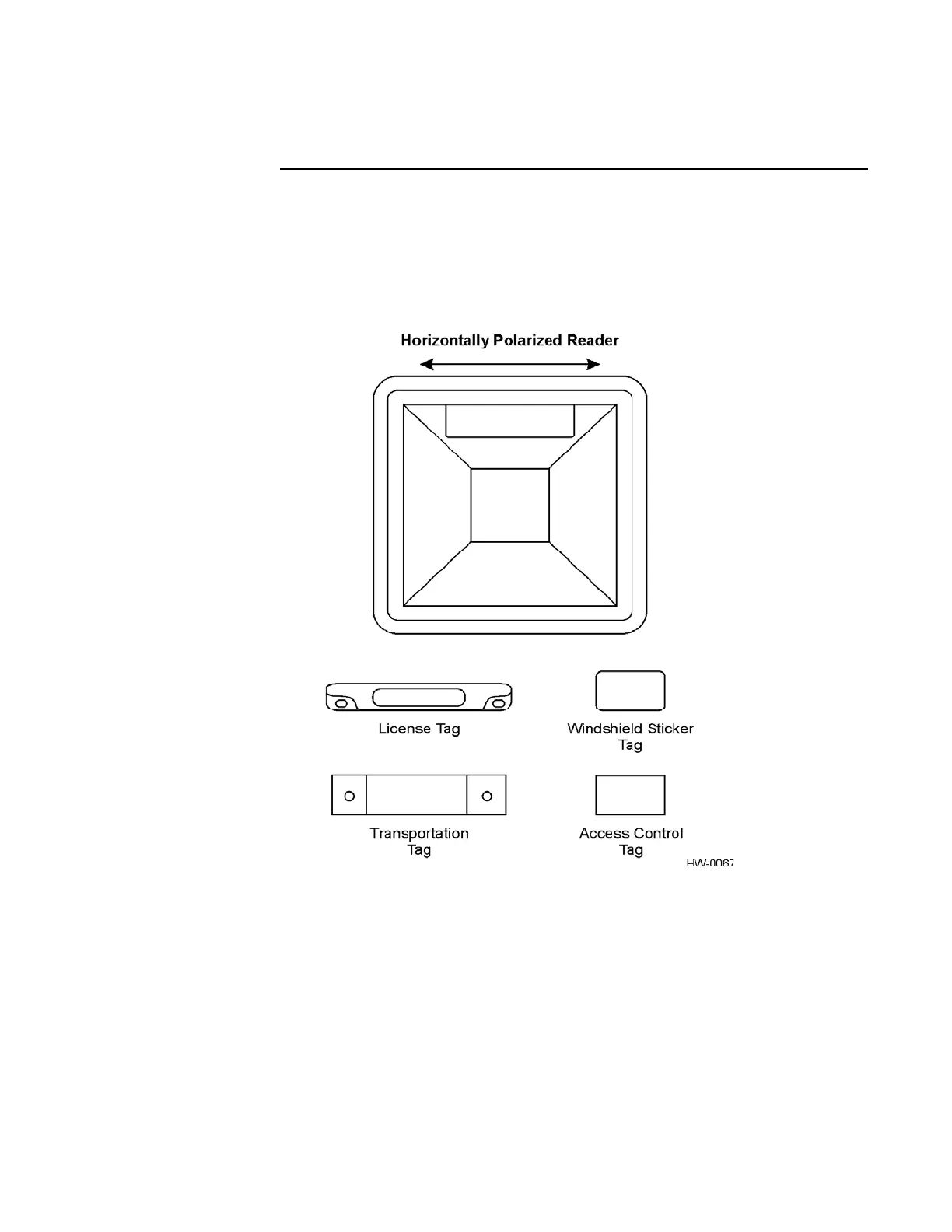

Figure 2-1 Tag and Reader Orientation
