TransCore encompass 4 - Figure 2-3 Typical Tag Positions for U.S. Drivers Side Reader

Developing the Site Plan
2-7
If the Encompass 4 Reader is installed
on a pole or wall to the left of the vehicle, opti-
mal tag position is on the left side of the vehicle as
illustrated in Figure 2-3.

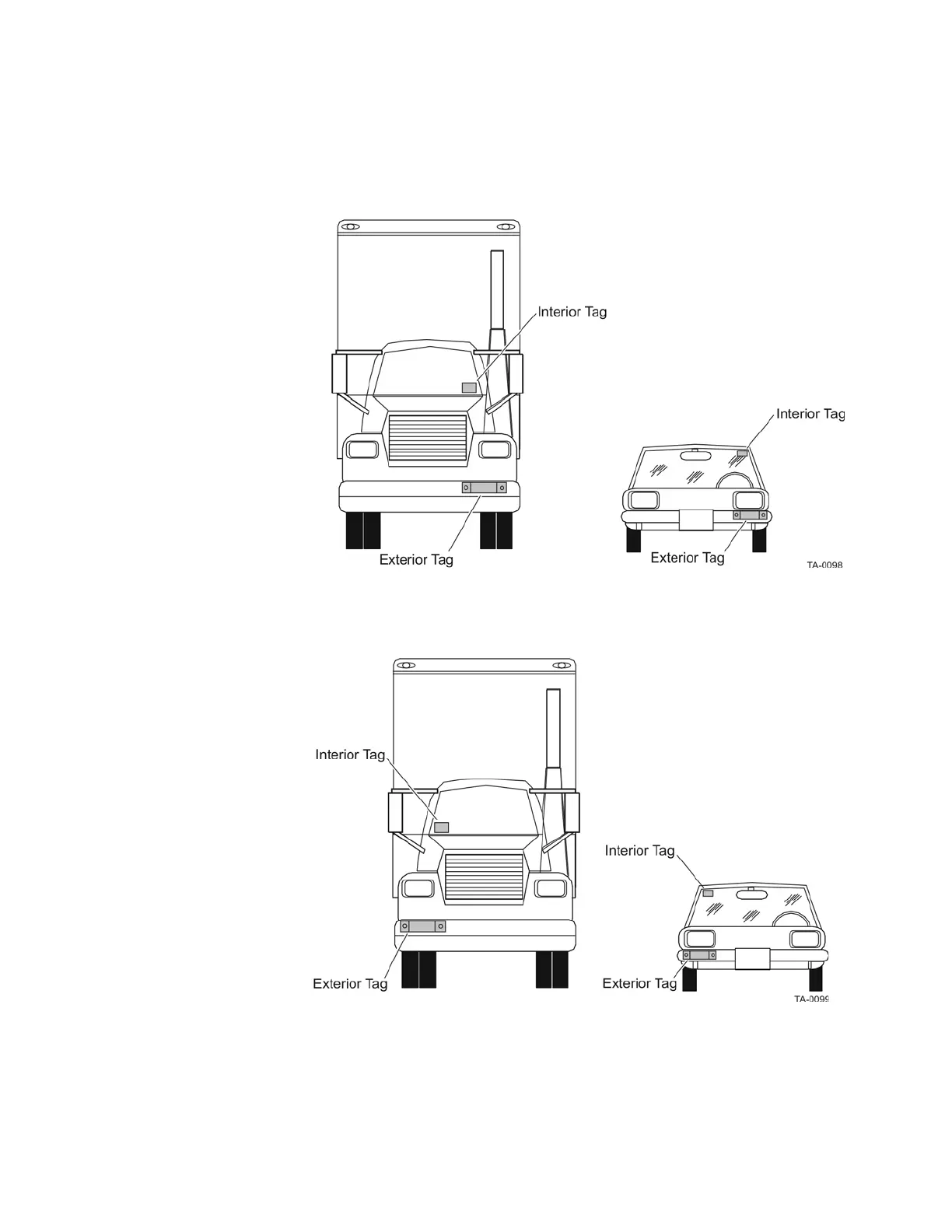

Figure 2-3 Typical Tag Positions for U.S. Driver’s Side Reader
If an Encompass 4 Reader is installed on a pole or wall to the right of the vehicle, opti-
mal tag position is on the right side of the
vehicle as illustrated in Figure 2-4.
Figure 2-4 Typical Tag Positions for U.S. Passenger’s Side Reader
