TransCore encompass 4 - Figure 4-15 Connecting the Encompass 4 Assembly to Pole Mount Bracket

Encompass 4 Reader System Guide
4-22
9. Mount the Encompass 4 Reader to the pole-mount bracket us
ing Allen screws, as
shown in Figure 4-15.

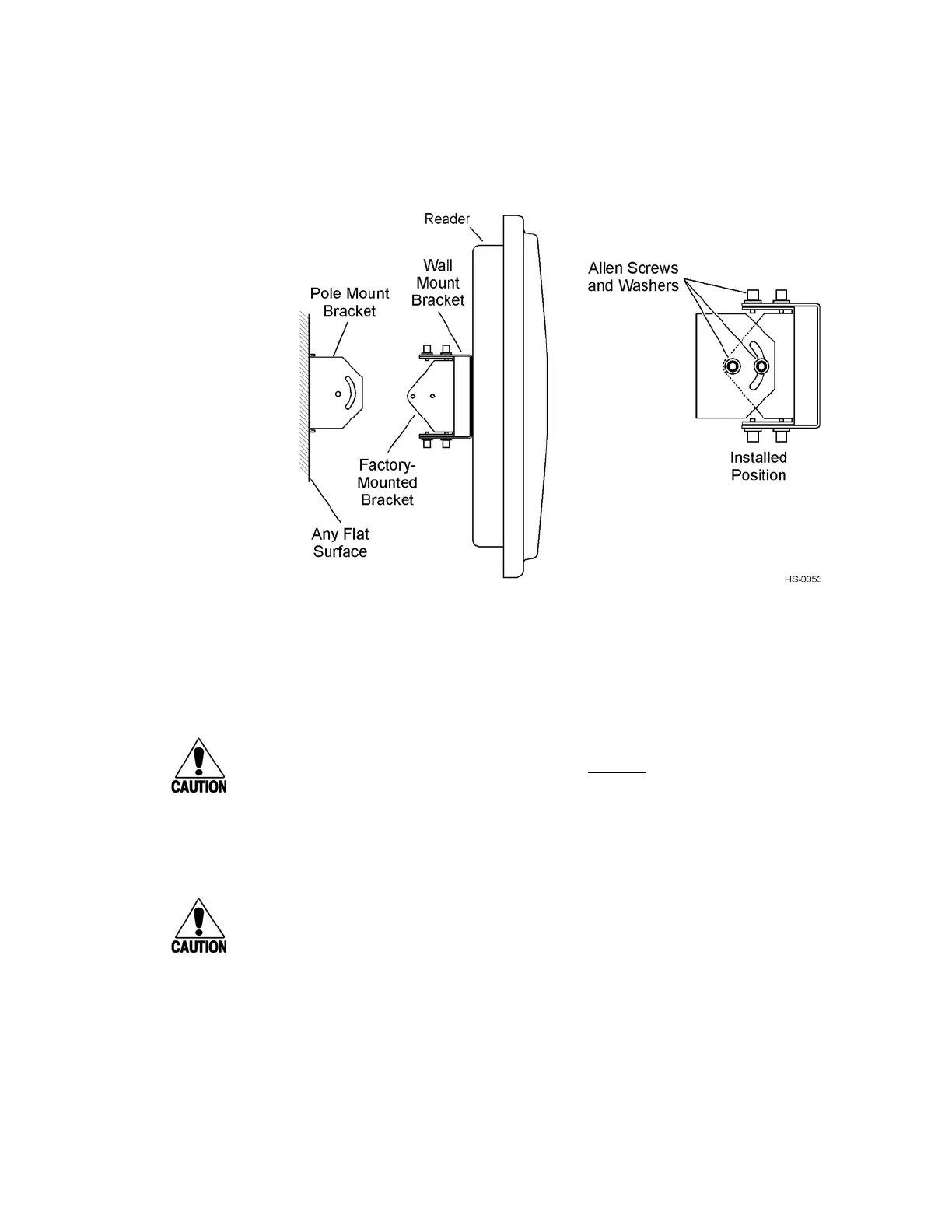

Figure 4-15 Connecting the Encompass 4 Assembly to Pole Mount Bracket
10. Adjust the assembly by pointing the Encompass 4 Reader to the middle of the
area where tags will be read and tighten all screws and straps slightly.
Note: Adjust the Encompas
s 4 Reader to provide the most direct line of sight to the
tags.
Caution
To ensure reliable reader operation, TransCore
strongly advises that you follow the
National Electric Code for lightning protection for the locale where you are install-
ing the Encompass 4 Reader.
After mounting the Encompass 4 Reader, you must connect it to a
dedicated 16 to 20V
AC or 16 to 28V DC power supply.
Caution
To avoid damage to the Encompass 4 Reader, you must connect the antenna before
ap
plying power to the reader.
