Encompass 4 Reader System Guide
3-20

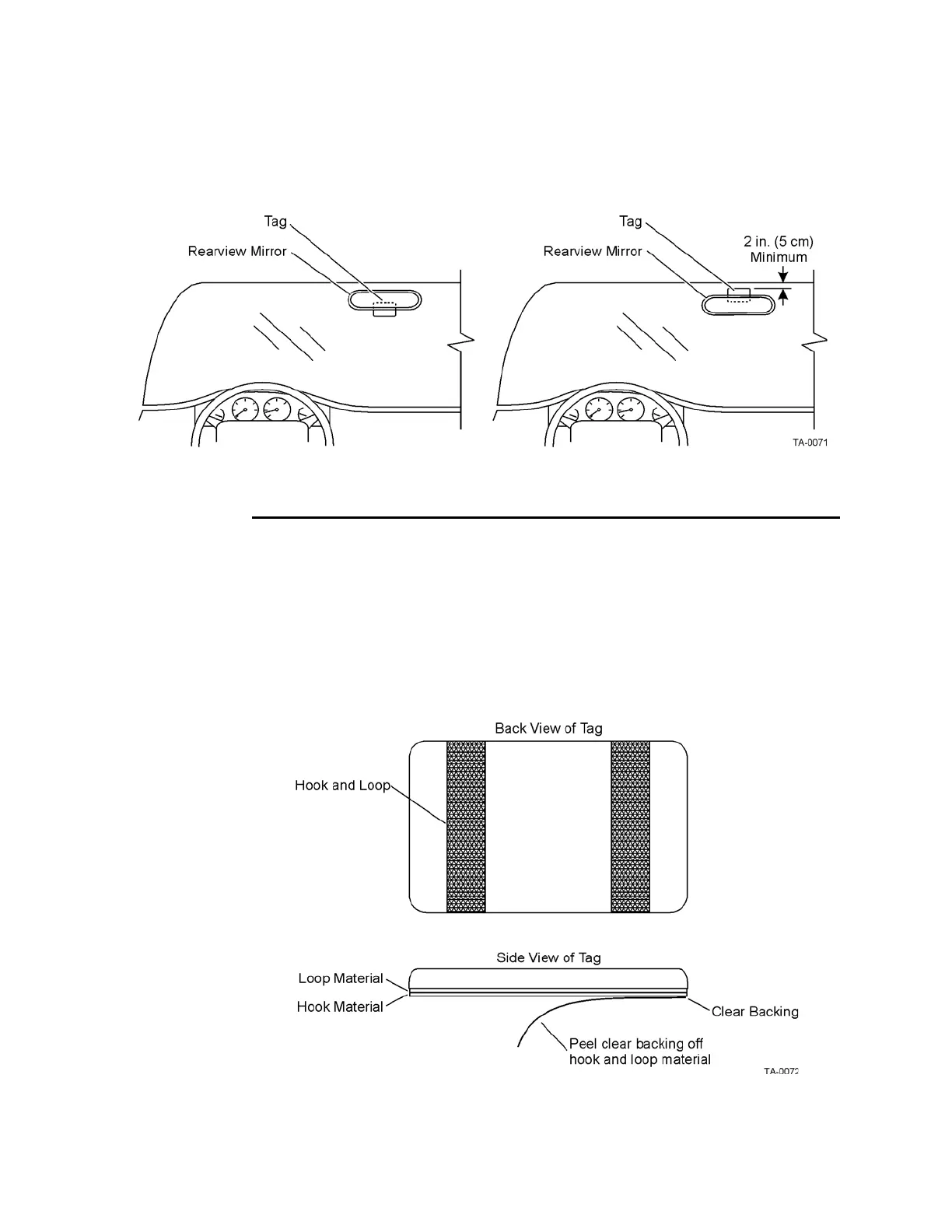

Figure 3-20 Upper Center Interior Windshield Tag Location
ATA Interior Tag Installation Procedures
Perform the following steps to install interior tags:
1. Clean the tag installation area on the interior surface of
the windshield with
rubbing alcohol.
2. Dry the area thoroughly using a clean, dry cloth.
3. Remove the clear backing from the two strips of hook-and-loop material on the
ba
ck of the tag (Figure 3-21) or from the double-sided tape.
Figure 3-21 Hook-and-Loop Material on Interior Tag
