Encompass 4 Reader System Guide
3-14

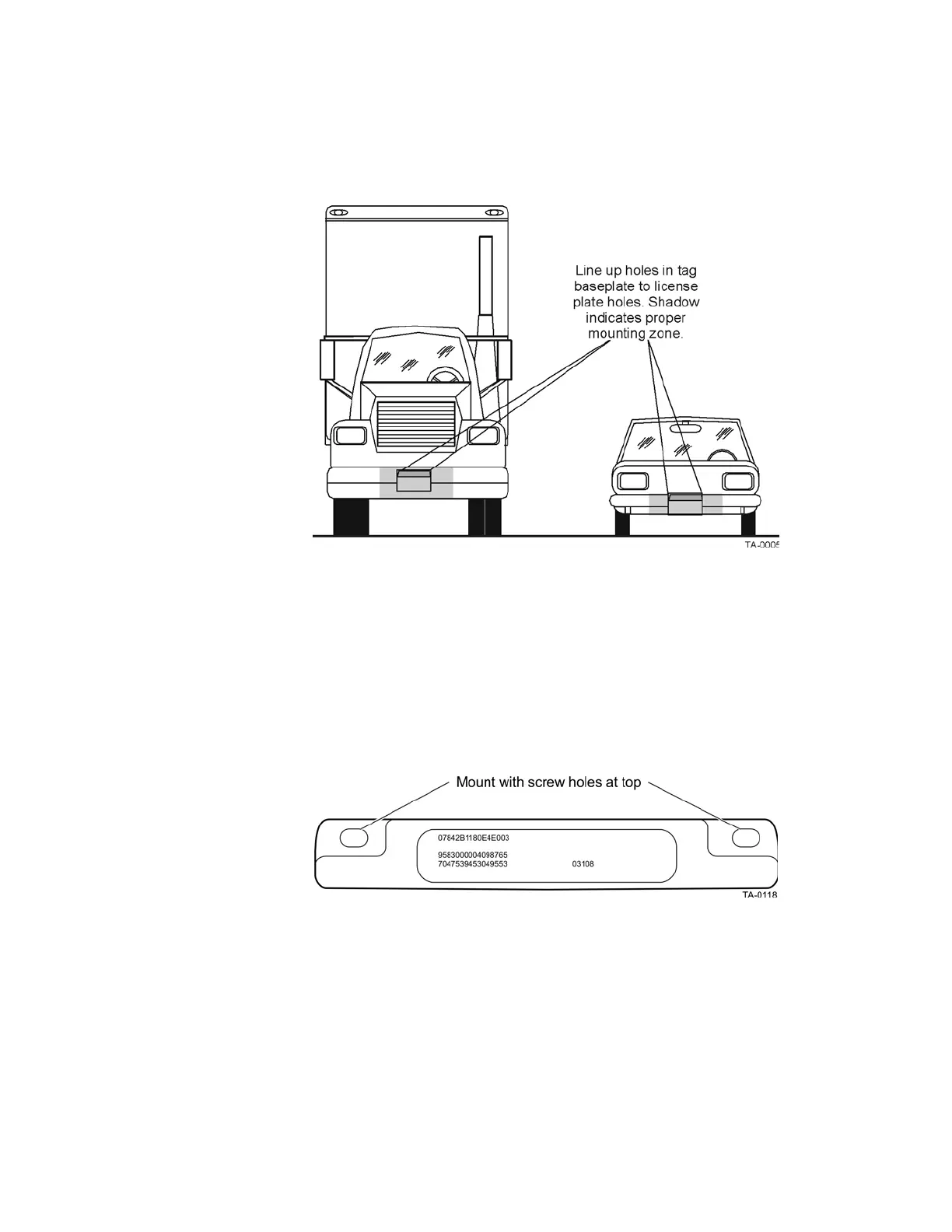

Figure 3-13 Correct Mounting Location for LPT
2. Position the LPT so that it is within 18 inches (46 cm) of the center of the front
bumper as shown by the shaded area in Figure 3-13. If your vehicle’s license
plate mounting area is more than 18 inches (46 cm) from the center, you may
ne
ed to select an alternate location to mount the tag. Contact your tag agency if
your vehicle requires an alternate mounting location for the LPT.
3. Hold the LPT so that the etched lettering is facing
you with the mounting holes to
the top as shown in Figure 3-14.
Figure 3-14 Correct Tag Orientation
4. Fasten the LPT to the bumper using the license plate mounting screws
(Figure 3-15). Install the LPT over the top area of the vehicle’s license plate if
your vehicle has a front license plate. If your state
does not require a front license
plate, install the LPT in the area where a license plate would normally be
mounted.
