Gate with Center Island Configuration
Figure 2-6 illustrates a typical gate application with the Encompass 4 Reader units
positioned on a center island to read tags mounted on
the inside windshield on the
driver’s side (United States). The readers are placed to allow time for the gate to open
so the vehicle can roll through without stopping while not allowing room for an
untagged vehicle to be between the vehicle being read and the gate.

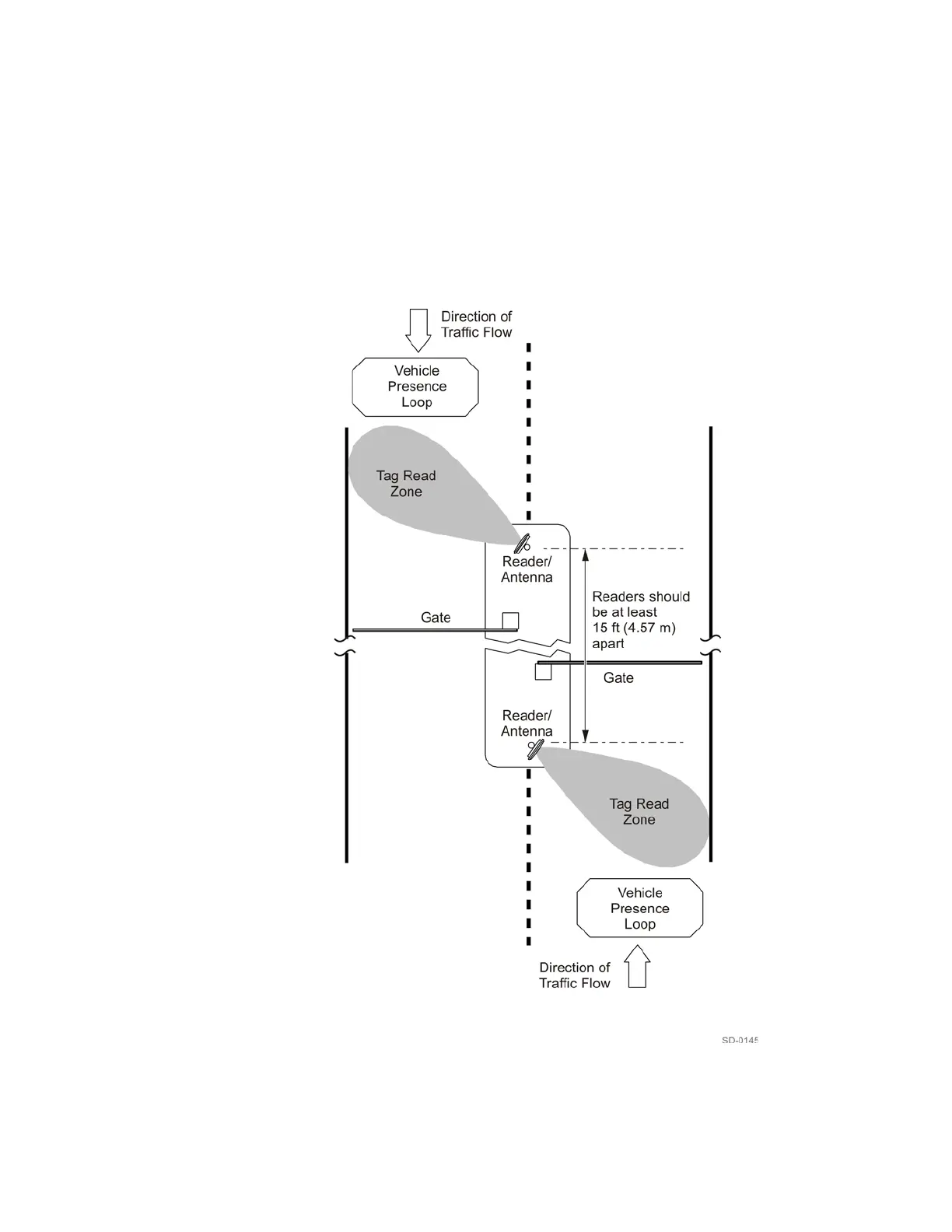

Figure 2-6 Gate Application with Center Island
