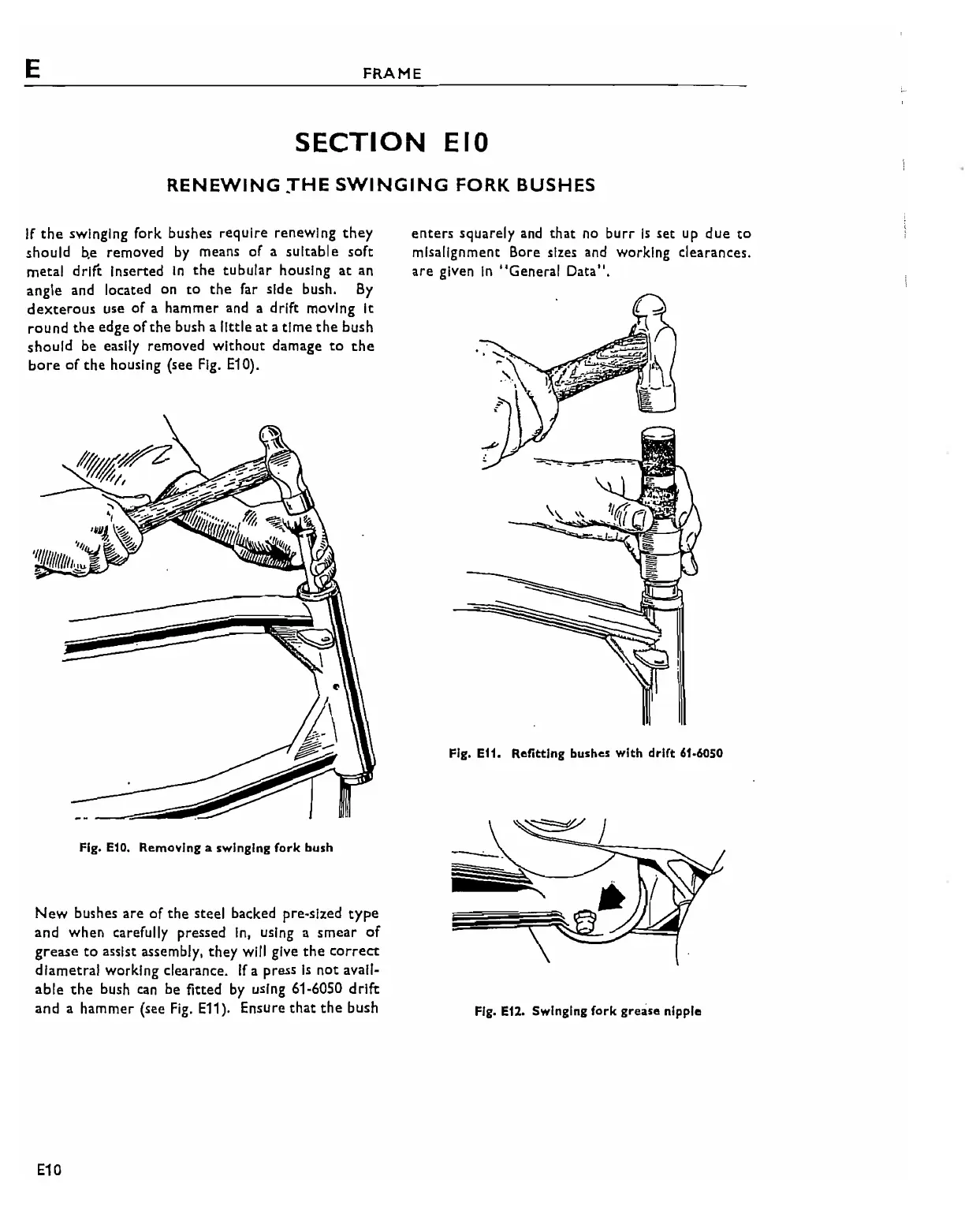

E
FRAME
SECTION
EIO
RENEWING
J"HE
SWINGING
FORK
BUSHES
If
the
swinging fork bushes require renewing
they
should
b.e
removed
by
means of a suitable soft
metal drl(t Inserted
In
the
tubular
housing
at
an
angle and located on
to
the
far side bush.
By
dexterous
use
of
a hammer and a drift moving It
round
the
edge
of
the
bush a little
at
a
time
the
bush
should
be easily removed
without
damage
to
the
bore
of
the
housing (see
Fig.
E10).
Fig.
E10.
RemovIng a swinging fork bush
New
bushes are
of
the
steel backed pre-sized
type
and when carefully pressed
In,
using a smear
of
grease
to
assist assembly, they will give
the
correct
dlametral working clearance.
If
a press
Is
not avail-
able
the
bush
can
be fitted
by
using 61-6050
drift
and a hammer (see
Fig.
E11).
Ensure
that
the
bush
E10
enters
squarely
and
that no
burr
Is
set up
due
to
misalignment Bore sizes and working clearances.
are given
In
IlGeneral Data",
\,
\'
Fig.
Ell.
Refitting bushes
with
drift
61.6050
~J
Fig.
E12.
Swinging fork grease nipple
